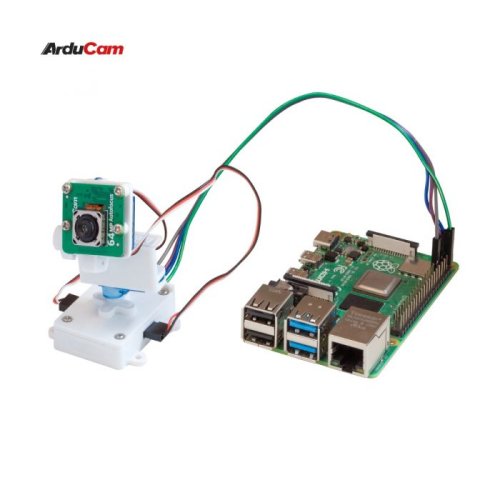

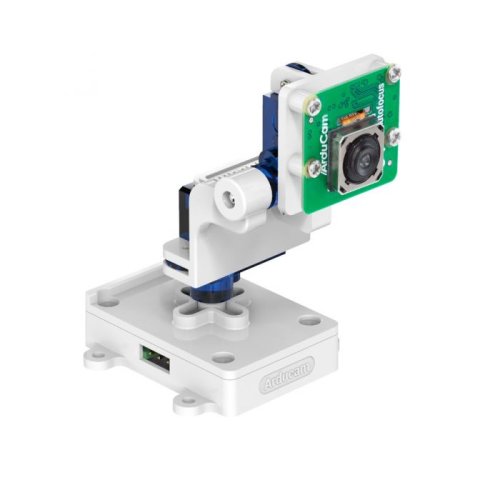

The most powerful pan-tilt camera kit ever made for Raspberry Pi. With our 64MP-AF camera, a handy PT system, and the help of OpenCV, you can build a mini face/movement tracking solution like this:

Features:

PTZ-capable: pan-tilt bracket with a camera that supports digital zooming.
64-megapixel: ultra high resolution for Pi.
Autofocus: AF/Manual/Continuous-AF out of the box.
Easy to use: compatible with the official software. (libcamera)
V1/V2 ready: bracket also supports any camera in v1/v2 form factors.

The camera itself works with most Pi models, older ones like Pi 2 or Pi 0 may suffer from performance drops. And the PT kit is also compatible with both the official V1/V2/HQ cameras and Arducam OV5647/IMX219/IMX477 series.

More about PTZ camera solutions

Specification:

Optical Size:

Type 1/1.7" 9.25 mm
Diagonal (7.4x5.55 mm)

Focus Type: Manual/Auto
Sensor Resolution: 9152 X 6944
Video Mode (on Raspberry Pi):

1080p30
720p60
640 X 480p60/90

Video Mode (Camera Module):

1280x720@120fps 1920x1080@60fps
2312x1736@30fps 3840x2160@20fps
4624x3472@10fps [email protected]

Color Filter: Quad Bayer Coding (QBC)
Supported Platforms (Full Resolution - 64MP): Pi 4B/CM4
Supported Platforms (Superpixel Resolution - 16MP): Pi 2/3/CM3/Zero W/Zero 2 W
Raspberry Pi OS: Bullseye (32-bit/64-bit) 01/28/22 or later releases
Focus: 8cm-INF
Focal ratio (F-Stop): F1.8
Focal length: 5.1mm
View Angle: 84 Degrees (Diagonal)
Dimensions: 25mm x 24mm
Shutter Type: Rolling
Output Format: JPEG/YUV/RGB/RAW10

Digital Servo

Torque: 0.6 kg/cm at 3.6V, 0.8 kg/cm at 4.8V
Operating Speed: 0.13sec/60° at 3.6V, 0.09sec/60° at 4.8V
Operating Voltage: 3.6v～4.8v
Operating Current: ＜350mA
Dead Band: 3 usec

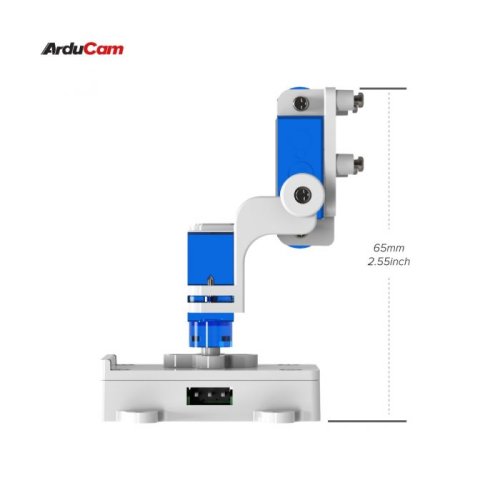

Dimension: 20mm x 8.75mm x 22mm

Customized Control Board

PWM resolution: 12-bit

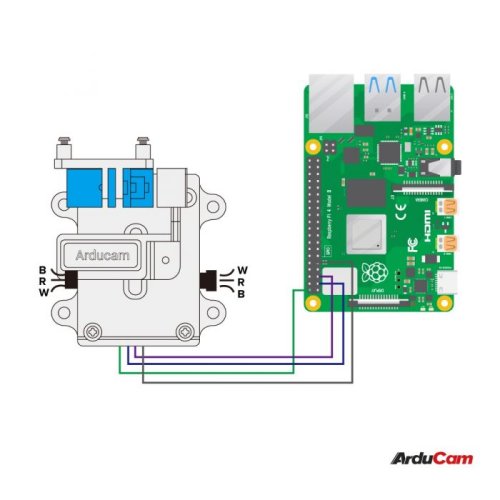

Communication interface: I2C
Operating voltage: 3V-5V
Dimension: 38mm x 28mm

Note

To use the camera on Pi Zero and 2 W, you need this.
The arducam 64MP cameras can only get maximum resolution and video streaming on Pi4 and CM4 platforms. The resolution and video streaming of the camera will be limited on other Raspberry Pi platforms.

Documentation

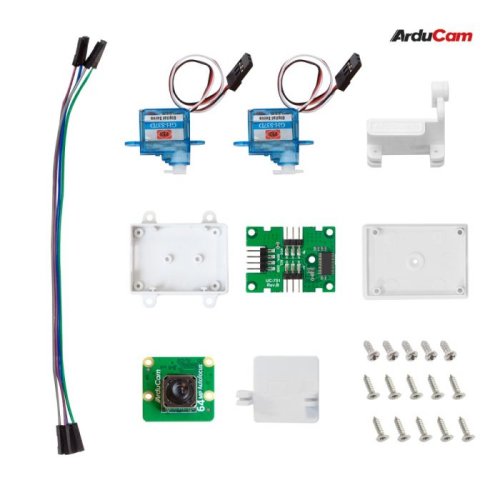

Package Includes:
