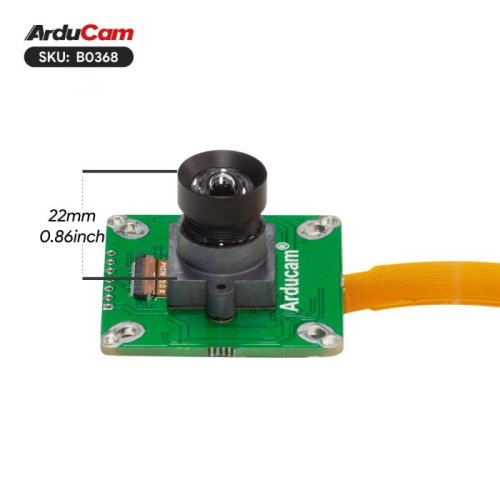

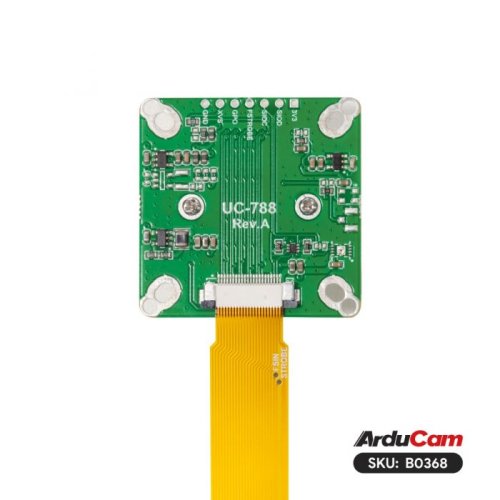

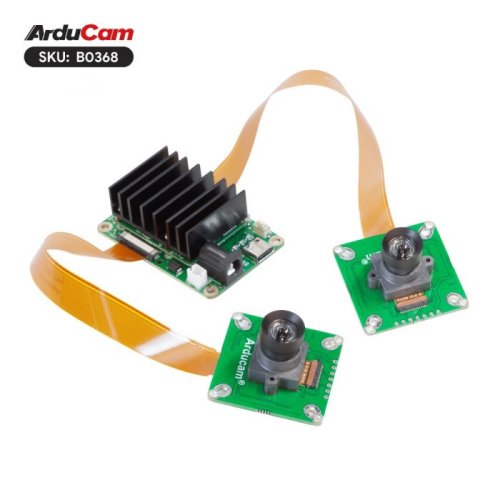

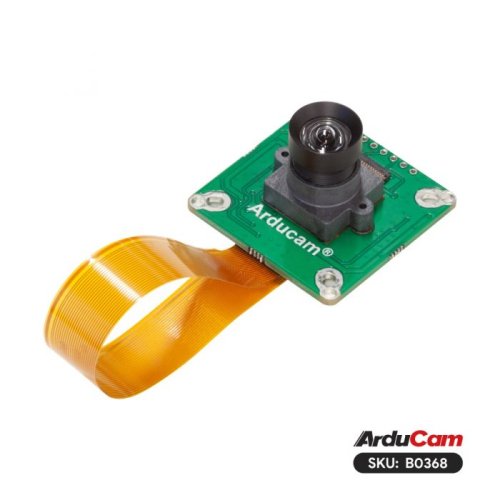

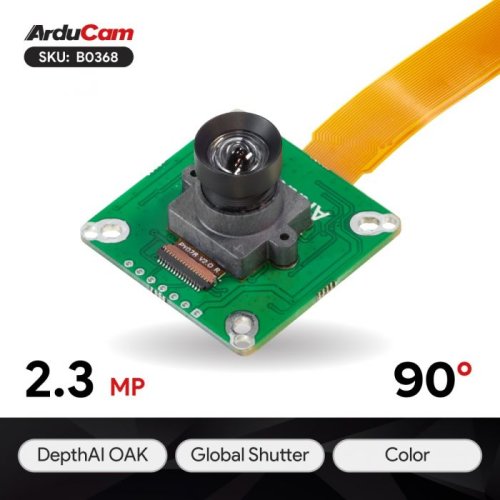

The Arducam 2.3MP AR0234 Global Shutter Color MIPI camera module is designed for DepthAI OAK,

  • Supported DeptAI version: BW1098FFC R0M0E0

Specification :

  • Sensor: Color global shutter AR0234
  • Pixel Size: 3 μm x 3 μm
  • Active array size: 1920x 1200
  • Optical Size: 1/2.6 inch
  • Focusing Range: 20cm ~ infinite
  • IR Sensitive: With IR filter
  • Output interface: MIPI 2-Lane
  • Output formats: RAW8/RAW10
  • Maximum frame rate: 1920x 1200@120 fps

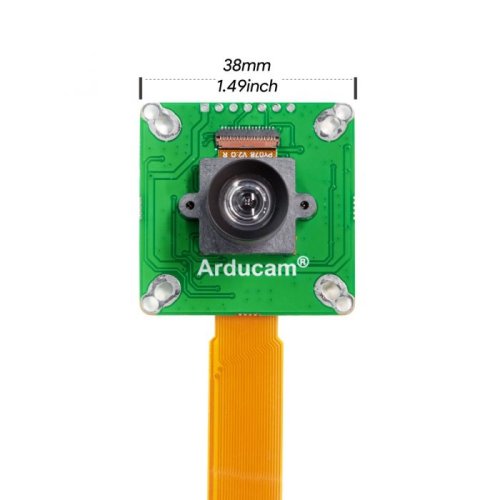

  • Board Size: 38mm x 38mm
  • Lens: Low distortion M12 lens (Part Number: M25360H06S)
  • EFL: 3.6mm
  • F.N: 3.0
  • HFOV: 90 Deg

Documents :

Package Includes :

  • 1 x Arducam 2.3MP AR0234 Global shutter Color MIPI camera module 22pin for DepthAI OAK
  • 1 x 150mm 20pin-26pin FPC cable

Write a review

Please login or register to review

Arducam B0368 AR0234 Color Global Shutter Camera Module For DepthAI OAK

  • Brand: ArduCAM
  • Product Code:NR-ArdC-AR0234-Camera-DepthAI-OAK
  • Reward Points:95
  • Availability:In Stock
  • रo 9,130.00
  • रo 7,988.00

  • Price in reward points:9510

  • 2 or more रo 9,090.00
  • 3 or more रo 9,055.00
  • 7 or more रo 9,015.00
  • 15 or more रo 8,975.00
