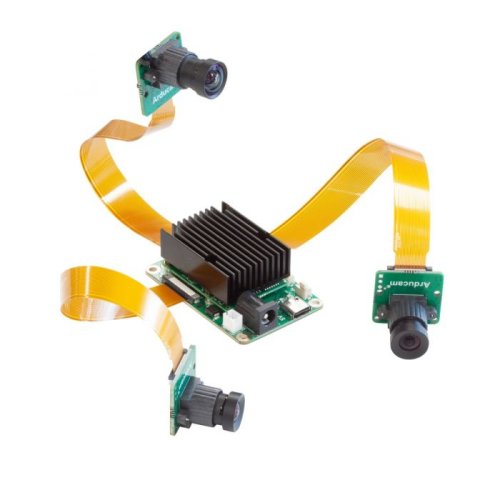

The OAK USB3 bundle kit includes OAK-FFC-3P (DM1090FFC_R0M0E0) DepthAI OAK USB3 Edition with one 12MP IMX477 camera module and two 1MP OV9282 MONO camera modules.
- The advantage of this kit is that you can change the baseline for each camera flexibly, and the lens can be replaced with any FOV(field of view) you want.
- This repository contains open hardware designed by Luxonis and is meant to be used as a baseboard for the Luxonis BW1099 DepthAI SoM. The OAK-FFC-3P (DM1090FFC) baseboard has three FFC interfaces which allow for two 2-lane MIPI camera modules i.e. DM0250TG (stereo pair) and one DM0249 RGB camera module. There is also a chance to connect three 2-lane MIPI camera modules i.e. DM0250TG if the DM0249 RGB camera module is not required.
- In addition, IMU over SPI support was also added to the OAK-FFC-3P (DM1090FFC).
Note: Only revision R1M1E1 and newer camera modules can be connected to the OAK-FFC-3P (DM1090FFC). With OAK-FFC-3P (DM1090FFC)we gained support for the 22-pin RPi camera interface. For that, you will need an FFC from Arducam, which converts 26-pin Luxonis camera pinout to 22 pin RPi camera pinout.

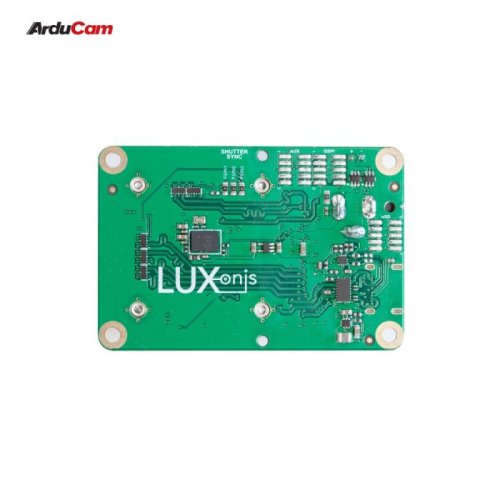

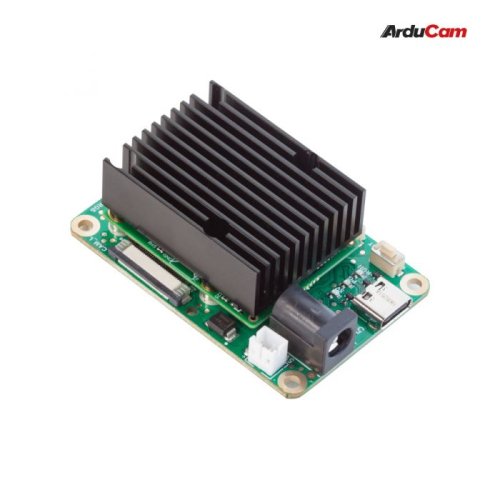

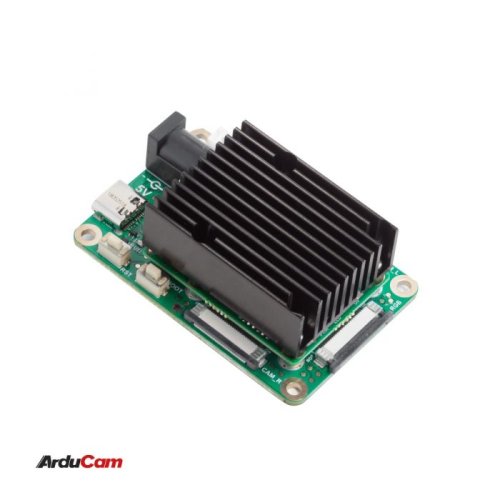

OAK-FFC-3P (DM1090FFC_R0M0E0) DepthAI OAK USB3 Edition
- 3x DM0250TG_R1M1E1 mono camera module interfaces or
- 2x DM0250TG_R1M1E1 and 1x DM0249_R1M1E1 RGB camera module interface
- 5V power input via barrel jack
- USB 3.1 Gen 1 Type-C
- Interface for Luxnois BW1099 DepthAI SoM
- Pads for DepthAI SoM 1.8V SPI
- Pads for DepthAI SoM 3.3V SDIO
- Pads for DepthAI SoM 1.8V Aux Signals (I2C, UART, GPIO)
- 5V Fan OR USB Type-C
- Design files produced with Altium Designer 20

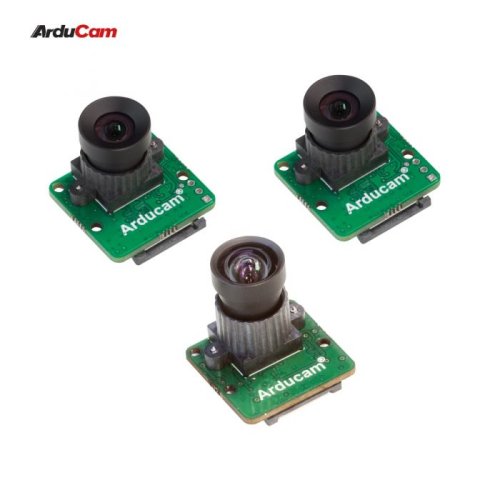

IMX477 HQ camera module
- Sensor: IMX477 12.3MP
- Optical Format: 1/2.3″ (diagonal 7.857mm)
- Resolution: 4056(H) x 3040(V)
- Pixel Size: 1.55um x 1.55um
- IR Sensitivity: With IR filter, sensitive to Visible light
- Interface: 4-lane MIPI CSI-2
- Maximum image transfer rate: 4K@60 fps
- Default Lens Mount: 75° (H) M12 Mount(SKU: LN053)
- Camera board Size: 24mm×25mm
OV9282 Global shutter Mono camera module
- Sensor: Mono global shutter OV9282 1MP
- Optical Format: 1/4 ″
- Resolution: 1280(H) x 800(V)
- Pixel Size: 3um x 3um
- IR Sensitivity: With IR filter, sensitive to Visible light
- Interface: 2-lane
- Maximum image transfer rate: 1280 x 800@120 fps
- Default Lens Mount: 75° (H) M12 Mount(SKU: LN013)
- Camera board Size: 24mm×25mm

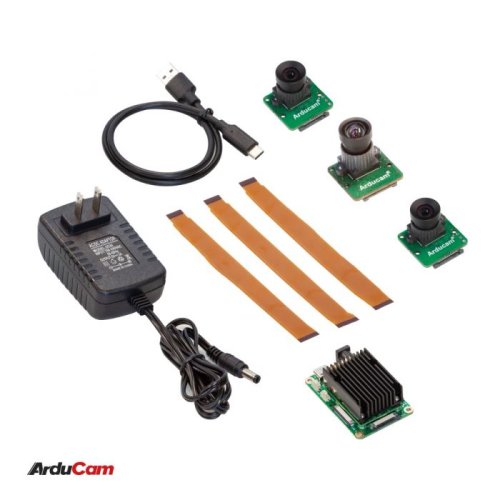

Package Includes :
- 1 x DepthAI OAK-FFC-3P
- 1 x 12.3MP IMX477 color MIPI camera module for DepthAI OAK-FFC-3P
- 2 x 1MP OV9282 Global shutter Mono MIPI camera module for DepthAI OAK-FFC-3P
- 1 x USB cable
- 1 x Charger
- 3 x 150mm 22pin-26pin camera cable
Arducam B0360 12MP IMX477 camera and 2*1MP OV9282 Monochrome camera with OAK-FFC-3P OAK USB3 Edition for DepthAI
- Brand: ArduCAM
- Product Code:NR-ArdC-12MP-IMX477-camera-OV9282-OAK
- Reward Points:353
- Availability:In Stock
- रo 33,624.00
-
रo 29,670.00
- Price in reward points:35320
-
- 2 or more रo 33,483.00
- 4 or more रo 33,341.00
