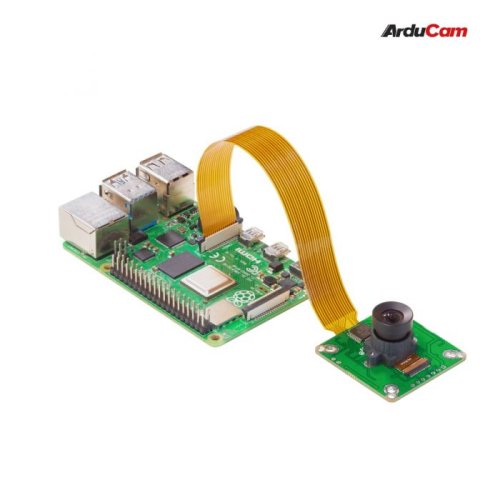

Arducam Pivariety is a Raspberry Pi camera solution to take the advantage of using its hardware ISP functions. For a long time, Raspberry Pi users are limited to use the closed-source official supported camera driver and camera modules (V1/V2/HQ). Now Arducam made it possible to provide well-tuned ISP for Pivariety camera modules with Auto Exposure, Auto White Balance, Auto Gain Control, Lens Shading Correction, etc.

Specifications:

Image Sensor: 2 MP OG02B10
Resolution: 1600H×1300V
Pixel Size: 3μm(H)×3μm(V)
Optical Format: 1/2.9″
Lens Spec: M12 lens mount, focal length of 2.8 mm±5%, F/2.8±5%, 110 degrees horizontal field of view (HFoV)
IR Sensitivity: Integral IR filter, visible light only
Frame Rate: 1600×1300 at 60fps; 1600×1080 at 80fps; 1280×720 at 120fps
Sensor Output Format: RAW10, RAW8
ISP Output Format: The output image format of JPG, YUV420, RAW, DNG; The output video format of MJPEG, H.264
Interface Type: 2-Lane MIPI

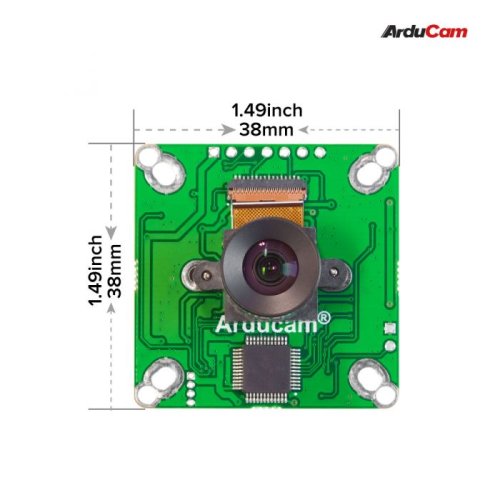

Board Size: 38mm×38mm

Documents :

Package Includes:

1 x Arducam 2MP OG02B10 Color Camera Module

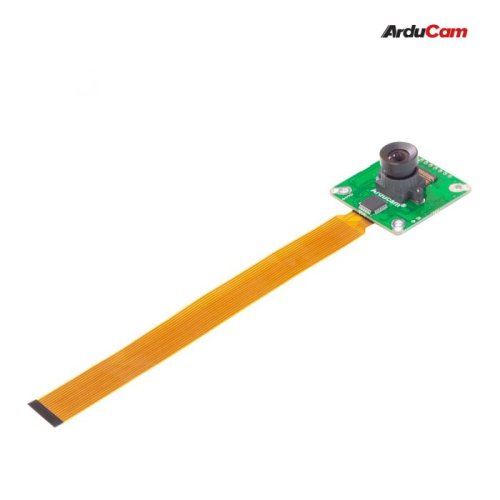

1 x 150mm 15pin to 22pin FPC cable

Sensor Specifications
Sensor type	2MP OG02B10
Frames per Second	1600×1300 at 60fps; 1600×1080 at 80fps; 1280×720 at 120fps
Pixel Size / Density	3μm(H)×3μm(V)
Resolution	1600H×1300V
Lens Specifications
Focal Length	2.8 mm±5%
Optical Format	1/2.9 inch
Field of View	110 degrees horizontal
Lens Mount	M12
Physical Attributes
Dimensions	Board: 40 mm × 40 mm
Additional Information
Warranty	90 days

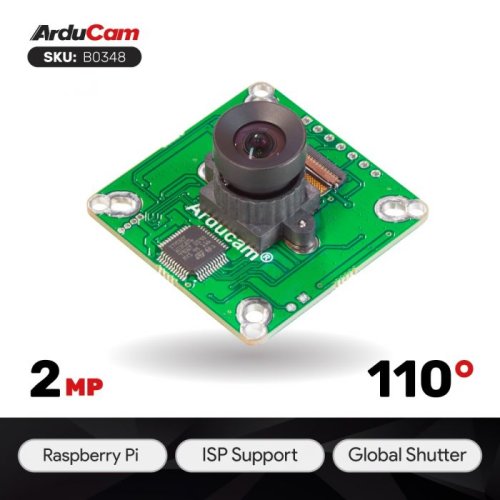

Arducam B0348 2MP Global Shutter OG02B10 Color Camera Modules Pivariety

Brand: ArduCAM
Product Code:ArdC-B0348-Camera
Reward Points:104
Availability:Out Of Stock

रo 10,042.00
रo 8,786.00
Price in reward points:10460
3 or more रo 9,958.00
6 or more रo 10,000.00
15 or more रo 9,874.00

Qty

0 reviews / Write a review
