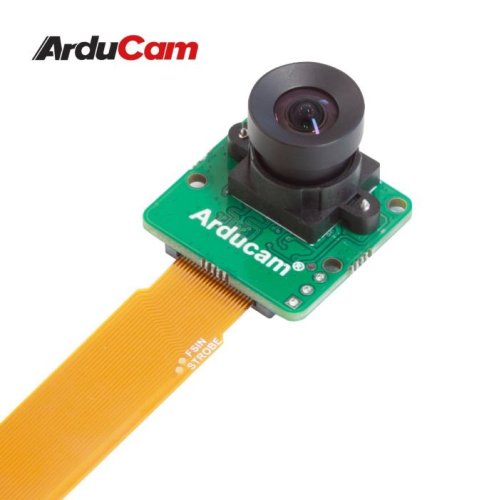

The Arducam 1MP OV9782 Global shutter color MIPI camera module is designed for DepthAI AI Kit.
- Supported DeptAI version: DM1090FFC
Specification :
- Sensor: Color global shutter OV9782
- Pixel Size: 3 μm x 3 μm
- Active array size: 1280 x 800
- Optical Size: 1/4 inch
- Focusing Range: 20cm ~ infinite
- IR Sensitive: With IR filter, sensitive to Visible light
- Output interface: MIPI 2-Lane
- Output formats: RAW8/RAW10
- Maximum image transfer rate: 1280 x 800@120 fps
- Board Size: 24mm x 25mm
- Lens: Default low distortion M12 lens (Part Number: M27280M07S)
- EFL: 2.8mm
- F.N: 2.8
- HFOV: 75 Deg
Package Includes :

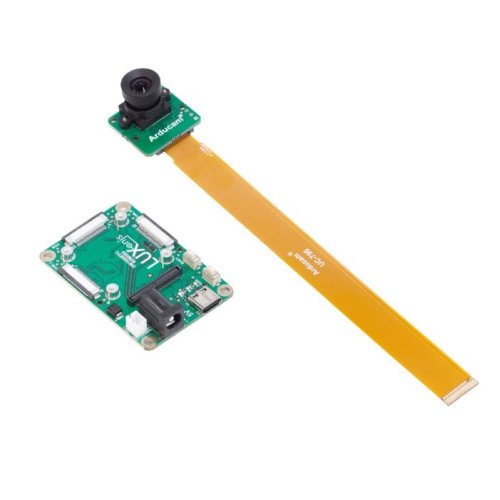

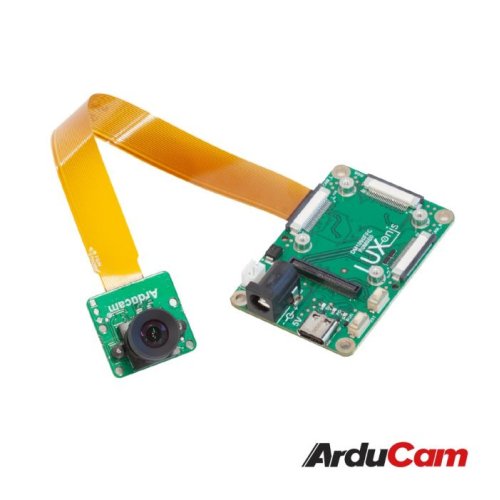

- 1 x Arducam 1MP OV9782 Global shutter color MIPI camera module 22pin for DepthAI
- 1 x 150mm 22pin to 26pin FPC cable
Arducam B0335 for DepthAI DM1090FFC 1MP OV9782 Global shutter color MIPI camera module 22pin
- Brand: ArduCAM
- Product Code:ArdC-DepthAI-DM1090FFC-1MP-OV9782
- Reward Points:52
- Availability:In Stock
- रo 5,020.00
-
रo 4,393.00
- Price in reward points:5230
-
- 3 or more रo 5,000.00
- 5 or more रo 4,980.00
- 13 or more रo 4,960.00
- 25 or more रo 4,940.00
