Arducam Pivariety is a Raspberry Pi camera solution to take the advantage of using its hardware ISP functions. For a long time, Raspberry Pi users are limited to use the closed-source official supported camera driver and camera modules (V1/V2/HQ). Now Arducam made it possible to provide well-tuned ISP for Pivariety camera modules with Auto Exposure, Auto White Balance, Auto Gain Control, Lens Shading Correction, etc.

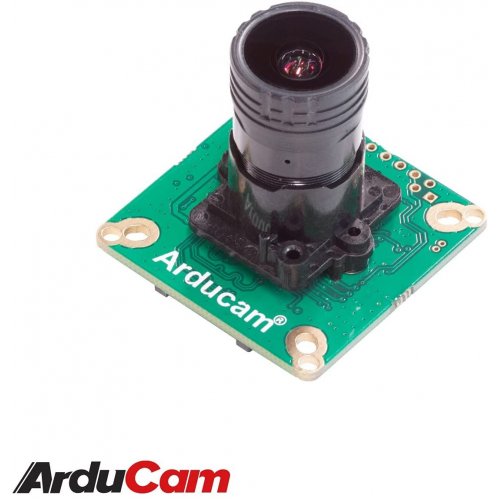

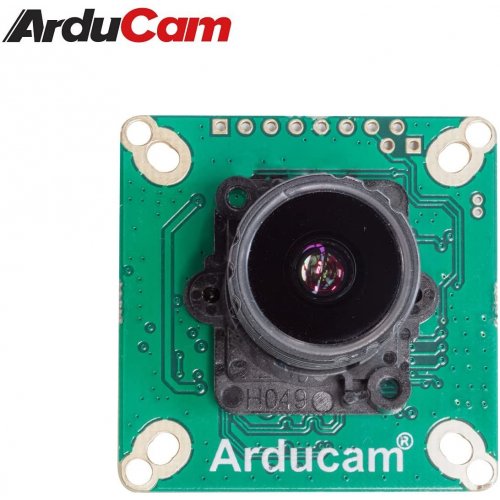

This B0333 is a new member of Arducam Pivariety series, which adopts a 1/2.8Inch 2MP STARVIS sensor IMX462, assembled with a wide aperture M16 lens, so as to can get much more decent image quality than the Official cameras in low light conditions.

Specifications:

Image Sensor	Sony STARVIS IMX462
Optical Size	1/2.8”
Resolution	2MP 1920×1080
Max Frame Rate	5-60fps@1080P
Pixel Size	2.9 μm x 2.9 μm
Minimum illumination	0.01 Lux
Shutter Type	Rolling Shutter
Color Filter Array	Bayer RGB

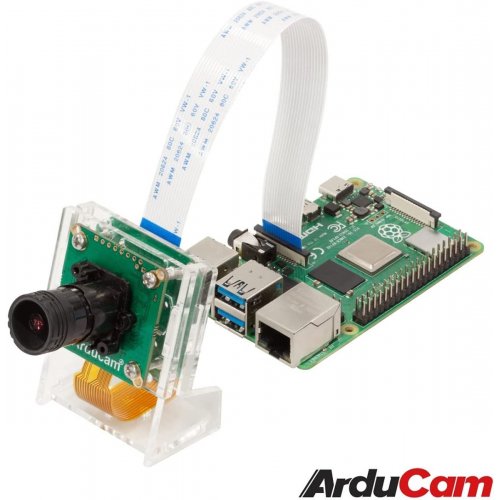

Supported Platform	Pi 4/3/Zero/CM3/CM4
Focal Length	4mm±5%
F.NO	0.95±5%
Lens Type	M16 Lens
Focus Type	Manual Focus
Field of View(FOV)	92°(H)
IR Sensitivity	Integral IR-cut filter
Output Format	RAW10
ISP Output Format	JPG, YUV420, RAW, DNG; MJPEG, H.264

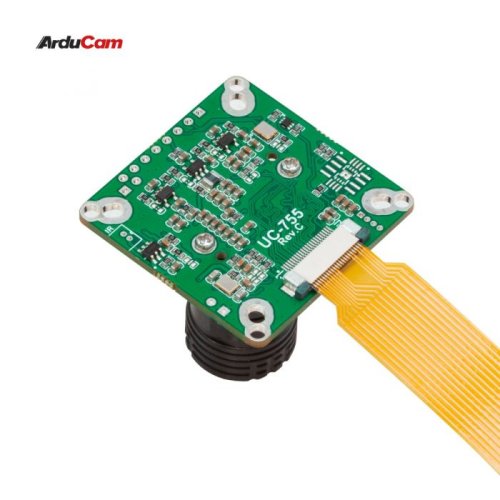

Output Interface	2-lane MIPI serial output
Camera Board Size	38mm x 38mm
Hole Pitch	Compatible with 34mm×34mm, 28mm×28mm

Applications:

• Surveillance cameras
• FA cameras
• Industrial cameras
• Autonomous mobile robots, UGV/UAV, ADAS, etc.

Note:

• Raspberry Pi board is not included in the package
• Pivariety Driver can only work with libcamera instead of raspistill/raspivid application
• Please Note that ISP function is not supported on NVIDIA Jetson platforms
• Due to the limitation of the platform and driver, the output format of the camera is changed from the highest RAW12 output to RAW10.

Dimension:

ADDITIONAL INFORMATION

The spectral transmission properties for the Bayer filter on the IMX462 sensor

Documentations:

• Assembly Guide

• Acrylic Bracket Assembly Guide

Package Includes:

• 1 x Arducam 2MP IMX462 ISP Camera Module
• 1 x 150mm 15pin 1.0mm to 22pin 0.5mm pitch FPC cable

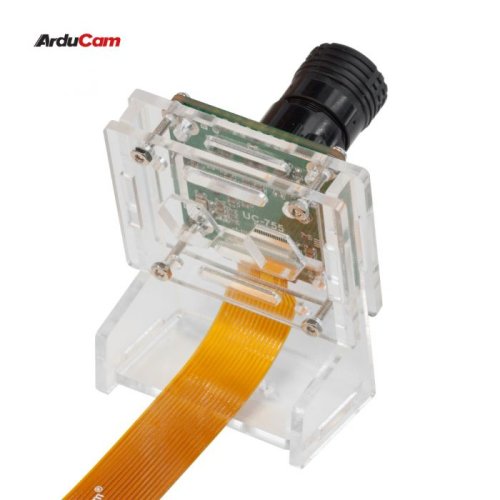

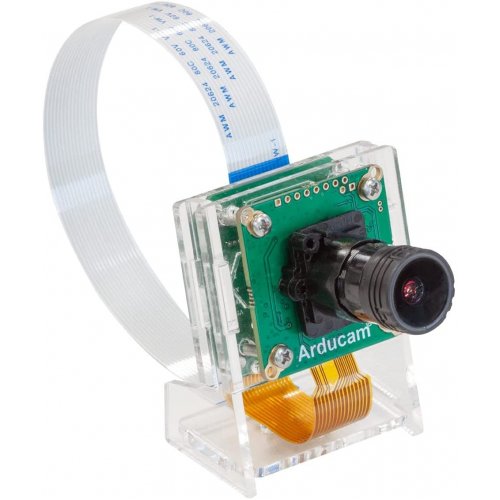

• 1 x acrylic case kit with assembly accessories

Write a review

Please login or register to review

Arducam B0333 for Raspberry Pi Ultra Low Light Camera, 1080P HD Wide Angle Pivariety Camera Module

• Brand: ArduCAM
• Product Code:ArdC-B0333-RPi-Camera
• Reward Points:57
• Availability:In Stock

• रo 5,477.00

• रo 4,793.00

• Price in reward points:5705

• ---

• 5 or more रo 5,432.00
• 12 or more रo 5,454.00
• 25 or more रo 5,386.00
