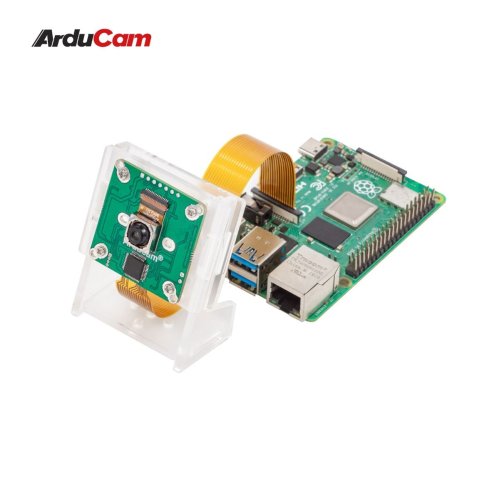

Arducam Pivariety is a Raspberry Pi camera solution to take the advantage of using its hardware ISP functions. Using Arducam Pivariety camera modules, users can get better performance and a wider variety of camera, lens options. For a long time, Raspberry Pi users are limited to use the closed-source official supported camera driver and camera modules (V1/V2/HQ). Now Arducam made it possible to provide well-tuned ISP for Pivariety camera modules with Auto Exposure, Auto White White Balance, Auto Gain Control, Lens Shading Correction, etc.
Specifications:

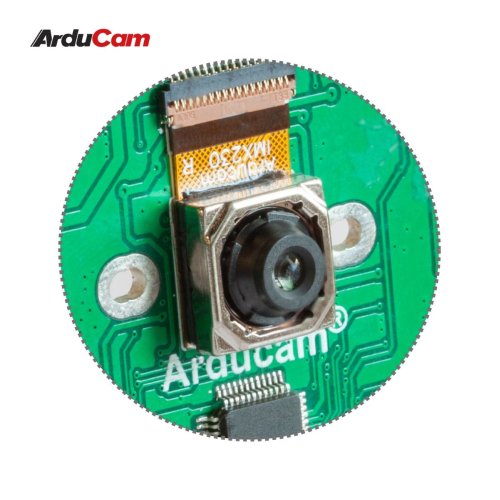

Image Sensor | 21MP IMX230 |
Optical Size | 1/2.3” |
Resolution | 21MP 5344×4016 |
Frame Rates | 5344×4012@9 fps, 3840×2160@10 fps, 2592×1944@15 fps, 2656×2004@30 fps, 1920×1080@30 fps, 1280×960@120 fps, 1280×720@120 fps, 640×480@120 fps |
Pixel Size | 1.12 μm x 1.12 μm |
Focal Length | 4.77mm |
F.NO | 1.75±5% |
Focus Type | Motorized focus, programmable focus control |
Field of View(FOV) | 64°(H) |
IR Sensitivity | Integral IR-cut filter, visible light only |
Output Format | RAW10 |
ISP Output Format | JPG, YUV420, RAW, DNG; MJPEG, H.264 |
Output Interface | 2-lane MIPI serial output |

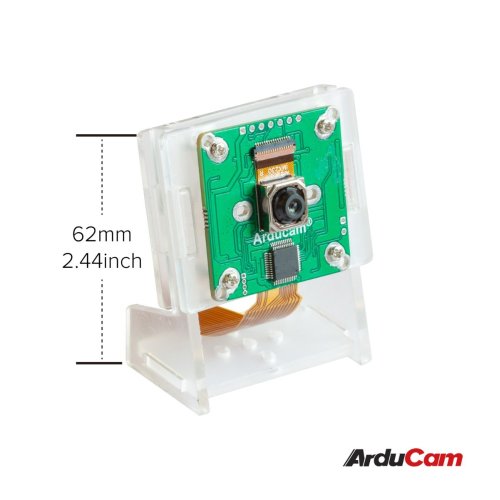

Camera Board Size | 38mm x 38mm |

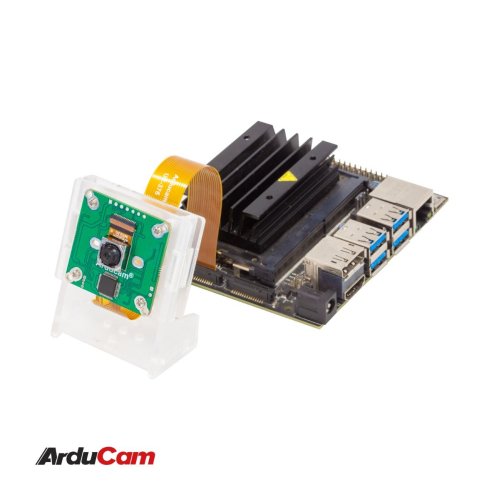

Note: This camera is released for the official NVIDIA Jetson Developer Kit, and it does not guarantee to support other third-party boards.
Applications:
- UAV/Drones/FPV camera
- Machine Vision
- Robotics
- IoT
- Face Recognition
- Defect Detection
Documentations:
- Getting started with Arducam IMX230 camera
- Get Start with Arducam Jetvariety Camera on NVIDIA Jetson
- Quick Start Guide for Arducam Motorized Focus Camera on NVIDIA Jetson
- How to build the Raspberry Pi Kernal Driver
- User Guide
- Acrylic Bracket Assembly Guide
Package Includes:

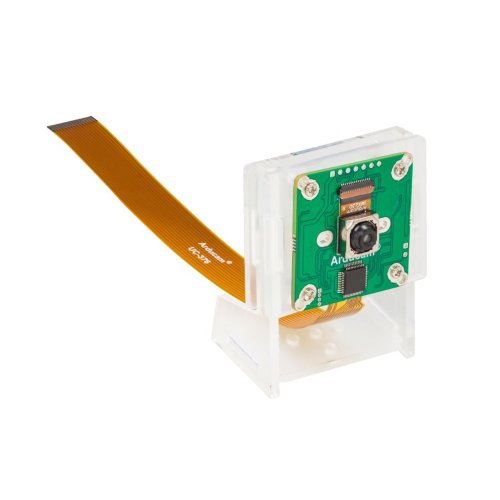

- 1 x Arducam 21MP IMX230 ISP Camera Module
- 1 x 150mm 15pin 1.0mm to 22pin 0.5mm pitch FPC cable
- 1 x 150mm 22pin 0.5mm to 22pin 0.5mm pitch FPC cable

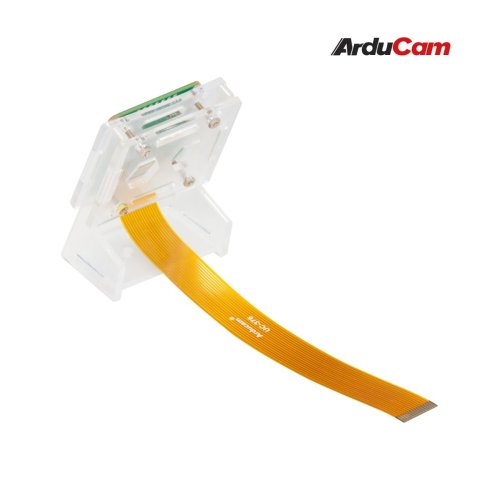

- 1 x acrylic case kit with assembly accessories
Sensor Specifications | |
Sensor type | IMX230 |
Frames per Second | 5344×4012@9 fps, 3840×2160@10 fps, 2592×1944@15 fps, 2656×2004@30 fps, 1920×1080@30 fps, 1280×960@120 fps, 1280×720@120 fps, 640×480@120 fps |
Pixel Size / Density | 1.12um x 1.12um |
Lens Specifications | |
Focal Length | 4.77mm |
Field of View | horizontal 64deg |
Optical Size | 1/2.4inch |
Arducam B0324 Pivariety 21MP IMX230 Color Camera Module
- Brand: ArduCAM
- Product Code:ArdC-B0324-Pivariety-21MP-IMX230
- Reward Points:82
- Availability:In Stock
- रo 7,825.00
-
रo 6,847.00
- Price in reward points:8151
-
- 3 or more रo 7,759.00
- 10 or more रo 7,792.00
- 15 or more रo 7,964.00
Related Products
Tags: Arducam, IMX230, 21MP, Raspberry Pi, Camera, Nvidia Jetson
