IMX477 camera modules have the high resolution. But traditional IMX477 cameras generally have larger camera boards and larger lenses. In order to make the IMX477 camera more flexible and space-saving, we have developed this camera based on the IMX477M image sensor. The IMX477M and IMX477 have exactly the same optical size and pixels, and the frame rate at different resolutions is also the same. We equipped a 1/2.3 inch 6p lens on this basis. The camera board is about 24x25mm, which is the size of the Raspberry Pi v1/v2 camera board. Through the specially equipped lens and IMX477M sensor, we have achieved the compatibility of high pixel and tiny size .

Applications:

  • DSLR Camera Control
  • Time-lapse Machine
  • Security System
  • Smart Video Doorbell
  • Face Recognition
  • Instant (Polaroid-Style) Camera, etc.

Specifications:

Image Sensor Sony IMX477
Optical Format 1/2.3''(diagonal 7.857mm)
Resolution 12.3MP
Active Pixels 4072(H)x3176(V)
Pixel Size 1.55um x 1.55um
Frame Rates 4072x3176@30fps, 1920x1080@60fps, 480x640@90fps
Shutter Type Rolling Shutter
Interface 2-lane MIPI CSI-2
Lens Type 1/2.3inch 6p
Lens Focus Length 2.75mm
F.NO 2.8/±5%
Distortion <-14.6%
Focus Type Fixed Focus
Field of View(FOV) 120°(D)
IR Sensitivity Integral IR-cut filter, visible light only
Camera Board Size 24mm x 25mm
Peak Current 300mA

Note:

  • Raspberry Pi board is not included in the package
  • This camera module supports the latest Raspberry Pi OS Bullseye (Jan 28th, 2022 and later) and libcamera apps, for the previous Raspberry Pi OS (Legacy) users, contact us at [email protected]

Documentation:

Package Includes:

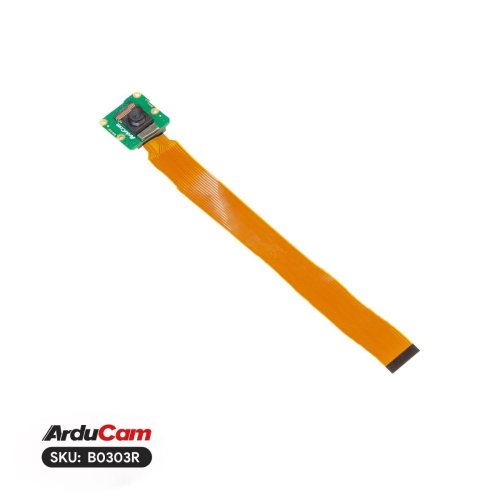

  • 1 x 12.9MP IMX477M Camera Module for Raspberry Pi
  • 1 x 150mm 15pin to 22pin flex cable

Write a review

Please login or register to review

Arducam B0303R 12.3MP IMX477M MINI Wide Angle Camera Module for Raspberry Pi

  • Brand: ArduCAM
  • Product Code:NR-ArdC-12MP-IMX477M-Wide-Angle-Camera
  • Reward Points:38
  • Availability:In Stock
  • रo 3,651.00
  • रo 3,195.00

  • Price in reward points:3804

  • 4 or more रo 3,636.00
  • 7 or more रo 3,621.00
  • 18 or more रo 3,606.00
  • 36 or more रo 3,591.00
