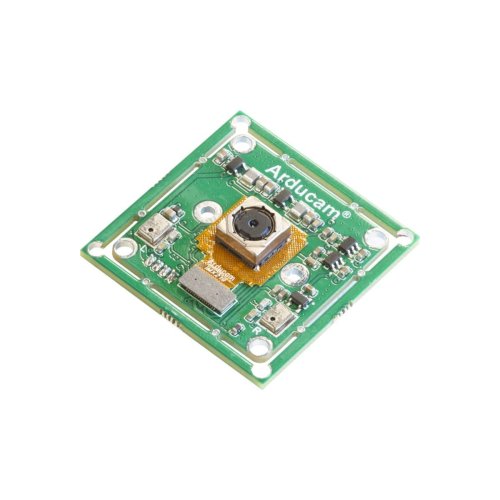

This camera module is based on the 1/4" IMX219 image sensor. It is a UVC compliant, autofocus USB 2.0 camera.

• No longer be anxious about installing the driver! The native UVC drivers of Windows, Linux and Mac shall be compatible with this camera so that it does not require extra drivers to be installed.
• This 8MP IMX219 high resolution color CMOS sensor and the autofocus feature make it can be widely used in the home surveillance system, monitoring 3D Printer, object recognition and tracking, or other machine vision application.

Features:

• More than HD: This camera adopts 8MP IMX219 sensor for sharp image and accurate color reproduction, Max. still resolution 3264H x 2448V.
• Autofocus: Shoot objects in millimeter level and in the distance on the same camera, automatically controlled without lens adjustment tool, closer and easier than the fixed focus camera.

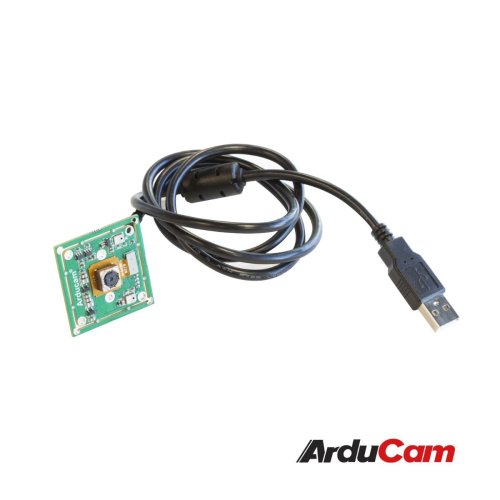

• Plug&Play: UVC-compliant, just connect the camera to PC, laptop, Android device or Raspberry Pi with the included USB cable without extra drivers to be installed.

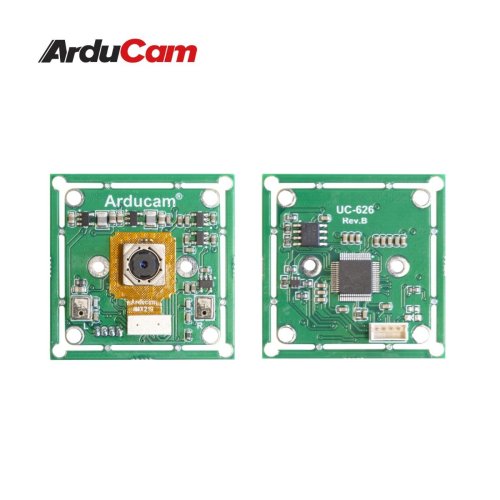

• Applications: This small 38mmx38mm camera board is highly recommended for a home surveillance system, monitoring 3D Printer, object recognition and tracking, or other machine vision application.
• Note: By default, the examples reset the focus as you quit the program or power off. To fix the focus, please alter the example code on your own.
• Supports modifying the Serial Number.

Specifications:

• Camera:
• Sensor: 1/4” IMX219
• Resolution: 8MP 3264H x 2448V
• Data Format: MJPG/YUY2
• Frame Rate: MJPG: 15fps@3264×2448/2592×1944; 30fps @1920×1080/1600×1200/1280×720/800×600/640×480
• YUV: 10fps@1280×720/800×600/640×480/320×240
• USB Connector: B4B-ZR(LF)(SN)
• Lens:
• Field of View (FOV)：H= 60°
• Focusing Range: 40mm to infinity
• IR Sensitivity: Integral IR filter, visible light only
• Functionality and Compatibility
• Auto Controlled Features: Saturation, Contrast, Acutance, White balance, Exposure.
• System Compatibility: Windows, Linux (Android compatibility: contact us for support)
• Power:
• Power Supply: DC 5V
• Working Current: MAX 200mA
• Physical:
• Operating Temp.: -4°F~158°F (-20°C~+70°C)
• Dimension: 38mmx38mm
• Cable Length: 3.3ft (1M)

Documentation:

• Datasheet
• Manual
• How to modify the serial number

Package Includes:

• 1 x Arducam B0292 4K 8MP IMX219 Autofocus USB Camera Module Without Microphone, 1080P Mini UVC USB2.0 Webcam
• 1 x USB cable
