Arducam has been a professional designer and manufacturer of SPI, MIPI, DVP, and USB cameras since 2012. We also offer customized turnkey design and manufacturing solution services for customers who want their products to be unique.

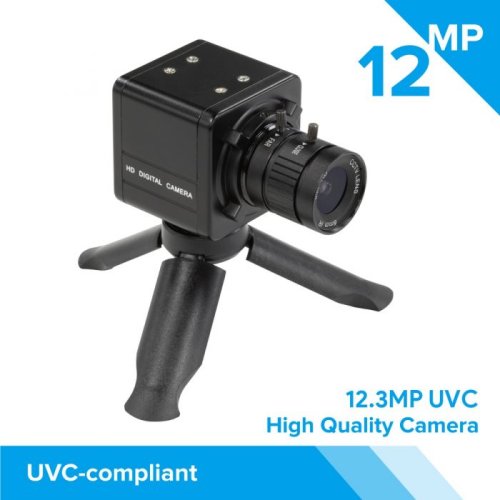

Arducam B0280 is a new member of Arducam’s USB camera family. It’s a 12MP, based on the 1/2.3″ Sony 12MP image sensor, UVC compliant, 6mm USB 2.0 camera with a metal shell.
No longer be anxious about installing the driver! The native UVC drivers of Windows, Linux, and Mac shall be compatible with this camera so that it does not require extra drivers to be installed.
Features:
  • More than HD: This camera adopts a 12MP sensor for sharp images and accurate color reproduction
  • Wider Angle of View: Rotate the zoom ring, focus ring, and aperture ring to get a clear image in different focus distances with a field of view of 65°.
  • High Frame Rates: MJPG 4032(H) x 3040(V)
  • Plug&Play: UVC-compliant, just connect the camera to a PC computer, laptop, Android device, or Raspberry Pi with the USB cable without extra drivers to be installed.
  • Applications: Widely used for video surveillance system, live streaming, recording lesson and conference, and other vision applications.
  • Serial Number: Supports modifying the Serial Number.
Features & Specifications:
Camera
  • Optical Format: 1/2.3”
  • Resolution: 4032(H) x 3040(V) 12.3MP
  • Data Format: MJPG
  • Frame Rate: 4032×3040@10fps; 3840×2160@20fps; 2592×1944@30fps; 2560×1440@30fps; 1920×1080@60fps; 1600×1200@50fps; 1280×960@100fps; 1280×760@100fps; 640×480@80fps
Lens
  • Field of View (FOV): 65°
  • Lens Mount: CS
  • Focal Length:6mm
  • Back Focal Length: 7.53mm
  • MOD: 0.2m
Lens Options
CS-Mount Lens
SKU

LN051

LN050

LN038

LN039

LN040

LN041

LN029

Part No

CS17320M12

CS2316ZM02

CS2308ZM05

CS2008ZM05A

CS1812ZM03

CS2325ZM01

CS1806ZM06

Optical Format1/1.7″1/2.3'1/2.3''1/2.3''1/2.3''1/2.3''1/2.3''
EFL(mm)3.216.00 8.008.0012.0025.006.00
BFL(mm)5.947.536.507.537.538.038.03
F/NO2.01.2 1.41.21.61.21.4
HFOV on 1/2.3‘’ Cam120°24°50°50°30°14°65°
MOD0.3m0.20m 0.30m0.20m0.20m0.20m0.30m

Size(mm)

28×3030×2928×2330×29.530×2928×2928×28.5

NOTE 1: The CS-Mount Lens kit for the 12.3MP HQ Camera module, please check LK004, 5 lenses are included.
NOTE 2: For the sample order, please order the lens you need to replace separately and Contact us in advance for customization if you would like to replace the lenses in bulk.
Functionality and Compatibility
  • Auto-Controlled Features: Saturation, Contrast, Acutance, White balance, Exposure.
  • System Compatibility: Windows, Linux, Mac, and Android with UVC
Power
  • Power Supply: USB-powered 5V
  • Working Current: MAX 200mA
Physical
  • Operating Temp.: -4°F~158°F (-20°C~+70°C).
  • Dimension: 50mmx50mmx85mm
  • Cable Length: default 6.56ft (2M)
Applications:
  • Video conference
  • Home video surveillance system
  • Live streaming
  • Record lessons and conference
Documentation:
Package Includes:
  • 1 × 12MP 6mm lens USB 2.0 camera with full metal shell
  • 1 × 6.56ft (2M) USB 2.0 cable
