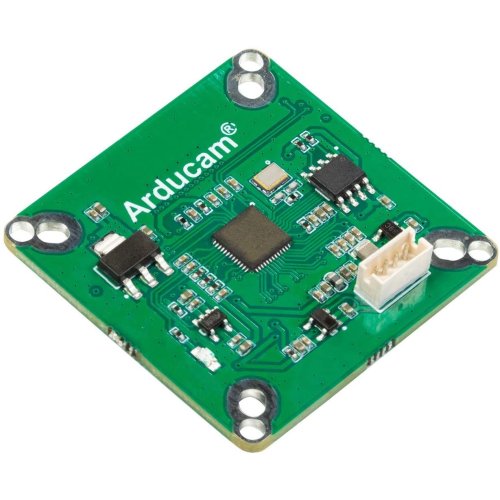

This CSI to USB adapter board aims to break the limits of applications of Raspberry Pi IMX477 High Quality camera and Arducam IMX477 camera series. Just connect this adapter with the camera board to PC computer, laptop, Android device, Raspberry Pi via USB port and it can work as a webcam.

No longer be anxious about installing the driver! It makes your 12.3MP IMX477 High Quality Camera UVC-compliant, the native UVC drivers of Windows, Linux and Mac shall be compatible with them so that it does not require extra drivers to be installed.
Note:
Use this adapter with your RPi compatible IMX477 camera modules, which are not included. Arducam IMX477 cameras for Jetson are deprecated because of different white balance calibrations. If you like the idea but don’t have the camera yet, check our full IMX477 USB Camera Bundle instead of buying those separately.
Video
Raspberry Pi High Quality Camera as Webcam with Single Microphone, 1080P 60fps, 4K 20fps, Plug and Play

Features:
  • Make IMX477 UVC-Compliant: This CSI to USB adapter board can extend your 12.3MP IMX477 High Quality Camera work as a webcam, just connect this adapter with camera board to PC computer, laptop, Android device, Raspberry Pi via USB port without extra drivers to be installed.
  • With Audio: This adapter makes your IMX477 camera board no longer be silent because of the built-in single microphone, so as to capture video with audio.
  • Ultra HD and High Frame Rates: It has no effect on the image quality and frame rates at all; max. still resolution 4056(H) x 3040(V); MJPG 10fps@4056x3040, 20fps@4K(3840x2160), 30fps@2592x1944/2560x1440, 60fps@1080P, 100fps@720P.
  • Easy to Assemble: Board dimension is 38mmx38mm, same sized with IMX477 HQ camera board, and compatible location and pitch of mounting hole, just connect and assemble the adapter board with the camera board, with the included camera cable and accessories.
  • Serial Number: Supports modifying the Serial Number.
Specifications:
Image SensorSony 12.3MP IMX477
Data FormatMJPG
Auto Controlled FeaturesSaturation, Contrast, Acutance, White balance, Exposure
System CompatibilityWin7/8/10, Linux, Mac and Android with UVC
Signal Input22 Pin 0.5mm Pitch CSI connector
Frame Rates10fps@4032×3040; 20fps@3840×2160; 30fps@2592×1944/2560×1440; 60fps@1080P; 100fps@720P
Signal Output1.5mm Pitch ZH connector ZHR-4
Voltage InputDC 5V
Connecting Port TypeUSB2.0
Working Current200mA
Operating Temp-4°F~167°F (-20°C~+75°C)
Overall Dimension38mm x 38mm
Cable LengthDefault 3.3ft(1m)
Hole PitchCompatible with 29mm, 30mm, 34mm

Applications:
  • Home video surveillance system
  • Other vision applications demand IMX477 camera
  • DSLR Camera Control
  • Instant (Polaroid-Style) Camera, etc.
Note:
  • IMX477 Camera module is not included in the package
  • Arducam IMX477 cameras for Jetson are deprecated because of different white balance calibrations. If you like the idea but don’t have the camera yet, check our full IMX477 USB Camera Bundle [CS Lens Bundle] [Zoom Lens Bundle] instead of buying those separately.
Documentations:

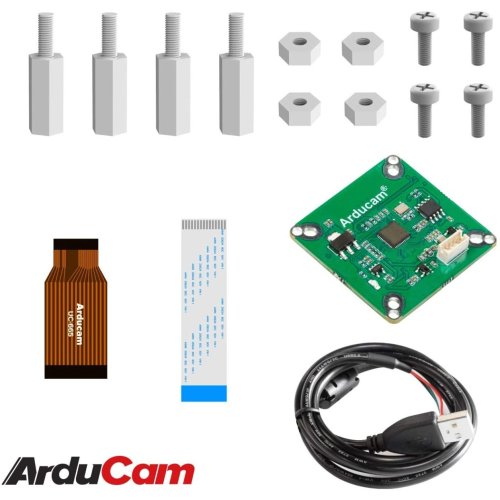

Package Includes:
  • 1 x CSI-UVC adapter board
  • 1 x 3.8cm 22pin to 15pin camera cable for Raspberry Pi Official High Quality Camera
  • 1 x 8cm 22pin to 22pin camera cable for Arducam IMX477 HQ camera series
  • 1 x 1m/3.3ft USB2.0 camera cable
  • 1 set accessories of standoff, screws, and nuts

Write a review

Please login or register to review

Arducam B0278 CSI-USB UVC Camera Adapter Board for 12.3MP IMX477 Raspberry Pi Camera

  • Brand: ArduCAM
  • Product Code:ArdC-B0278-USB-Camera
  • Reward Points:38
  • Availability:In Stock
  • रo 3,651.00
  • रo 3,195.00

  • Price in reward points:3804

  • 5 or more रo 3,621.00
  • 20 or more रo 3,636.00
  • 35 or more रo 3,591.00
