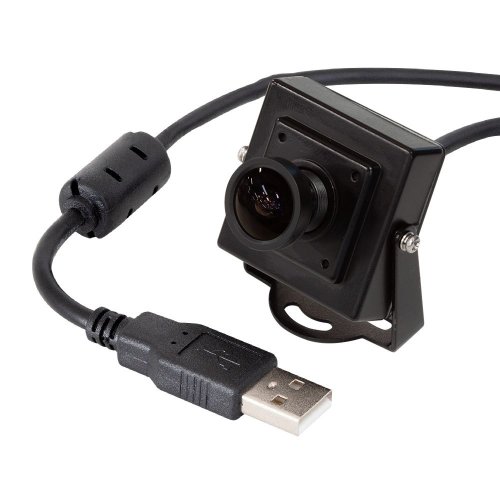

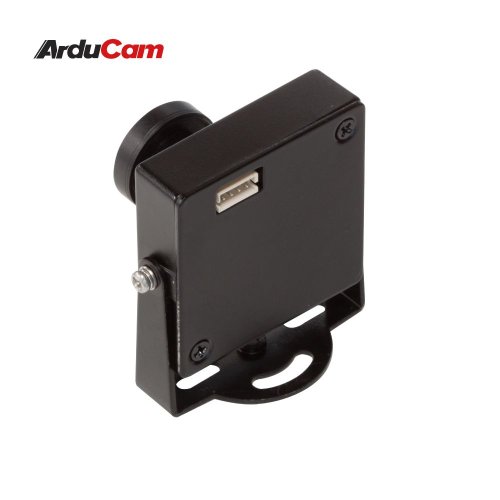

Arducam High-Resolution Camera Module is based on Sony 1/2.8” 16MP Sony IMX298 image sensor, mounted a high quality 105 degree (H) M12 Lens, UVC compliant USB 2.0 cameras.

No longer be anxious about installing the driver! The native UVC drivers of Windows, Linux, and Mac shall be compatible with this camera so that it does not require extra drivers to be installed.

Features:

  • Ultra HD: This small camera module adopts a 16MP IMX298 sensor for sharp image and accurate color reproduction, still picture resolution: 4656 x 3496 Max.
  • Wide Angle: Mounted a High quality 105-degree wide view angle (horizontal) M12 lens with IR filter, provides a wilder Field of View.
  • Plug & Play: Assemble with a mini metal case and rotatable bracket, you can easily put on the desk or any flat surface, or mount on the wall or tripod mount. UVC-compliant, just connect the camera to a PC computer, laptop, Android device, or Raspberry Pi with the USB cable without extra drivers to be installed. For Mac OS, please please open the native software facetime and select the video camera “Arducam IMX298 Camera”.
  • High Frame Rates: MJPG 10fps@4656x3496/3264x2448/ 2592x1944, 30fps@1080P/720P/1024x768;YUY2 10fps@1024x768/640x768
  • Applications: This tiny 38mmx38mm camera board can be installed in the most narrow position, highly recommended for a home video surveillance system, dashcam, and other vision applications demand high resolution.

Specifications:

  • Camera:
    • Sensor: 1/2.8” IMX298
    • Resolution: 16MP 4656H x 3496V
    • Data Format: MJPG/YUY2
    • Frame Rate: MJPG 10fps@4656x3496/3264x2448/2592x1944/, 30fps@1080P/720P/1024x768; YUY2 8fps@1024x768, 10fps@640x768
  • Lens:
    • Field of View (FOV): H= 105°
    • Lens Mount: M12
    • Focusing Range: 3.3ft (1M) to infinity
    • IR Sensitivity: Integral IR filter, visible light only
  • Functionality and Compatibility:
    • Auto Controlled Features: Saturation, Contrast, Acutance, White balance, Exposure.
    • System Compatibility: Windows, Linux, and Mac with UVC
  • Power:
    • Power Supply: DC 5V
    • Working Current: MAX 200mA
  • Physical:
    • Operating Temp.: -4°F~167°F (-20°C~+75°C)
    • Cable Length: 3.3ft (1M)

Applications:

  • Video conference
  • Home video surveillance system
  • Day & night low light vision security camera system
  • Dash cam
  • Monitoring 3D printer
  • Baby Camera
  • Robot and machine vision

Documents:

Package Includes:

  • 1 x Arducam B026801 16MP Wide Angle USB Camera with Metal Case, 1/2.8" CMOS IMX298 Mini UVC USB2.0 4K Video Webcam Without Microphone, with 3.3ft/1m Cable for Laptop
Sensor Specifications
Sensor type IMX298
Sensor size 1/2.8”
Frames per Second MJPG 10fps@4656x3496/3264x2448/2592x1944/, 30fps@1080P/720P/1024x768; YUY2 8fps@1024x768, 10fps@640x768
Resolution 16MP 4656H x 3496V
Lens Specifications
Field of View H= 105°
Lens Mount M12
Electrical Specifications
Minimum Operating Temperature -4°F
Maximum Operating Temperature 167°F

Write a review

Please login or register to review

Arducam B026801 16MP Wide Angle USB Camera with Metal Case, 1/2.8inch CMOS IMX298 Mini UVC USB2.0 4K Video Webcam

  • Brand: ArduCAM
  • Product Code:NR-ArdC-B026801-USB-Camera
  • Reward Points:100
  • Availability:In Stock
  • रo 9,649.00
  • रo 8,443.00

  • Price in reward points:10051

  • 3 or more रo 9,569.00
  • 7 or more रo 9,609.00
  • 15 or more रo 9,488.00
