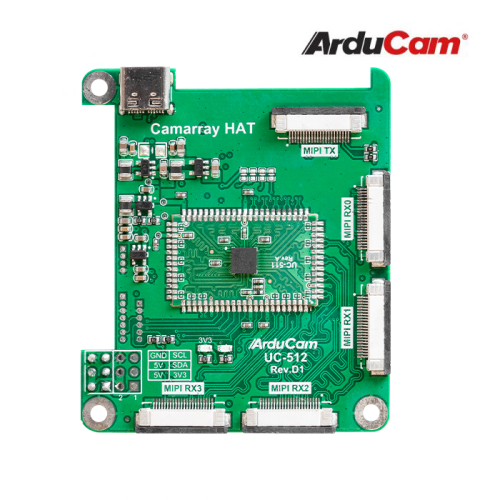

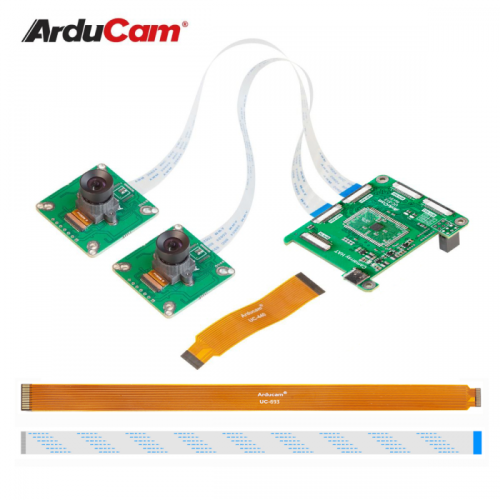

This Arducam stereo camera bundle kit consists of two synched OV9281 global shutter cameras and an Arducam Camarray stereo camera HAT. As a stereo bundle system, it enables simultaneously working dual cameras with a variable baseline for better prototyping and evaluation with a single MIPI CSI camera slot: The two image sensors are on separated camera boards, and you easily move them around for different perspectives while the Camarray HAT handles the rest of the work. This is helpful for proof-of-concept stages when you may want more flexibilities than what a fixed stereo camera module can offer. You will be able to find the optimal baseline for your application with this bundle, and we welcome you to send us product customization requests after that.

Features:

Supports Platforms: This bundle runs two synchronous OV9281 cameras through a single connection with MIPI CSI-2 port, compatible with Raspberry Pi and Jetson Nano/Xavier NX, also can be extended to other platforms that have MIPI CSI-2 interface and standard Video4Linux2(V4L2) driver.
Complete Synchronization: The frames of two cameras are synchronized at the hardware level, extra synchronization scheme by time stamping or so does not need to be considered.
Mono Global Shutter: Shoot high-speed moving objects in crisp sharp images. Avoid the rolling artifacts to get a much more accurate complete picture than the rolling shutter Pi cameras. Frame Rate: 70fps@1280*2 x 800 on Jetson.
Variable Baseline Extension: Compared to the fixed stereo camera module, this stereo camera bundle has higher flexibility. The separated cameras can be used with a variable baseline device and controlled through the computer control system to achieve rapid and dynamic interactive adjustment of the moving parts for human-like multi-degree-of-freedom stereo binocular vision.
Support Changing Frame Rate: You can change the frame rate from 5fps to 70fps. If the set frame rate exceeds the maximum value, it will work according to the maximum value. The same goes for the minimum value.

Specifications:

Support Platform Raspberry Pi and Jetson Nano
Output/CSI-2 Speed x1 CSI-2 2-lane Output Port/1.0 Gbps/Lane
ISP Support Supported on Raspberry Pi, not supported on Nvidia Jetson
External Trigger Support
Aggregate mode Full Spelling Combine
Frame Rates(On Raspberry Pi) RAW8/RAW10: 2560x80060fps, 2560x72065fps, 1280x400150fps
Frame Rates(On Nvidia Jetson) RAW8/RAW10: 2560x80060fps, 2560x72065fps, 1280x400150fps
Image Sensor Mono Global Shutter OV9281
Pixel Size 3 μm x 3 μm
Active Array Size 1280 x 800
Optical Size 1/4”
Focus Distance 30mm-infinite
Camera Interface 2-lane MIPI CSI-2
Camera Board Size 40mm x 40mm
Camarray Hat Size 65mm x 56 mm
Default Lens Mount M12 Mount
Distortion <1%
Effective Focal Length 2.8mm
Field of View(FOV) 70° (H) x 43.75°(V)
IR Sensitivity Without IR-cut filter, sensitive to IR light
F.NO 2.8
Lens Dimension Φ14×15.6mm
Lens Weight 4g
Default Lens Low distortion M12 lens (Part Number: M27280M07S)

JetPack4.6/L4T32.6.1 on NVIDIA Jetson Nano/Xavier NX

Applications:

Head, and eye tracking
Gesture detection
Motion detection
3D reconstruction
Depth-related vision applications

Note:

This kit is released for official Raspberry Pi/Jetson Nano/Xavier NX boards by default, and it does not support other third-party boards
Raspberry Pi and Jetson board is not included in the package.
This bundle kit is not recommended for Raspberry Pi Zero.
The OV9281 cameras in this kit are a special version and cannot be used on Raspberry Pi or Jetson directly.
The I2C signal and clock of each camera are fully synchronized. It is unavailable to capture the same frame of images at different exposure times for each camera.
Our main business is to assist customers in acquiring data from binocular cameras. Due to the extensive backend processing involved in depth vision, we regret that we cannot provide comprehensive operational guidance to cover all requirements. If you have relevant needs, you may refer to open-source demos for binocular cameras, such as those offered by NVIDIA.
The lens on this camera is not interchangeable, if you need to replace the lens, please contact sales in advance!
