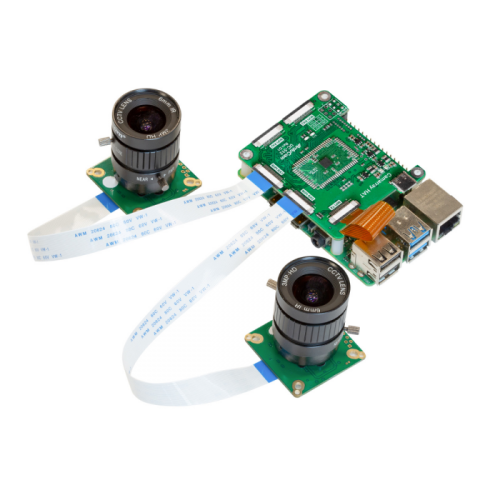

This Arducam 12MP Synchronized Stereo Camera Bundle Kit is capable of running two 12MP Camera Modules simultaneously through a single MIPI CSI-2 camera slot connection on Raspberry Pi. It consists of two 12MP High-Quality camera modules and an Arducam stereo camera HAT. The stereo camera HAT is enabled by ArduChip to disguise the dual-camera connection as a single camera to be accepted by the RPi. You can use this bundle to build your stereo camera system for depth-related vision applications or upgrade your IMX219 stereo setup.
Video
[ Tutorial ] Arducam Camarray 12MP*2 Synchronized Stereo Camera Bundle Kit for Raspberry Pi:
Specifications:
- Support Platform Raspberry Pi
- Output/CSI-2 Speed x1 CSI-2 2-lane Output Port/1.0 Gbps/Lane
- Output Formats RAW8/RAW10/RAW12
- ISP Support Supported by Raspberry Pi
- External Triggle Not Support
- Aggregate mode Half Spelling Combine
- Frame Rates 120fps1332x990,50fps2028 × 1080,40fps2028 × 1520, 10fps4056 × 3040
- Image Sensor Sony 12.3MP
- Pixel Size 1.55 μm x 1.55 μm
- Active Array Size 4056 x 3040
- Optical Size 1/2.3”
- Camera Interface 2-lane MIPI CSI-2
- Camera Board Size 38mm x 38mm
- Camarray Hat Size 65 x 56 mm
- Default Lens Mount CS-Mount
- Effective Focal Length 6mm
- Field of View(FOV) 65° (H)
- IR Sensitivity Integral IR Cut filter, visible light
- Back Focal Length 7.53mm
- MOD 0.2m
- F.NO Max 1.2
- Lens Dimension Φ30×31mm
- Lens Weight 53g
Applications:
- Robot navigation
- Objective tracking
- 3D measurement
- 3D reconstruction
- Depth-related vision applications, etc.
Note:
- The Raspberry Pi board is not included in the package
- A single camera module in the bundle kit does NOT work alone with the Raspberry Pi, the Camarray HAT is required.
- The camera bundle kit is compressed with half spelling (To ensure the same resolution after compositing, the resolution of each camera is compressed in the horizontal direction by half, but the field of view remains the same), which is different from the full spelling. It can use the official ISP, AWB, AE, and other functions, the image effect is better.
- This camera module supports the latest Raspberry Pi OS Bullseye (Jan 28th, 2022 and later) and libcamera apps, for the previous Raspberry Pi OS (Legacy) users.
- Our main business is to assist customers in acquiring data from binocular cameras. Due to the extensive backend processing involved in in-depth vision, we regret that we cannot provide comprehensive operational guidance to cover all requirements. If you have relevant needs, you may refer to open-source demos for binocular cameras, such as those offered by NVIDIA.
- The Camarray HAT is not sold alone for the following reasons:
- Most of the cameras on the market are not designed for synched stereo uses. We’ve modified our camera modules specifically for the Camarry HAT. Your own V1, V2 or HQ camera modules won’t directly work with it.
- The Camarray HAT requires different firmware for different Image sensors that are not natively working with your embedded systems. Your own OV9281 and OV7251 camera modules won’t directly work with it, and they are not easily interchangeable.
Customization is required if you have extra requirements as the following:
- You need the camera module to run on other Video Modes and Frame Rates.
- You need to trigger the camera with an External Hardware trigger.
Documentations:
BLOG
Package Includes:

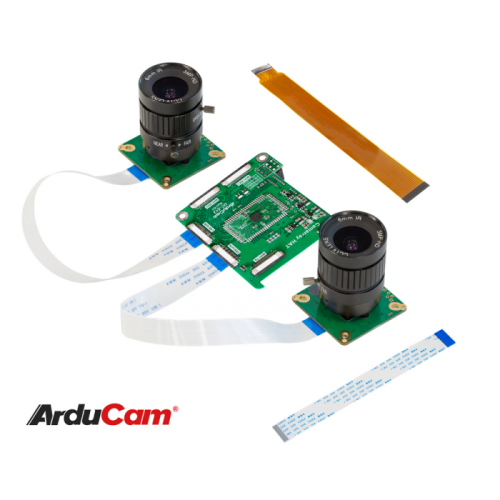

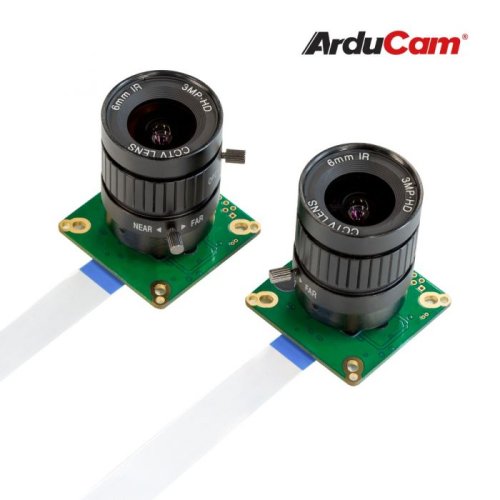

- 2 x 12.3MP color camera module mounted with CS lens

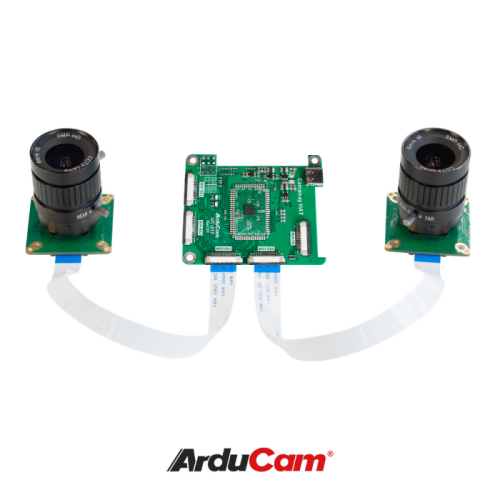

- 1 x Arducam Camarray Stereo Camera HAT
- 2 x 150mm/6inch 22pin to 22pin camera cables
- 1 x 80mm/3.15inch 22pin to 22pin camera cable for Pi Zero
- 1 x 73mm/2.87inch 15pin to 22pin camera cable
- 4 x M2.5 10mm Nylon Hex Standoffs
- 4 x M2.5 Nylon Nuts
- 4 x M2.5 6mm Nylon Screws
Sensor Specifications | |
Sensor type | IMX477 |
Video Modes | 12-bit RAW, 30fps@2028 × 1522 with the Official driver; 8-bit RAW, 6fps@4056 x 2 × 3040 with Arducam driver |
Pixel Size / Density | 1.55um x 1.55um |
Resolution | 4056(H) x 3040(V) 12.3MP |
Lens Specifications | |
Focal Length | 6 mm |
Field of View | 65° |
Lens Mount | CS |
Aperture | Max. F1.2 |
Physical Attributes | |
Weight | 53 g |
Dimensions | HAT- 65 x 56 mm, Board Size- 38mm x 38mm, Lens- Φ30×31mm |
Additional Information | |
Warranty | 90 days |
Arducam B0265R 12MP*2 Synchronized Stereo Camera Bundle Kit
- Brand: ArduCAM
- Product Code:ArdC-B0265R-Camera
- Reward Points:221
- Availability:In Stock
- रo 21,257.00
-
रo 18,600.00
- Price in reward points:22143
-
- 3 or more रo 21,168.00
- 6 or more रo 20,903.00
