Arducam IMX291 Low Light Camera Module Series is based on Sony 2MP 1/2.8” IMX291 image sensor and UVC compliant USB 2.0 cameras.
This camera B0261 is a new member of the family, which adopts a fisheye M12 lens so as to provide a wider angle of view than others.
Features:
- HD and Low Light: This camera adopts the 2MP 1/2.8” IMX291 Color COMS sensor with an 80DB wide dynamic range, can capture the minimum illumination 0.001Lux.
- Real Fisheye: Mounted a high quality 175°(D) wide-angle M12 Lens, which provides the most widely Field of View compared to other lenses in the series.
- Capture Video with Audio: High frame rates, H.264 30fps@1920×1080; MJPG 30fps@1920×1080; YUY2 30fps@640x 480; Audio, single microphone (optional dual channel).
- Plug & Play: UVC-compliant, support Windows XP/7/8/10, Linux, and Mac OS, just connect the camera to PC, laptop or Raspberry Pi with the USB cable without extra drivers to be installed. For Mac OS, please please open the native software facetime and select the video camera “USB Camera”.
Specifications:
-
Camera
- Sensor: 1/2.8” IMX291
- Resolution: 2MP 1945H x 1109V
- Data Format: MJPG/YUY2/H.264
- Frame Rate: H.264 30fps@1920 x 1080; MJPG 30fps@1920 x 1080; YUY2 30fps@640 x 360.
- Dynamic Range: 80DB
- Minimum Illumination: 0.001Lux
-
Lens
- Optical Format: 1/2.5”
- Field of View (FOV):D= 175°
- Lens Mount: M12
- IR Sensitivity: Integral IR filter, visible light only
-
Functionality and Compatibility
- Auto Controlled Features: Saturation, Contrast, Acutance, White balance, Exposure.
- Audio: Single microphone (optional dual channel)
- System Compatibility: Windows, Linux, and Mac with UVC
-
Power
- Power Supply: USB powered 5V
- Working Current: MAX 300mA
-
Physical
- Operating Temp.: -4°F~158°F (-20°C~+70°C)
- Dimension: 38mmx38mm (Mount compatible with 34x34mm and 28x28mm)
- Cable Length: 3.3ft (1M)
Applications:
- Video conference
- Home video surveillance system
- Day & night low light vision security camera system
- Dash cam
- Monitoring 3D printer
- Baby Camera
- Robot and machine vision
Documents:
Package Includes:

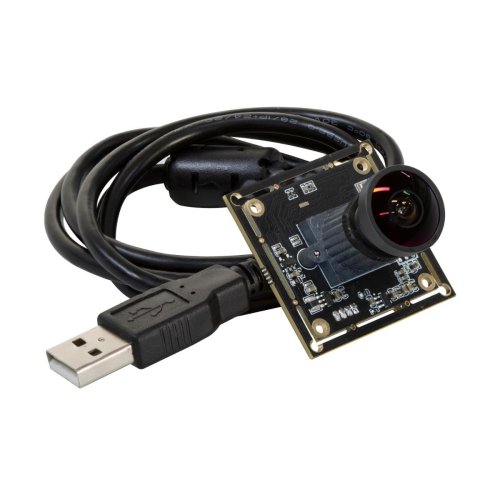

- 1 x 2MP IMX291 USB 2.0 camera board
- 1 x 3.3ft (1M) USB 2.0 cable
Arducam B0261 Fisheye Low Light UVC Compliance 2MP IMX291 USB Camera
- Brand: ArduCAM
- Product Code:ArdC-B0261-UVC-Camera
- Reward Points:48
- Availability:In Stock
- रo 4,564.00
-
रo 3,994.00
- Price in reward points:4755
-
- 5 or more रo 4,526.00
- 5 or more रo 4,526.00
