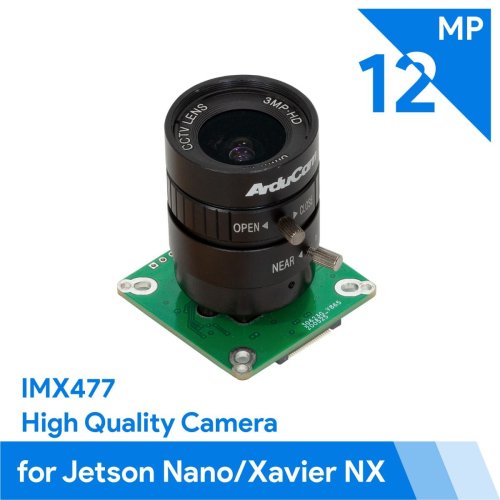

• ArduCam B0249 High Quality Camera for Jetson Nano
Arducam just released this High Quality camera module for Jetson Nano/Xavier NX, an IMX477 camera board with three hole pitches, a 6mm CS lens. The customers can use this camera module on Jetson Nano/Xavier NX natively with hardware ISP features, and no need any driver or hardware update.

Features:
  • Work Natively with Jetson Nano. Driver link:https://github.com/ArduCAM/MIPI_Camera/tree/master/Jetson/IMX477/driver
  • Get Clearer Images: This camera adopts 1/2.3" 12.3 Megapixel IMX477 sensor for sharp image, max. still resolution 4056(H) x 3040(V).
  • Less Hassle: No more wasting time looking for the CS lens and camera case. A 1/2.3" 6mm focal length CS lens is included.
  • More Lanes: The Arducam high quality camera module has a 4-lane MIPI CSI-2 interface to make it possible to get more data through.
  • Support More Platforms: It supports all Jetson Nano A02&B01 models as well as Xavier NX. For PC/laptop, you need a camera shield and a MIPI adapter board, please search for USB2 camera shield B0175 or USB3 camera shield B0111, and MIPI adapter board B0123.

Specifications:

  • Camera
    • Sensor: IMX477
    • Optical Format: 1/2.3" (diagonal 7.857mm)
    • Resolution: 4056(H) x 3040(V) 12.3MP
    • Pixel Size: 1.55um x 1.55um
    • IR Sensitivity: Visible light
    • Interface: 4-lane MIPI CSI-2
    • Default Lens Mount: CS-Mount
    • Frame Rate: (depends on the target platform, maximum fps limit might apply)
    • 1920x1080 @ 60fps
    • 4032x3040 @ 30fps
  • Lens
    • Format: 1/2.3 inch
    • Focal Length: 6mm
    • Aperture (F): F1.4
    • Field of View (FOV): 65° (H)
    • Mount: CS-Mount
    • Back Focal Length: 12.5mm
    • MOD: 0.1m Dimension: Φ28×26.58mm
    • Weight: 29g
  • Camera Board
    • Board Size: 38mm×38mm
    • Hole Pitch: Compatible with 29mm, 30mm, 34mm

Documentations:

Package Includes:

  • 1 X 12.3MP IMX477 color camera module
  • 1 X  6mm focal length CS-mount camera lens
  • 1 X  300mm/12inch 15pin to 22pin camera cable
  • 1 X  80mm/3.15inch 22pin camera cable for Raspberry Pi Zero&W



Sensor Specifications
Sensor type IMX477
Sensor size 1/2.3 inch
Frames per Second Depends on the target platform, maximum fps limit might apply 1920x1080 @ 60fps 4032x3040 @ 30fps
Resolution 4056(H) x 3040(V) 12.3MP
Lens Specifications
Focal Length 6mm
Field of View 65° (H)
Lens Mount CS-Mount
