The official Pi HQ camera is only available in one model. It doesn't come with a lens and it is also not easy for the users to find a case. To solve these pain points, Arducam released this camera module, a customized camera board with three-hole pitches and a 6mm CS lens. And you can download our 3D files to print your case as you like. This camera module supports all Raspberry Pi and PC/laptops (needing UVC adapter board B0278 not included).
Video
Troubleshooting Arducam High Quality Cameras for Raspberry Pi

[Tutorial] How to Use Arducam High Quality Camera for Raspberry Pi

Specifications:
Camera
Still Resolution12.3 Megapixels
Video Modes2028 × 1080p50, 2028 × 1520p40 and 1332 × 990p120
Sensor Resolution4056 x 3040 pixels
Sensor image area6.287mm x 4.712 mm (7.9mm diagonal)
Pixel Size1.55 µm x 1.55 µm
Optical Size1/2.3"
IR SensitivityIntegral IR-cut Filter, visible light only

Lens
FOCUS TYPEMANUAL FOCUS
Focal Length6mm
F.NOF1.2
Field of View(FOV)65°(H)
Lens MountCS-Mount
MOD0.2mm
Back Focal Length7.53mm
Lens DimensionΦ30×31mm

Electrical & Mechanical
CAMERA BOARD SIZE38 × 38MM
Hole PitchCompatible with 29mm, 30mm, 34mm
PEAKING CURRENT300MA

Applications:
  • DSLR Camera Control
  • Remote Viewing Camera
  • Time-lapse Machine
  • Security System
  • Smart Video Doorbell
  • Face Recognition
  • Instant (Polaroid-Style) Camera, etc.
Note:
  • Raspberry Pi board is not included in the package
  • Our camera module support 4-lane in hardware, but the 4-lane camera driver requires extra customization. Here is why:
    • Standard Raspberry Pi and Jetson Nano/Xavier NX can’t physically support a 4-lane connection (both of them only have 2-lane CSI connectors). Only the Raspberry Pi Compute Module and some 3rd party Jetson Carrier Boards come with 4-lane hardware support. Therefore, it’s not a general need.
    • Extra works, specifically camera drivers, are required for a 4-lane connection other than the 4-lane physical connector. And the drivers are limited by the performances of the platform itself. For example, 4-lane can’t unlock 4k video on Raspberry Pi because the VideoCore does not currently support it. Jetson Nano is also to some extent limited because of the encoding capabilities. You need to make sure you really need it.
  • This camera module supports the latest Raspberry Pi OS Bullseye (Jan 28th, 2022 and later) and libcamera apps, for the previous Raspberry Pi OS (Legacy) users.
Documentations:
Package Includes:
  • 1 x 12.3MP color camera module
  • 1 x 6mm focal length CS-mount camera lens
  • 1 x 300mm/11.8inch 22pin to 22pin camera cable
  • 1 x 150mm/5.9inch 15pin to 22pin camera cable for pi A&B series
Sensor Specifications
Sensor type IMX477
Sensor size 1/2.3 inch
Resolution 4056(H) x 3040(V) 12.3MP
Lens Specifications
Focal Length 6mm
Field of View 65° (H)
Lens Mount CS-Mount

Write a review

Please login or register to review

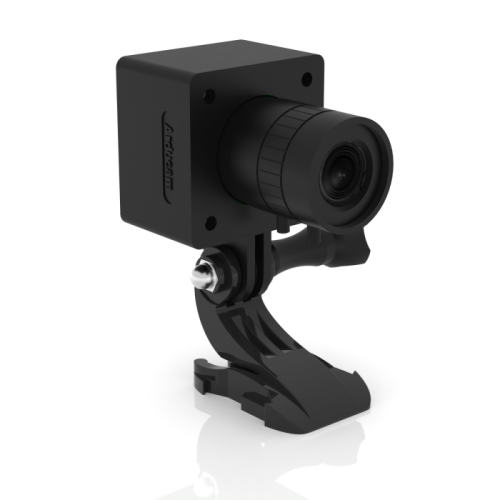

Arducam B0240 High Quality Camera for Raspberry Pi, 12.3MP 1/2.3 Inch HQ Camera Module with 6mm CS Lens

  • Brand: ArduCAM
  • Product Code:ArdC-B0240-Camera-Module
  • Reward Points:84
  • Availability:In Stock
  • रo 8,085.00
  • रo 7,075.00

  • Price in reward points:8422

  • 3 or more रo 8,018.00
  • 10 or more रo 8,052.00
  • 15 or more रo 7,951.00
