In order to meet the new demands of the lens to work with Raspberry Pi High Quality Camera, Arducam selected and tested a wide range of lenses on your Rpi HQ cameras. We’ve tested this lens among the many other selected on the 12MP RPi HQ Camera. No lens shading, no dark corners, decent image quality, it just works. It is another cost-effective choice that adds up to you Raspberry Pi High Quality Camera Module.

Features:

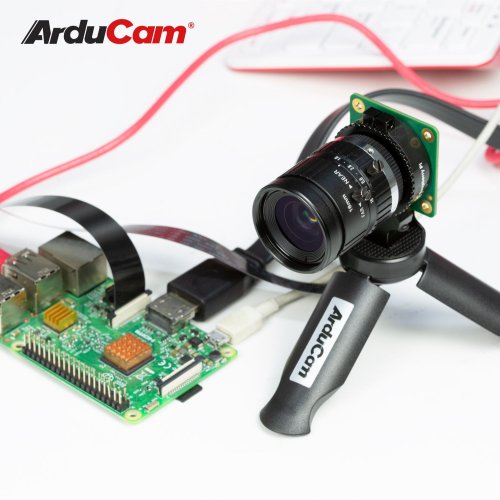

  • They Just Work - We’ve tested this lens, the camera cable and the tripod stand on the 12MP RPi HQ Camera. With them, you can get decent quality image and release your hands.
  • The C-Mount Lens - Another cost-effective choice that adds up to your Raspberry Pi High Quality Camera Module, with 16mm focal length, manual focus and adjustable aperture.
  • The Tripod Stand - Pocket size and lightweight, 1/4”-20 mounting screw, hassle-free fitting the RPi HQ Camera Board.
  • The Camera Cable - 60cm/2ft length, 15 Pin 1.0mm Pitch interfaces, black color and long enough, goes well with 3D printers OctoPrint setup and Raspberry Pi High Quality Camera.
Lens Specifications:
  • Model No: C1516ZM02
  • Optical Format: 2/3"
  • Focal Length: 16mm
  • Aperture: F1.6-F16, adjustable
  • Field of View (FOV): 30.8°(H)×23.4°(V), 24°(H) on 1/2.3" IMX477 High Quality Camera
  • Focus Type: manual
  • Mount: C mount
  • Back Focal Length: 17.53mm
  • MOD: 0.2m
  • Dimension: Φ33mm×36.5mm
  • Weight: 110.7g
Warranty: 90days
  • Warranty will not apply if Product fails or is damaged after delivery to you due to accident, abuse or misuse.

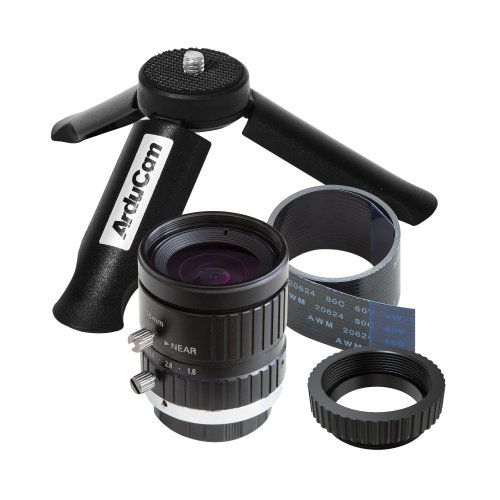

Package Includes:
  • 1 x 2/3" C-Mount 16mm Focal Length lens for Raspberry Pi
  • 1 x Tripod Stand
  • 1 x 15pin 60cm/2ft Camera Cable
  • 1 x CS to C adapter
Sensor Specifications
Sensor size 2/3"
Lens Specifications
Focal Length 16mm
Field of View 30.8°(H)×23.4°(V), 24°(H) on 1/2.3" IMX477
Lens Mount C mount
Aperture F1.6-F16, adjustable
Physical Attributes
Weight 110.7g
Dimensions Φ33mm×36.5mm
Additional Information
Warranty 90days

Write a review

Please login or register to review

Arducam B0239 C-Mount Lens Bundle for Raspberry Pi HQ Camera

  • Brand: ArduCAM
  • Product Code:ArdC-B0239-Lens-Bundle
  • Reward Points:50
  • Availability:In Stock
  • रo 4,760.00
  • रo 4,165.00

  • Price in reward points:4958

  • 5 or more रo 4,720.00
  • 15 or more रo 4,740.00
  • 30 or more रo 4,681.00
