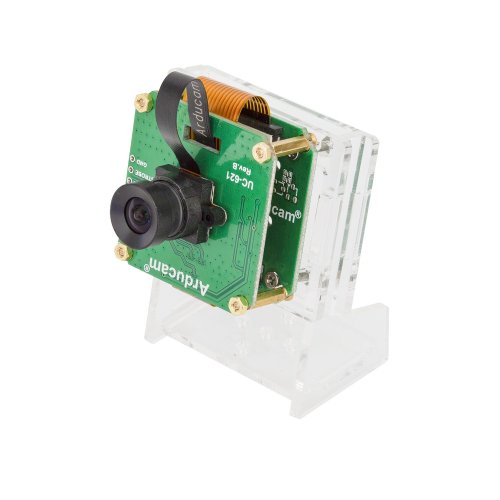

As part of Project Jetvariety, which allows any camera modules to be connected to the high-speed CSI-2 connector on the Jetson Nano. Arducam released this 2MP OV2311 Global shutter camera module, and it can be connected directly to RPi’s CSI-2 camera interface without additional hardware. Based on 1/2.9-inch Omnivision OV2311 image sensor which adopts OmniPixel3-GS™ technology, it provides full-frame, sub-sampled, and windowed 8/10-bit MIPI images, and capable of operating at up to 60fps in full resolution at 2-lane MIPI bus with complete user control over image quality.
Due to the sensor's high resolution, the OV2311 offers exceptionally accurate gaze- and eye-tracking capabilities, and it achieves high near-infrared quantum efficiency to minimize active illumination power and reduce the system power requirements.

Features:

  • Sensors
    • Sensor: Global Shutter OV2311 Monochrome
    • Pixel size: 3 µm x 3 µm
    • Active array size: 1600 x 1300
    • Optical Format size: 1/2.9"
    • Maximum image transfer rate: 1600 x 1300: 60 fps
    • Support for image sizes: 1600 x 1300, 1280 x 720, 640 x 480
    • Input clock frequency: 6~27 MHz
    • Max S/N ratio: 37.4 dB
    • Dynamic range: 68 dB
  • Lens
    • Lens Thread: M12 x 0.5P
    • Field of View(FoV): 83°(H)
    • IR Sensitivity: without IR Filter, IR sensitive
  • Camera Module
    • Output interface: 2-lane MIPI
    • Output formats: RAW 8/10 bit

Driver Features:

  • Support Gray, Y10, Y16
  • Support standard V4L2 framework, Video Nodes and Controls (Exposure, Gain and depending on camera parameters)
  • Support External Trigger Global Shutter Camera
  • Support Single Line Driver Installation Command
  • Support OpenCV Friendly and Provides Source Code Demonstration
  • Support Dual Camera Synchronzation

Applications:

  • Augmented and virtual reality
  • Drones
  • 3D imaging
  • Machine vision
  • Industrial bar code scanning
  • Industrial automation

Additional Resources:

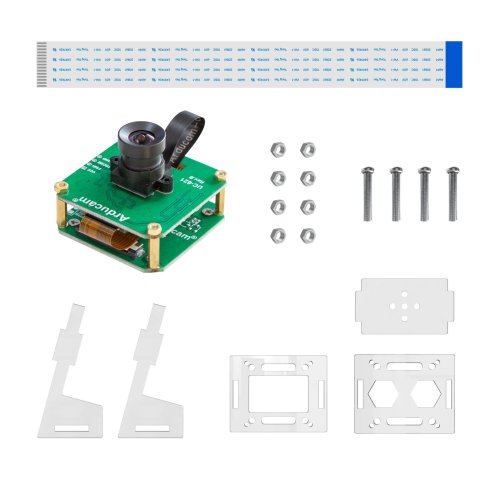

Package Includes:

  • 1 x Arducam 2MP OV2311 Global Shutter NoIR Mono Camera Module
  • 1 x Arducam Adapter Board for Jetson Nano
  • 1 x Arducam 73mm 15pin to 22pin Ribbon FPC Cable
  • 1 x Arducam 150mm 15pin Ribbon FPC Cable
  • 1 x Acrylic case for the camera module
Sensor Specifications
Sensor type OV2311 Monochrome
Sensor size 1/2.9"
Shutter Global Shutter
S/N Ratio 37.4 dB
Dynamic range 68 dB
Lens Specifications
Field of View 83°(H)
Lens Mount M12

Write a review

Please login or register to review

Arducam B0221 2MP OV2311 Global Shutter M12 Mount NoIR Mono Camera Modules for Jetson Nano

  • Brand: ArduCAM
  • Product Code:ArdC-B0221-Camera
  • Reward Points:105
  • Availability:In Stock
  • रo 10,042.00
  • रo 8,786.00

  • Price in reward points:10460

  • 3 or more रo 9,958.00
  • 5 or more रo 10,000.00
  • 15 or more रo 9,874.00
