The B020101 / UB020201 is a new member of the Arducam’s USB camera family. Based on the 1/2.8” Sony IMX291 image sensor, it’s a 2MP, UVC compliant, ultra wide angle, low light, high speed USB 2.0 camera with metal case.

Specifications:

Sensor: 1/2.8” IMX291
Resolution: 2MP 1945H x 1109V
Data Format: MJPG/YUY2/H.264
Frame Rate: H.264 30fps@1920 x 1080; MJPG 30fps@1920 x 1080; YUY2 30fps@640 x 360.
Dynamic Range: 80DB
Minimum Illumination: 0.001Lux

Lens:

Field of View (FOV)：D= 120° / 160°
Lens Mount: M12
Focusing Range: 6.56ft (2M) to infinity
IR Sensitivity: Integral IR filter, visible light only

Functionality and Compatibility:

Auto Controlled Features: Saturation, Contrast, Acutance, White balance, Exposure.
Audio: Dual microphones
System Compatibility: Windows, Linux, and Mac with UVC (Android compatibility: contact us for support.)

Power:

Power Supply: USB powered 5V
Working Current: MAX 300mA

Physical:

Operating Temp.: -4°F~167°F (-20°C~+75°C).

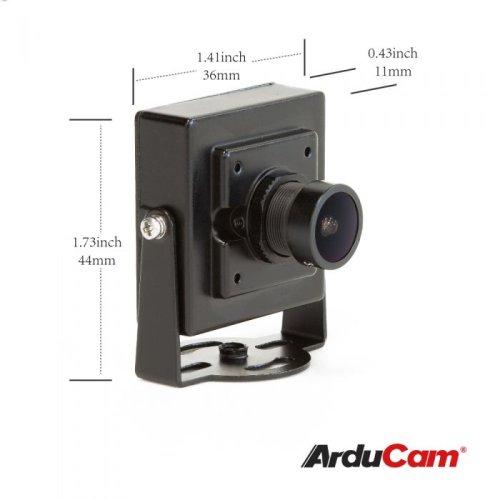

Dimension: 39x42mm

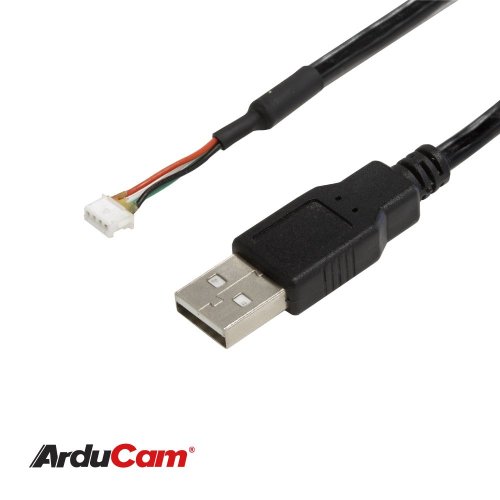

Cable Length: 3.3ft (1M)

Documents:

User Guid

Package Includes:

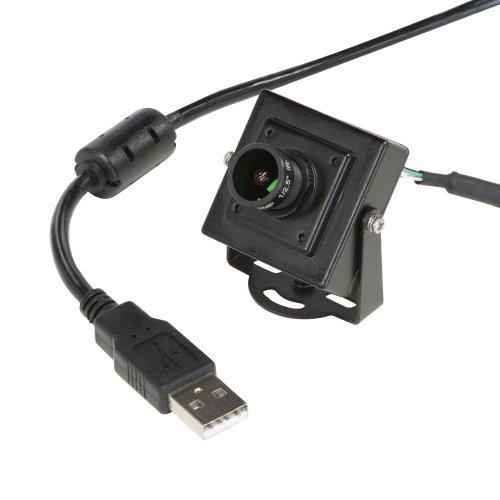

1 x Arducam B020101 (120 degree) / UB020201(160 degree) 1080P Low Light WDR USB Camera Module with Metal Case

Arducam B020101 / UB020201 1080P Low Light WDR USB Camera Module with Metal Case

Brand: ArduCAM
Product Code: ArdC-B020101-UB020201
Reward Points: 60
Availability: In Stock

रo 5,713.00
रo 4,999.00
Price in reward points: 5951
2 or more रo 5,689.00
5 or more रo 5,665.00
12 or more रo 5,641.00
24 or more रo 5,617.00

Available Options

Lens FoV in degrees

3) D=160° (+रo 120.00)

14) D=120°

Qty

0 reviews / Write a review
