Arducam PTZ camera is a complete solution to turn your Raspberry Pi/Jetson Nano/Xavier NX, and it is capable of remote directional and zoom control, so it could move the camera and the lens, and that means a single camera can be used to monitor places that should be covered by multiple ones. You can save a lot of cost and time in purchasing and deploying the camera. What’s more, this kit is based on the IR-CUT switchable 13MP camera to get sharp imaging all day and night.

Features:

Resolution: High Resolution
Shutter Type: Rolling Shutter
Color Type: Color
Interface: MIPI
Platform Support: Raspberry Pi/Jetson Nano/Xavier NX

Specifications:

Camera & Lens
- Sensor: IMX477
- Pixel Size: 1.55 µm x 1.55 µm
- Resolution: 4056(H) x 3040(V) 12.3MP
- Optical Size: 1/2.3″
- Video Modes on Raspberry Pi: 1080p30, 720p60 and 640 × 480p60/90
- Frame Rate on Jetson Nano/Xavier NX:1920×1080 @ 60fps,4032×3040 @ 30fps
- IR sensitivity: Optional with additional Motorized IR-Cut ﬁlter
- Focus: Front group – focus, Back group – Zoom
- Field of View: 96° – 33° (Horizontal)
PTZ Base
- Material: Full metal, aluminum alloy
- Shipping Weight: 480g (1.06lb)
- Overall Size: 12cm*12cm*13cm(L*W*H)

Applications:

This cost-effective and flexible PTZ camera performs better in Day&night vision security camera system, motion detection, wildlife photography and other machine vision projects.

Documentation:

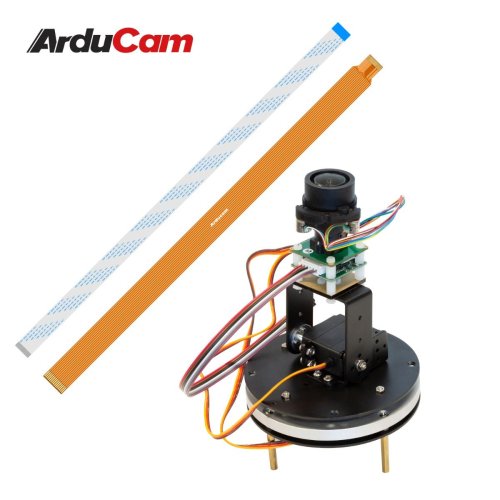

Package Includes:

1 x Arducam PTZ Lens, assembled with a 12MP IR-CUT switchable camera board and camera control board
1 x Pre-assembled Metal Base with 2 Digital Servos
1 x 15-Pin to 22-Pin Ribbon Cable (11.8 in/30 cm)
1 x 22-Pin Ribbon Cable (11.8 in/30 cm)
1 x XH2.54 Jumper wire with 6-Pin Female Connector (11.8 in/30 cm)
4 x Copper Standoffs for the Base
1 x Black Acrylic Sheet for fixing the camera module to the u-shaped bracket
