The MT9V022 is a 1/3-inch monochrome wide-VGA format CMOS active-pixel digital image sensor with global shutter and high dynamic range (HDR) operation. The sensor has  specifically been designed to support the demanding interior and exterior surveillance imaging needs, which makes this part ideal for a wide variety of imaging applications in real world environments.
 Features:
  • 1/3" optical format
  • 0.36MP 752 x 480 MT9V022 global shutter sensor
  • 6.0 x 6.0 um Pixel size
  • 60fps at full resolution
  • 4.8V/lux-sec responsivity
  • 55db linear, 110db HDR dynamic range
  • single 3.3V power input
  • Default M12 mount 6mm LS-6020 lens
Applications:
  • Security
  • High dynamic range imaging
  • Unattended surveillance
  • Stereo vision
  • Video as input
  • Machine vision
  • Automation

Note:

  • This camera module can be used together with Arducam USB shield for Windows, Linux and Raspberry Pi.
Documentations:
Package Includes:

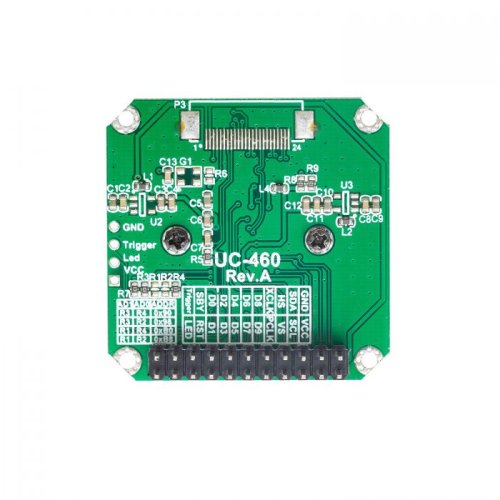

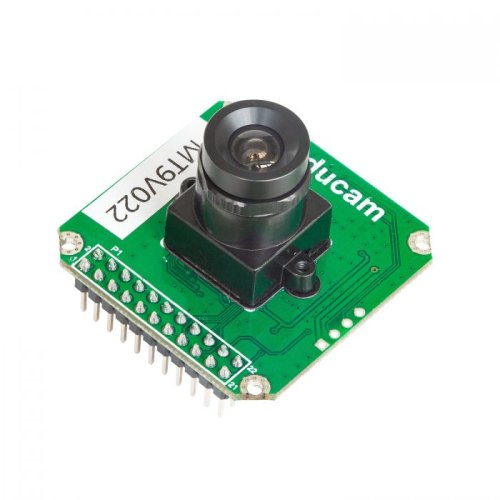

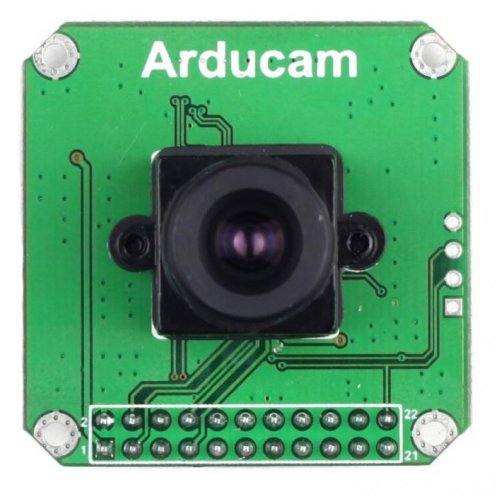

  • 1 x Arducam B0109 CMOS MT9V022 1/3-Inch 0.36MP Monochrome Camera Module
Sensor Specifications
Sensor type MT9V022 global shutter sensor
Sensor size 1/3 inch
Pixel Size / Density 6.0 x 6.0 um
Resolution 0.36MP 752 x 480
Lens Specifications
Lens Mount M12 mount 6mm LS-6020 lens
Additional Information
Warranty 90 days

Write a review

Please login or register to review

Arducam B0109 CMOS MT9V022 1/3-Inch 0.36MP Monochrome Camera Module

  • Brand: ArduCAM
  • Product Code:ArdC-B0109-Camera
  • Reward Points:48
  • Availability:In Stock
  • रo 4,564.00
  • रo 3,994.00

  • Price in reward points:4754

  • 5 or more रo 4,526.00
  • 15 or more रo 4,545.00
  • 30 or more रo 4,488.00
