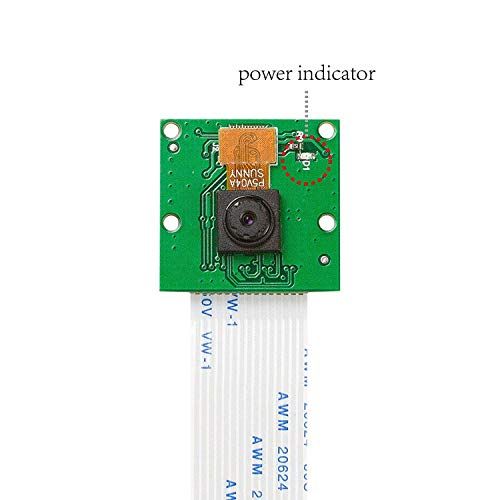

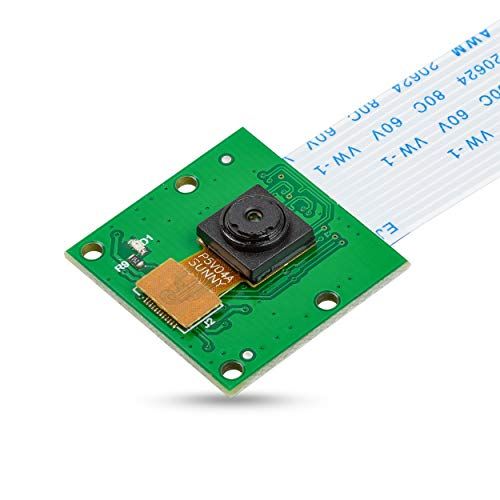

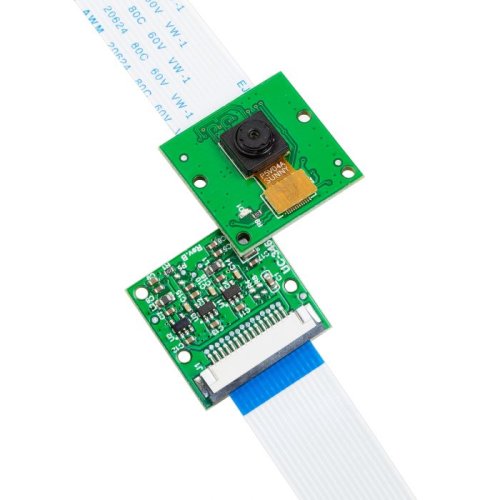

The board itself is small, about 25mm x 24mm, making it ideal for mobile or other applications where size and image quality are important. It connects to the Raspberry Pi via a short ribbon cable. The camera is connected to the BCM2835/BCM2836 processor on the Pi via a CSI bus that runs along the ribbon cable that connects the camera board to the Pi.

The sensor itself has a native resolution of 5 megapixels and has an onboard fixed focal length lens. In terms of still images, the camera is capable of capturing 2592 x 1944 pixel still images and also supports 1080p30fps, 720p60fps and 640x480p60/90fps video.
Specifications:
SensorOmnivision OV5647 sensor
Optical Size1/4” (OV5647)
Resolution5MP 2592×1944
Frame Rates1080p 30 fps, 720p 60fps, 480p 90fps
Focus Distance1 m to infinity
Field of View(FOV)54°(H), 41°(V)
Focus TypeFixed Focus
Full-frame SLR lens equivalent35mm
Camera Board Size24mm x 25mm
Peaking Current300mA

Applications:
  • OctoPi, Raspbian
  • MotionEye for 3D printer monitoring
  • Surveillance camera
  • PC multimedia
  • Other Pi camera projects
  • Digital still cameras,etc.
Note:
  • Cable for Pi zero is not included in the package
  • Raspberry Pi board is not included in the package
Documentations:

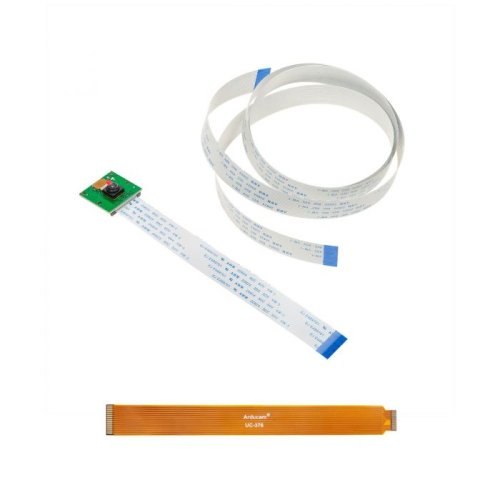

Package Includes:

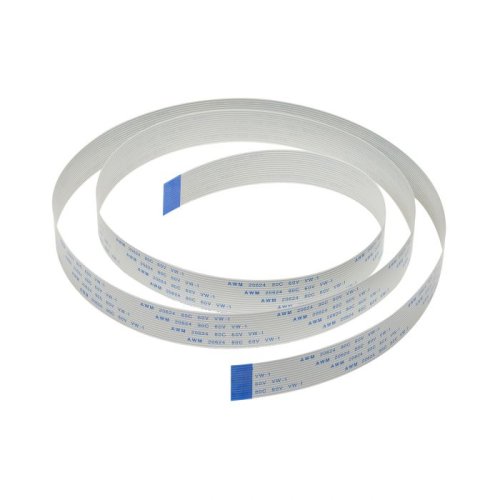

  • 2 x flex ribbon cables (15cm/100cm) for Raspberry Pi A&B series
  • 1 x OV5647 Camera Module

Write a review

Please login or register to review

ArduCAM B0033R 3D Printer Camera, Arducam for Raspberry Pi 4/3B+/3 Camera, Octoprint Octopi Camera to Monitor 3D Printer, with 3.28FT/100CM Long Extension Flex Ribbon Cable for Pi

  • Brand: ArduCAM
  • Product Code:ArdC-B0033R-3D-Printer-Camera
  • Reward Points:4
  • Availability:In Stock
  • रo 391.00
  • रo 342.00

  • Price in reward points:408

  • 33 or more रo 390.00
  • 67 or more रo 388.00
  • 167 or more रo 386.00
  • 333 or more रo 385.00
