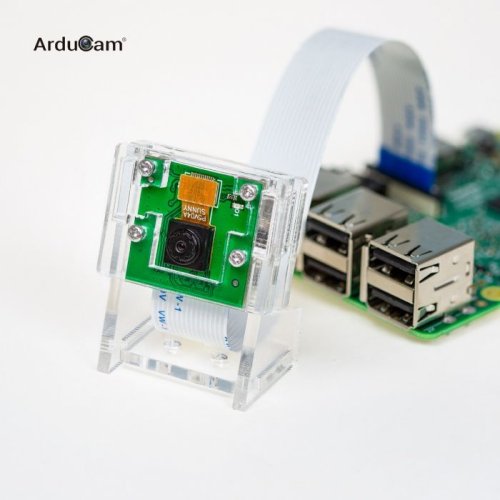

The board itself is tiny, at around 25mm x 24mm, which makes it perfect for mobile or other applications where size and image quality are important. It connects to Raspberry Pi by way of a short ribbon cable. The camera is connected to the BCM2835/BCM2836 processor on the Pi via the CSI bus, a higher bandwidth link that carries pixel data from the camera back to the processor. This bus travels along the ribbon cable that attaches the camera board to the Pi.
It attaches to Raspberry Pi by way of one of the two small sockets on the board upper surface. This interface uses the dedicated CSI interface, which was designed especially for interfacing with cameras.
Specifications:
Sensor | Omnivision OV5647 sensor |
Optical Size | 1/4” (OV5647) |
Resolution | 5MP 2592×1944 |
Frame Rates | 1080p 30 fps, 720p 60fps, 480p 90fps |
Focus Distance | 1 m to infinity |
Focal Length | 3.60mm |
Field of View(FOV) | 54°(H), 41°(V) |
Focus Type | Fixed Focus |
Full-frame SLR lens equivalent | 35mm |
Dimension | 24mm x 25mm |
Peaking Current | 300mA |
Applications:
- Cellular phones,PDAs,Toys
- Other battery-powered products
- Can be used in all Raspberry Pi platforms
- PC multimedia
- Digital still cameras,etc.
Documentations:
- User Guide – Arducam 5MP OV5647 Standard Pi Camera
- Installation Guide – Arducam 5MP OV5647 Standard Pi Camera Module with case

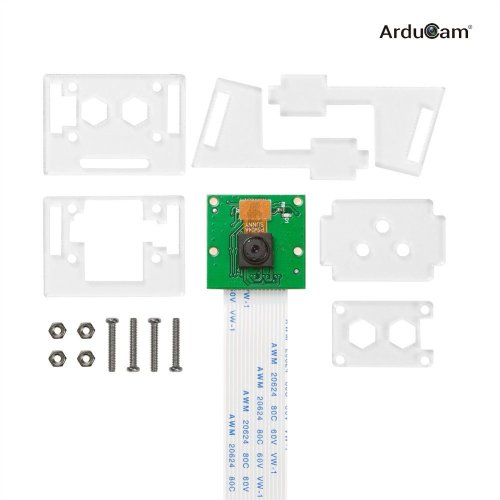

Package Includes:
- 1 x 5MP Mini Camera OV5647 Sensor for Raspberry Pi official Board
- 1 x 15cm 15pin FPC cable
- 1 x ABS camera case
- 4 x M1.8 5 self-tapping screws
Sensor Specifications | |
Resolution | 5MP 1080P |
Lens Specifications | |
Focusing Range | 1 m to infinity |
Field of View | 2.0 x 1.33 m at 2 m |
Angle of View | 54 x 41 degrees |
Additional Information | |
Warranty | 90 days |

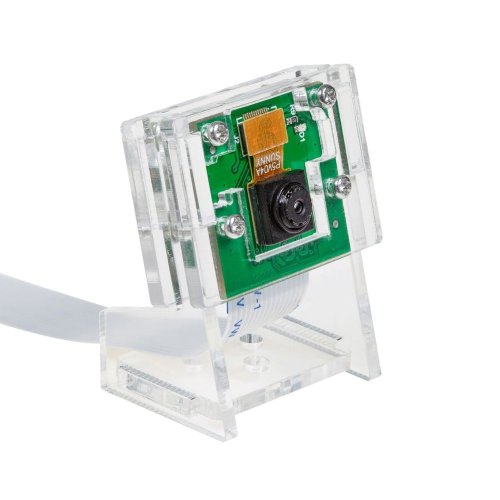

Arducam B0033C Raspberry Pi Camera Module with Case, 5MP 1080P for Raspberry Pi 3, 3 B+ and More
- Brand: ArduCAM
- Product Code:ArdC-B0033C-RPI-Camera
- Reward Points:4
- Availability:In Stock
- रo 391.00
-
रo 342.00
- Price in reward points:408
-
- 33 or more रo 390.00
- 67 or more रo 388.00
- 167 or more रo 386.00
- 333 or more रo 385.00
