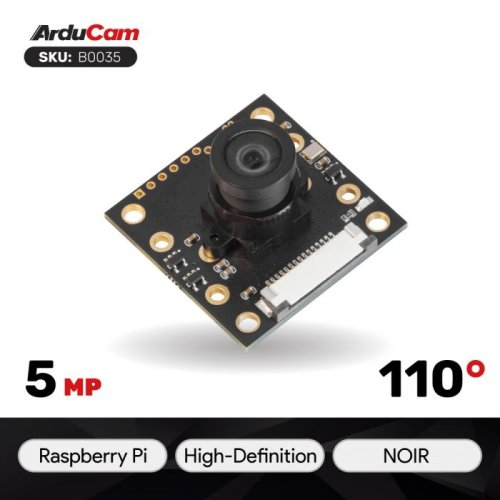

The Pi NoIR is a Raspberry Pi camera module with no Infrared filter for night time and low light photography using an Infrared light. Useful for wildlife research, science projects, night time security or making artistic photo’s.
The Raspberry Pi camera module has been used for many things such as a security camera, for time lapse photography and even sent high up into the atmosphere on a weather balloon.
With the wide range of project Raspberry Pi’s are being used for, some users were finding that the camera was no good when it was being used in low light with an Infrared light source. Unfortunately for them the Raspberry Pi camera module has a Infrared filter built in which makes it unusable for their project. In response we come up with a camera module just for these type of projects called the Pi NoIR camera. It is the same as the standard camera module but without an IR filter.

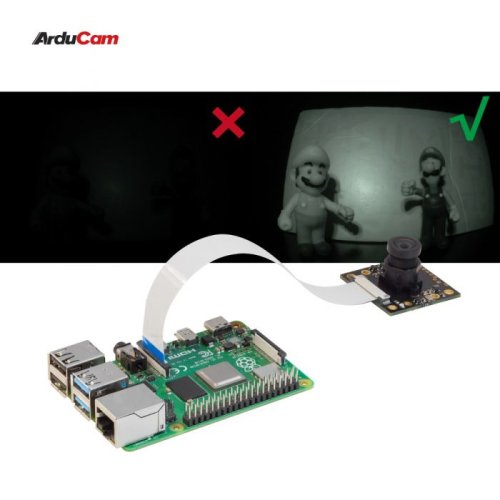

Without the Infrared filter the camera can be used for night time photography, night time security or for any project where the scene will be lit by an IR light. Without a filter the camera sensor can see short wavelength IR light around 800nm which is the IR wavelengths not generated with heat but just beyond the visible red light in the spectrum.

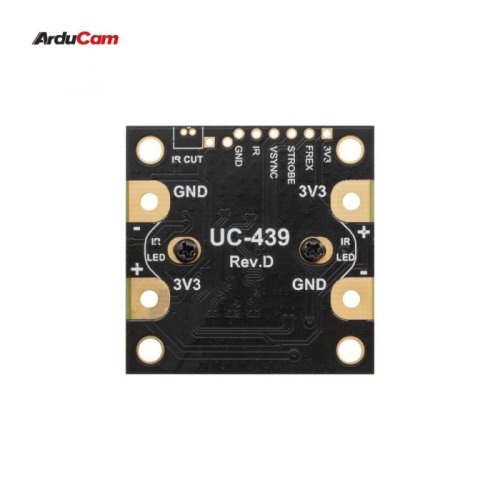

The camera has the same specifications as the standard camera module but has a black circuit board so it can be told apart from the standard green camera board.
Specifications:
Sensor | Omnivision OV5647 sensor |
Optical Size | 1/4” (OV5647) |
Resolution | 5MP 2592×1944 |
Frame Rates | 1080p 30 fps, 720p 60fps, 480p 90fps |
IR Sensitivity | without IR-cut filter |
Field of View(FOV) | 110°(H) |
Focus Type | Manual Focus |
Lens Type | M12 Lens |

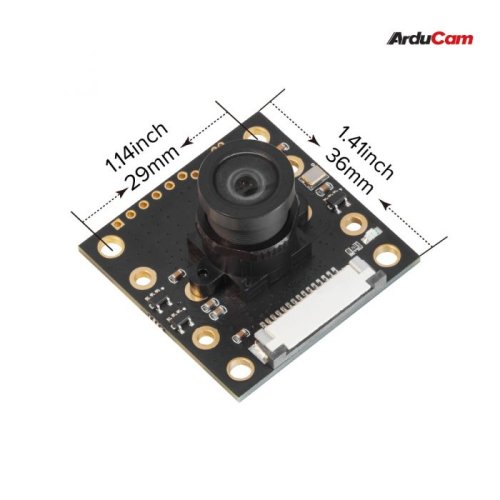

Dimension | 36mm x 36mm |
Peaking Current | 300mA |
Applications:
- Home security
- Science project
- Robot cameras
- Wildlife cameras
- Night/Low Light photograph
- Making artist photo, etc.
Note:
- Raspberry Pi board is not included in the package
Documentations:
- Sensor Datasheet – OmniVision OV5647
- Arducam Documentation – Arducam Cameras for Raspberry Pi
- Blog – Arducam NoIR OV5647 M12 Mount Pi Camera
- Lens Options – Arducam M12 Mount Lens Kit, Arducam Low Distortion M12 Mount Lens Kit
Package Includes:
- 1 x OV5647 NoIR Camera Board /w M12x0.5 mount for Raspberry Pi

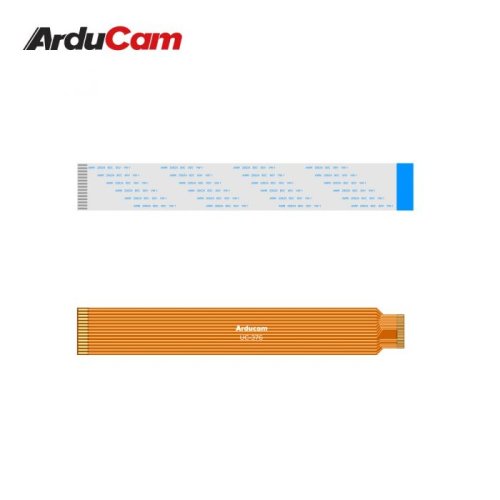

- 1 x 15cm 15pin FPC cable
- 1 x 15cm 15-22pin FPC cable
ArduCAM B0035 OV5647 NoIR Camera Board /w M12x0.5 mount for Raspberry Pi 4/3B+/3 Camera
- Brand: ArduCAM
- Product Code:ArdC-B0035-OV5647-NoIR-Camera-Board
- Reward Points:20
- Availability:In Stock
- रo 1,956.00
-
रo 1,712.00
- Price in reward points:2038
-
- 7 or more रo 1,948.00
- 13 or more रo 1,940.00
- 33 or more रo 1,932.00
- 67 or more रo 1,924.00
Related Products
Tags: ArduCAM, OV5647, Camera Board, Raspberry Pi
