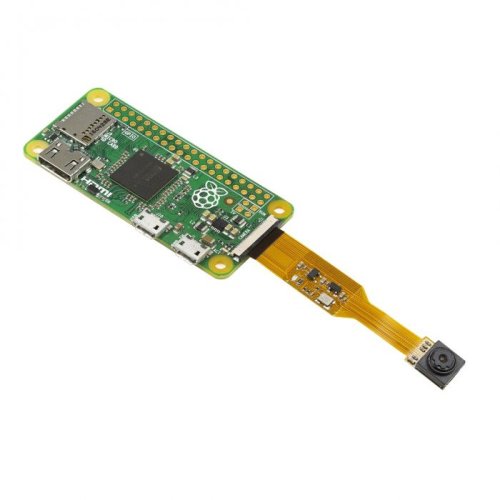

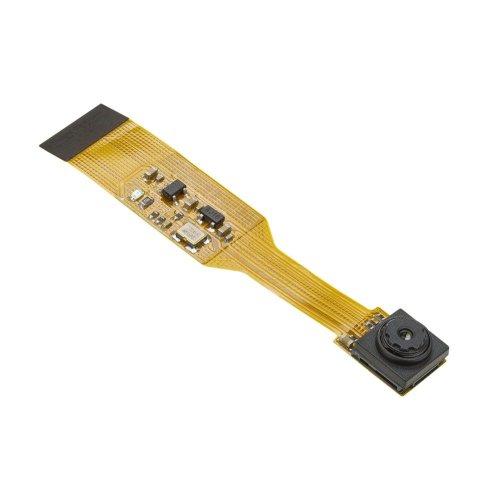

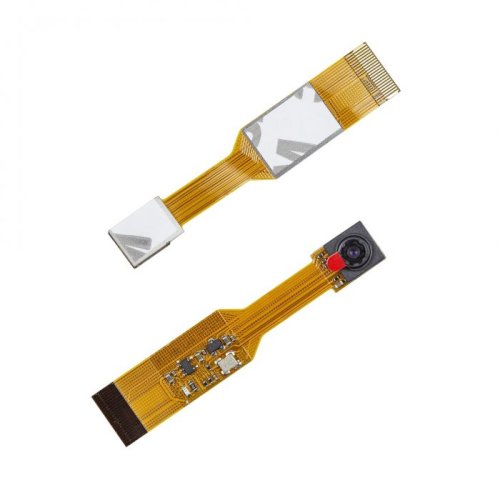

The board itself is tiny, at around 60mm x 11.5mm. The neck width of the camera module is 6mm, this highlight making it perfect for endoscope, spy surveillance or other applications where size and image quality are important. It connects to Raspberry Pi Zero by way of a short ribbon cable. The camera is connected to the BCM2835 processor on the Pi Zero via the CSI bus, a higher bandwidth link which carries pixel data from the camera back to the processor.

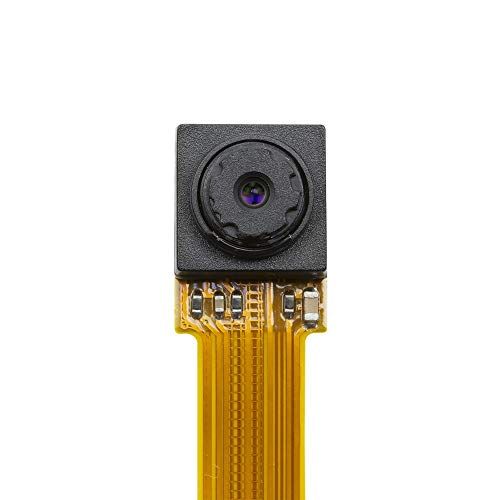

This bus travels along the ribbon cable that attaches the camera board to the Pi. The sensor itself has a native resolution of 5 megapixel, and has a fixed focus lens onboard. In terms of still images, the camera is capable of 2592 x 1944 pixel static images, and also supports 1080p30. 720p60 and 640x480p60/90 video. It attaches to Raspberry Pi Zero by way of the small sockets on the board upper surface. This interface uses the dedicated CSI interface, which was designed especially for interfacing to cameras. The CSI bus is capable of extremely high data rates, and it exclusively carries pixel data.
Specifications:
Sensor | Omnivision OV5647 sensor |
Optical Size | 1/4” (OV5647) |
Resolution | 5MP 2592×1944 |
Frame Rates | 1080p 30 fps, 720p 60fps, 480p 90fps |
Focus Distance | 1 m to infinity |
Field of View(FOV) | 64°(H), 48°(V) |
Focus Type | Fixed Focus |
Lens Type | M6 Lens |
Dimension | 60mm x 11.5 mm flex cable, neck wide is 6mm |
Applications:
- Cellular phones,PDAs,Toys
- Spy camera
- Other battery-powered products
- PC multimedia
- Digital still cameras,etc.
Note:
- Raspberry Pi Board is Not included in the package
Documentation:
Package Includes:
- 1 x Arducam B006603 Spy Raspberry Pi Zero Camera Module, 1/4 Inch 5MP OV5647 Mini IR camera with Flex Cable for pi zero
Sensor Specifications | |
Sensor type | 1/4 inch OV5647 sensor in a fixed-focus lens, angle of view: 72.4° No IR filter, sensitive to IR light |
Resolution | 5MP 2592 x 1944, Max video resolution: 1080p Max video resolution: 1080p |
Lens Specifications | |
Focusing Range | 72.4 degree |
Angle of View | 60mm × 11.5mm × 5mm |
Physical Attributes | |
Dimensions | Fixed Focus:1 m to infinity |
Arducam B006603 Spy Raspberry Pi Zero Camera Module, 1/4 Inch 5MP OV5647 Mini IR camera with Flex Cable for pi zero
- Brand: ArduCAM
- Product Code:ArdC-B006603-Spy-Camera
- Reward Points:18
- Availability:In Stock
- रo 1,695.00
-
रo 1,483.00
- Price in reward points:1765
-
- 15 or more रo 1,681.00
- 40 or more रo 1,688.00
- 75 or more रo 1,667.00
