This 5MP NOIR pi video camera is designed for both daylight and night vision photography with build-in IR cut filter and two infrared LED illuminator boards. The IR cut filter and the infrared LEDs are automatically ON/OFF according to the light environment. The camera is fully supported all the Raspberry Pi board versions including Pi3 and Pi Zero. It can be widely used in wild life photography, agriculture NDVI applications and etc.
Features:
  • Day And Night Image: Built-in motorized IR-CUT Filter, switched in and out automatically based on light condition (only visible light during the daylight and infrared sensitivity during the night with IR LEDs on), has a better low light performance

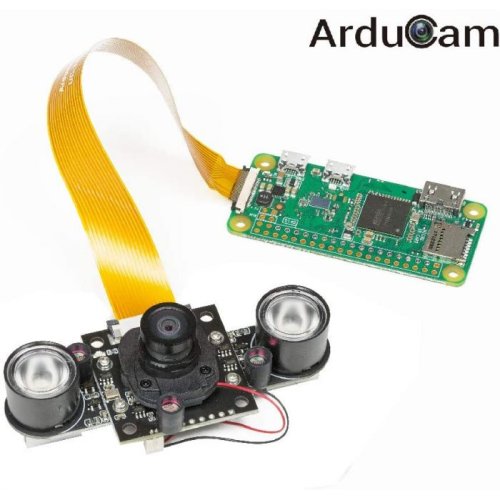

  • Support all Raspberry Pi Models: Support Raspberry Pi Zero & W, Pi 4 b, 3 b+, 3 b, and other A&B series

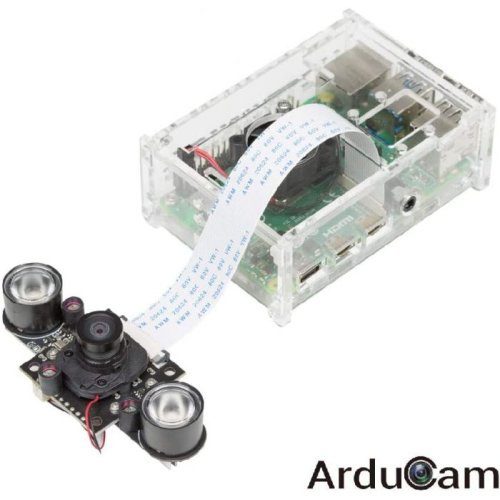

  • Acrylic Holder: Customized designed for this IR-CUT camera board and IR LEDs, make the camera stand or be mounted somewhere you like

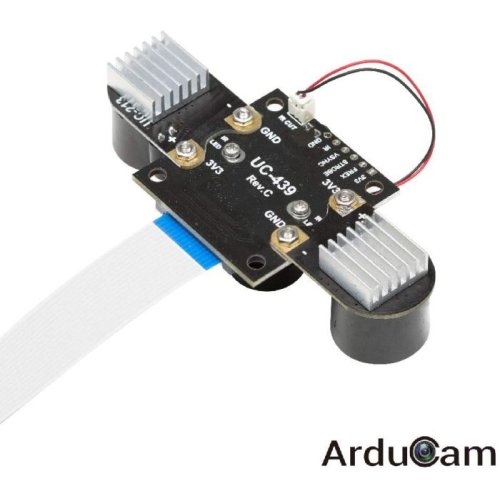

  • Accessories – 2 heat sinks for IR LED boards and 1 ribbon cable for Pi Zero included.
Specifications:
SensorOmnivision OV5647 sensor
Optical Size1/4” (OV5647)
Resolution5MP 2592×1944
Frame Rates1080p 30 fps, 720p 60fps, 480p 90fps
Focal Length2.25mm
Focus Distance30cm to infinity
Field of View(FOV)130°(D), 105°(H)
IR SensitivityMotorized IR Cut filter
Power Output3.3V power output for IR LED
Peaking Current300mA

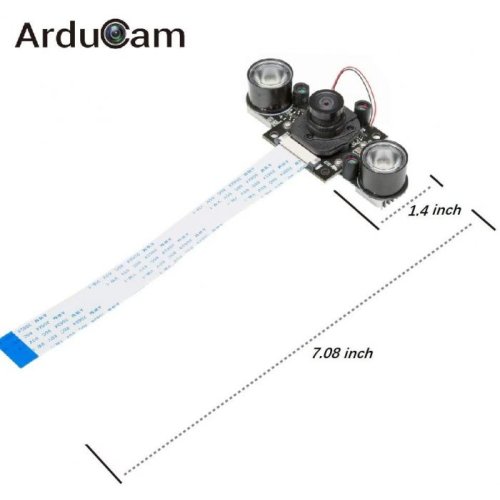

Dimension36×36 mm, 4 screw mounting holes
Applications:
  • Home surveillance
  • Smart Robots
  • Monitoring 3D printer
  • Wildlife photography
  • NDVI in agriculture, etc.
Note:
  • Raspberry Pi board is not included in the package
Documentations:

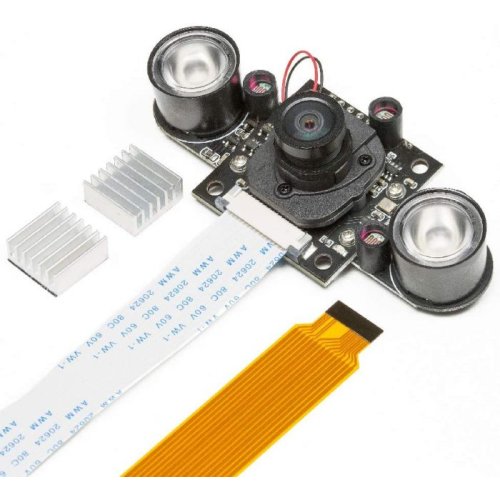

Package Includes:

  • 1 x RPi IR-CUT Camera
  • 2 x Infrared LED Board
  • 2 x heat sink
  • 1 x 15cm (5.9 inch) flat ribbon cable 15pin 1.0mm pitch to 15 pin 1.0mm pitch
  • 1 x15cm (5.9 inch) flat ribbon cable 15 Pin 1.0mm pitch to 22 pin 0.5mm pitch
Sensor Specifications
Resolution 5MP 2592x1944
Lens Specifications
Field of View 130 degree (D) x 105 degree (H)

Write a review

Please login or register to review

ArduCAM B003504 for Raspberry Pi NOIR 5MP OV5647 Camera Module Motorized IR-CUT Filter for Daylight and Night vision Support Pi 4 Zero Pi 3 Pi B/2B/ B/B+/A

  • Brand: ArduCAM
  • Product Code:ArdC-B003504-RPI-NOIR-5MP-OV5647
  • Reward Points:27
  • Availability:In Stock
  • रo 2,608.00
  • रo 2,282.00

  • Price in reward points:2716

  • 10 or more रo 2,586.00
  • 25 or more रo 2,575.00
  • 50 or more रo 2,564.00
