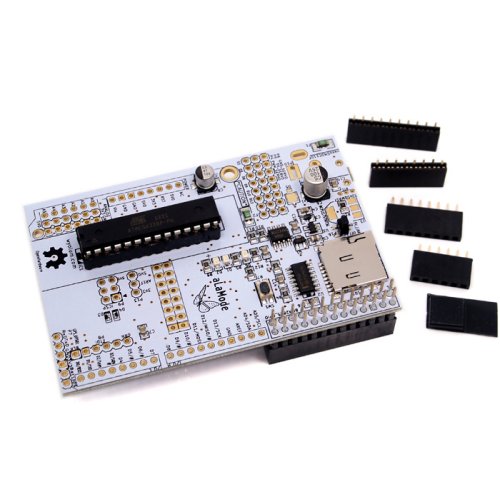

Alamode - Arduino Compatible Raspberry Pi Plate

Alamode is an Arduino compatible development board that extends that lovin' feeling to the Raspberry Pi.  With Raspberry Pi ‘A la Mode, you can write a program on the Pi in any language you want, to control or monitor your Arduino application, making Internet integration and control super easy. In addition you can even program the AlaMode directly from the Pi.  Or, turning things around, think of Raspberry Pi as a highly capable ethernet and display shield for the Alamode!

Features

• Fully compatible with Arduino, including Arduino shields

• Plugs in to Raspberry-Pi GPIO header

• Voltage safe – Bidirectional translator automagically converts between 3.3V for Raspberry-Pi and 5V for Arduino

• Same form factor as Raspberry-Pi

• 5V Micro-USB socket for Power In

• Servo Headers with alongwith GND and 5V headers for easy connection of 3 wire servos

• Micro-SD card for data storage and Arduino use

• High precision RTC chip with battery backup (CR1632 battery not included). Possible to set time on Raspberry-Pi without Internet connection

• Convenient headers for FTDI, ICSP, Analog Reference (3V3 or 5V0), GPS module,

• Can be powered independently, or via the Raspberry-Pi 5V supply

• Compatible with Raspberry Pi A+,B,B+.

Documents

• Datasheet

• User Manual

• Visithere for instructions, examples and code downloads.

• You can also join the discussion at the Wyolum forums.
