• Arducam's V3Link Camera Kit is built around a high-quality IMX477P sensor that adheres to the V3Link protocol, making it perfect for high-bandwidth, extended-range projects. The kit utilizes coaxial cables to ensure reliable power and data transmission up to 5 meters, providing low latency for optimal performance. With support for up to 2 IMX477P cameras and channel-switching capabilities, this kit is a versatile solution for various applications.

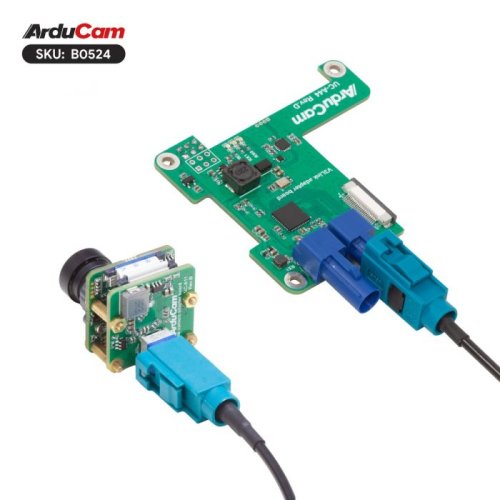

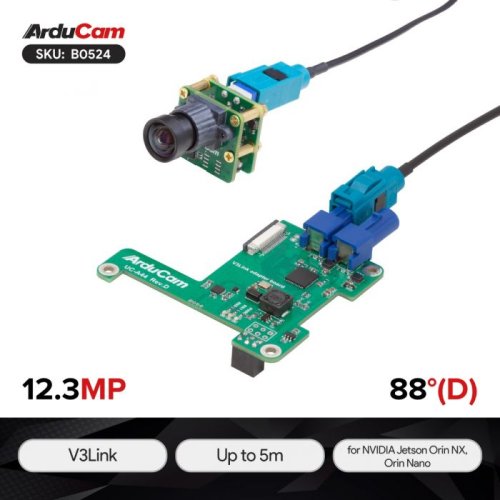

  • Designed for the NVIDIA Jetson Orin Nano/NX, the kit includes an IMX477P camera module with a pre-installed Tx board, a Rx adapter board for connecting to the Jetson development board, and a 1-meter coaxial cable, enabling remote camera deployment with minimal configuration.
  • V3Link, a cutting-edge technology developed by Texas Instruments, incorporates FPD-Link IP to integrate advanced driver assistance systems (ADAS), security cameras, industrial systems, and medical imaging into a single platform. Arducam's V3Link Camera Kit leverages this technology to combine long-range data transfer with embedded vision, offering a compact and efficient solution for a variety of high-performance vision projects.

Features:

  • NVIDIA Jetson Orin Nano/NX Compatibility: Designed specifically for the Jetson Orin NX and Orin Nano, this V3LINK camera kit ensures high bandwidth and long-range transmission for optimal performance.
  • High-performance IMX477P CMOS: Utilizes a 12.3-megapixel sensor for superior image quality with a 24*25mm camera board and M12 high-quality lens. The compact hardware supports Fakra Z Female to Female RF Coaxial Cable connections of up to 5 meters, enabling multi-camera access.

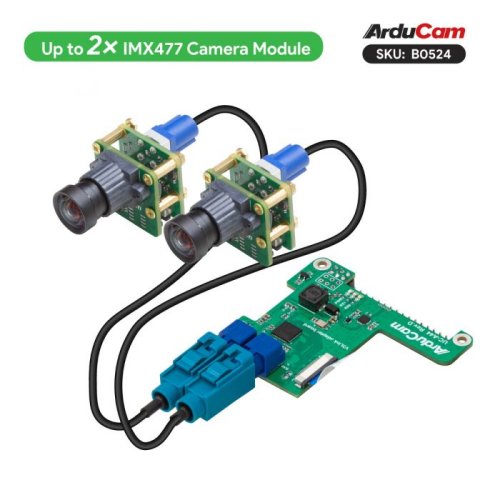

  • Adaptive Channel Management: Up to two 477P cameras of the same model can be connected for independent camera switching. This feature is suitable for applications ranging from automotive to medical imaging.
  • Cost-effective Dual-channel System: The dual-channel vision system reduces development costs thanks to its compact hardware architecture. It provides an efficient solution for integrating embedded cameras with V3LINK.
  • Plug & Play: Hot-swappable support on the camera side (Tx board) simplifies integration and allows you to quickly deploy your V3LINK Extension camera project with a simple configuration.
Specifications:
Image Sensor
SensorIMX477P
Still Resolution12.3 Megapixels
Color Filter TypeColor
Shutter TypeRolling
Optical Size1/2.3"
Output FormatRAW10 (RG10)
Pixel Size1.55 µm x 1.55 µm
Sensor Active Area4056(H) × 3040(V)
Video Modesl4t36.x:4032x3040@21fps,3840x2160@30fps,1920x1080@60fps
Lens
Focus TypeManual Focus
FOV88°(D)×75°(H)×60°(V)
Lens MountM12 (S-mount)
F.NOF2.8
E.F.L3.9mm
IR SensitivityIntegral IR-cut Filter, visible light only
Electrical and Mechanical
Operating Voltage3.3V
Operating Temp.32°F-158°F (0°C to 70°C)
Working CurrentMax: 300mA
Camera Board Size24 × 25 mm
Functionality and Compatibility
Supported PlatformNVIDIA Jetson Orin Nano/Orin NX
Supported OSJetPack/L4T (JetPack 6.0/L4T 36.3.0) and above

    Applications:

    • ADAS
    • Automotive
    • Security Cameras
    • Industrial Systems
    • Medical Imaging

      Documentations:

      Notes:

      • This kit supports only the official NVIDIA Orin NX and Orin Nano development kits; third-party development boards are not supported.

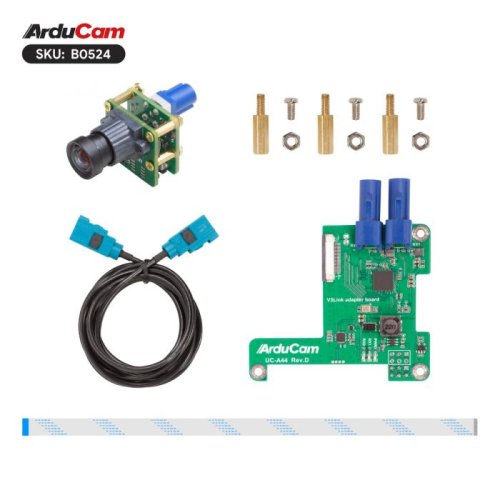

      Package Includes:

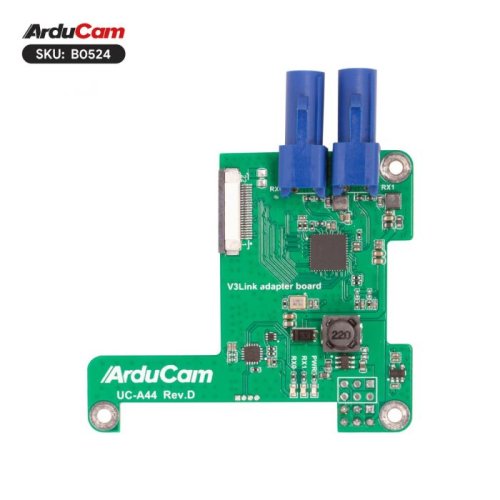

      • 1 x Arducam V3Link Rx adapter board
      • 1 x Arducam V3Link camera Tx board
      • 1 x 1m Fakra Z Female to Female RF Coaxial Cable
      • 1 x Arducam IMX477P Camera Module
      • 1 x 40mm 22-22pin FFC Cable
      • 1 x 30cm 22-22pin FFC Cable
      • 1 x Screw Pack

      Write a review

      Please login or register to review

      Arducam B0524 IMX477P V3Link FPD-Link SerDes Camera Kit for NVIDIA® Jetson Orin NX, Orin Nano

      • Brand: ArduCAM
      • Product Code:NR-Adrc-B0524-IMX477P-V3Link-FPD-Link-SerDes-Camera-Kit
      • Reward Points:135
      • Availability:In Stock
      • रo 12,985.00
      • रo 11,410.00

      • Price in reward points:13583

      • 2 or more रo 12,931.00
      • 5 or more रo 12,877.00
      • 10 or more रo 12,822.00
