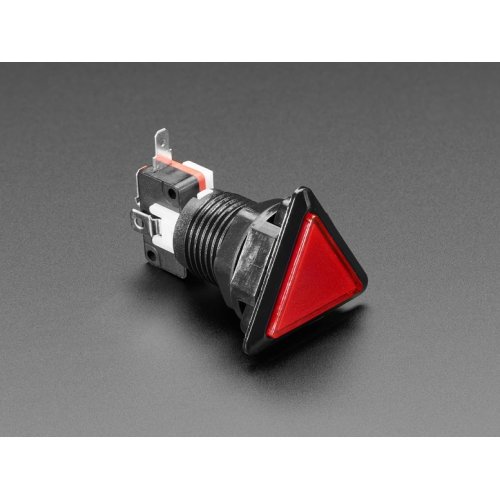

We've got plenty of round and square buttons, but these LED Illuminated Triangle Pushbuttons are welcome to the party. These make us think of 1960's or 70's Sci-Fi control board buttons. As everyone knows, triangular buttons are the most retro-futuristic of all button shapes. Get 6 of them together for a cool hexagonal arrangement, or just have one triangle at a time.

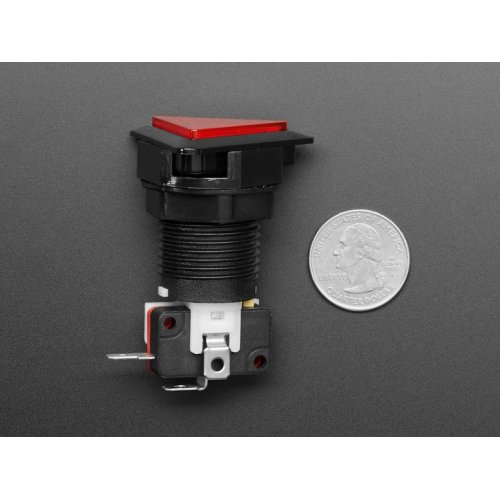

These buttons are medium-sized, large enough to press easily, but not too big that it gets in the way of your project panel. Each button contains a built-in LED that can be controlled separately from the switch action - either to indicate or just to look good.

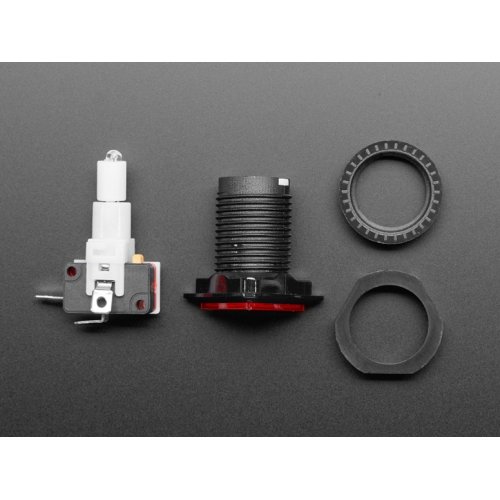

The body is a black plastic with the LED built inside. There are two contacts for the button and two contacts for the LED, one marked + and one -. The forward voltage of the LED is about 3V so connect a 220 to 1000 ohm resistor in series just as you would with any other LED to your 3V or higher power supply. We'll note that the LED this comes with is not so great. We really recommend a diffused LED but these come with a non-diffused one and it wasn't possible to get them customized.
