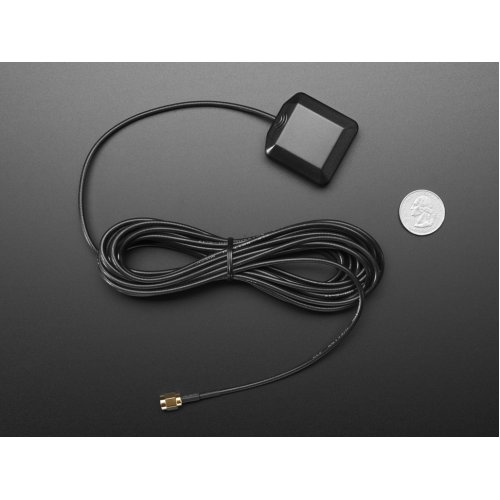

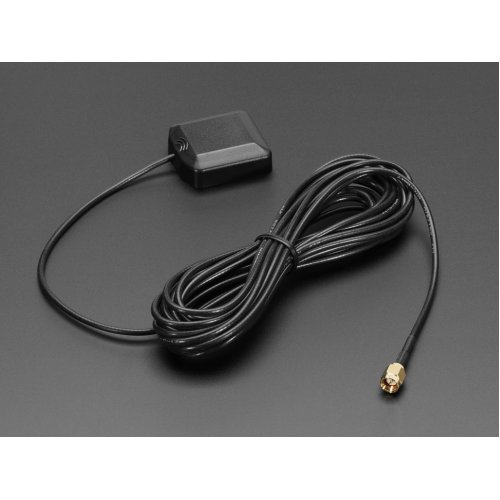

Give your Ultimate GPS V3 a boost with this external active antenna. This GPS antenna draws about 10mA and will give you an additional 28 dB of gain. It's got a 5 meter long cable so it will easily reach wherever you need it to. The antenna is magnetic so it will stick to the top of a car or truck (or any other steel structure)

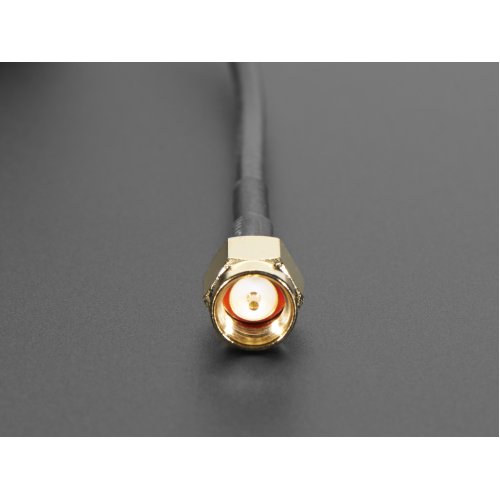

Comes with a standard SMA connector on the end. If you want to connect to our Ultimate GPS V3 module, be sure to pick up a uFL to SMA adapter!

GPS not included.

Note:

• IP66 enclosure is waterproof against hose-directed water, rain or snow, It's not intended to be submerged in water.

Specifications:

• Dimensions: L 41.2xW38.5xH13.3 mm
• Mount: Magnetic Antenna
• Antenna Color: Black
• Coaxial Cable: RG174 Length=5M (Option)
• Cable Connector: SMA MALE (Option)
• Operating Temperature: -30°C to +85°C
• Storage Temperature: -40°C to +90°C

Documents:

• Datasheet

Package Includes:

• 1 x Adafruit 960 GPS Antenna - External Active Antenna - 3-5V 28dB 5 Meter SMA
