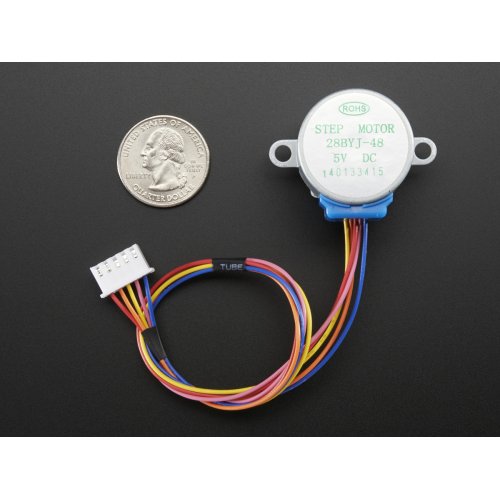

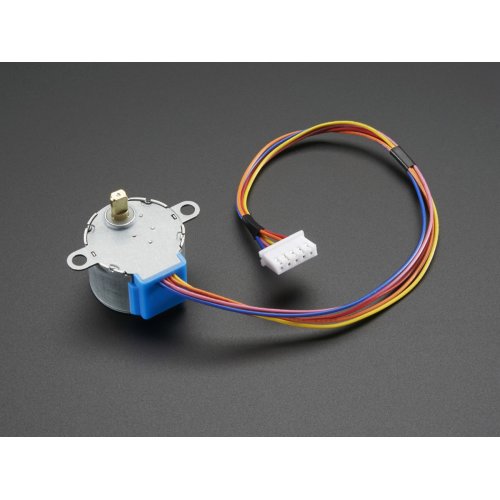

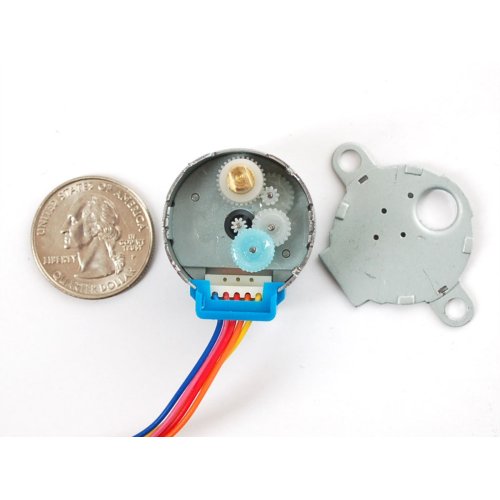

This is a great first stepper motor, good for small projects and experimenting with steppers. This uni-polar motor has a built in mounting plate with two mounting holes. There are only 32 step (11.25 degree) per revolution, and inside is a 1/16 reduction gear set. (Actually its 1/16.032 but for most purposes 1/16 is a good enough approximation) What this means is that there are really 32 x 16.032 steps per revolution = 513 steps! The shaft is flattened so its easy to attach stuff to it with a set-screw. A perfect first stepper motor and works well with the Motor Shield for Arduino.

Specifications:

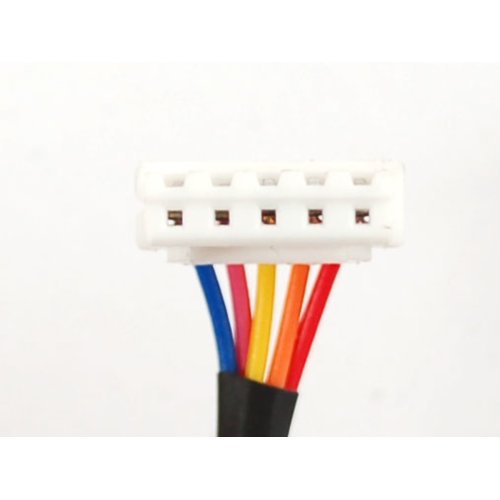

  • Unipolar stepper with 0.1" spaced 5-pin cable connector
  • 513 steps per revolution
  • 1/16.032 geared down reduction
  • 5V DC suggested operation
  • Weight: 37 g.
  • Dimensions: 28mm diameter, 20mm tall not including 9mm shaft with 5mm diameter
  • 9" / 23 cm long cable
  • Holding Torque: 150 gram-force x cm, 15 N x mm/ 2 oz-force x in
  • Shaft: 5mm diameter flattened
  • Approx. 42 ohm DC impedance per winding
Warranty: 30 days
  • Warranty will not apply if product fails or is damaged after delivery to you due to accident, abuse or misuse.
Package Includes:
  • 1 x Adafruit 858 Small Reduction Stepper Motor - 5VDC 32-Step 1/16 Gearing

Write a review

Please login or register to review

Adafruit 858 Small Reduction Stepper Motor - 5VDC 32-Step 1/16 Gearing - 28BYJ48

  • Brand: Adafruit
  • Product Code:Ada-858-28BYJ48
  • Reward Points:5
  • Availability:In Stock
  • रo 534.00

  • Price in reward points:564

  • 50 or more रo 468.00
  • 285 or more रo 466.00
