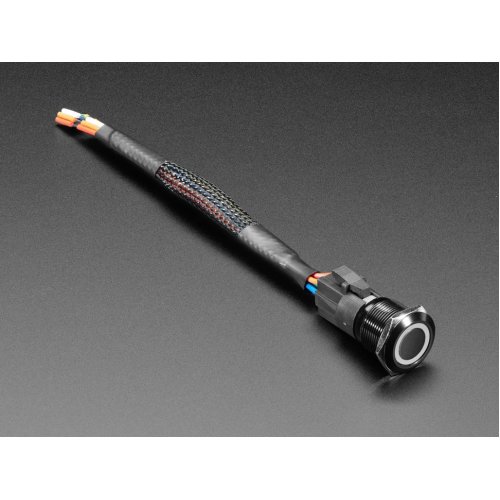

By popular demand, we now have rugged metal buttons with a full-color NeoPixel LED ring light! These chrome-plated metal buttons are rugged, but certainly not lacking in flair.

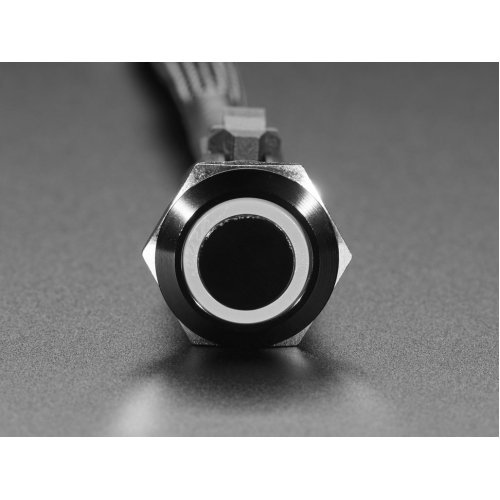

This is a 19mm Latching version of the RGB pushbutton. Simply drill a 19mm hole into any material up to 0.45" thick and you can fit these in place – there's even a rubber gasket to keep water out of the enclosure. On the front of the button is a flat metal actuator, surrounded by a plastic RGB LED ring.

To use the NeoPixel Color LED: Power the internal NeoPixels with +5V, ground and a NeoPixel signal line - it's a lot easier than wiring up 3 separate RGB LED diodes. Best of all, the NeoPixel signal is chainable, so you can light up multiple switches in one panel.

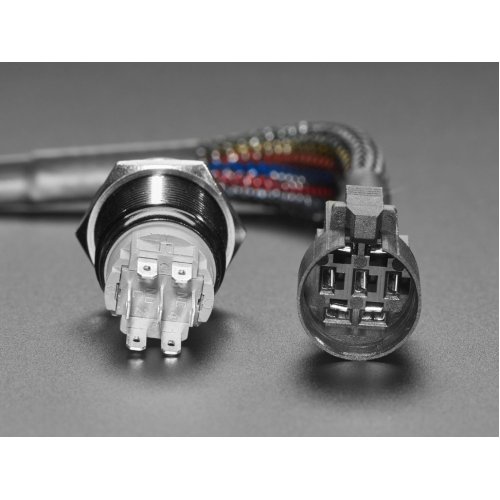

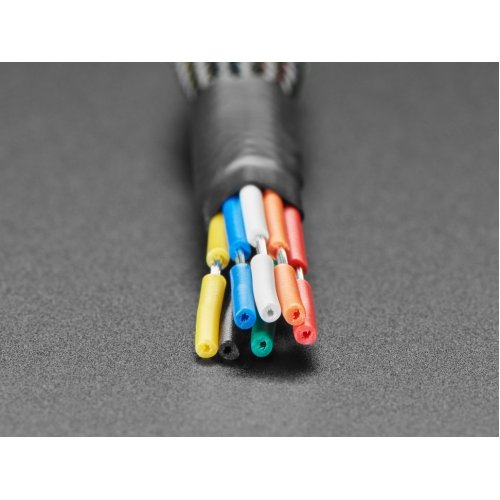

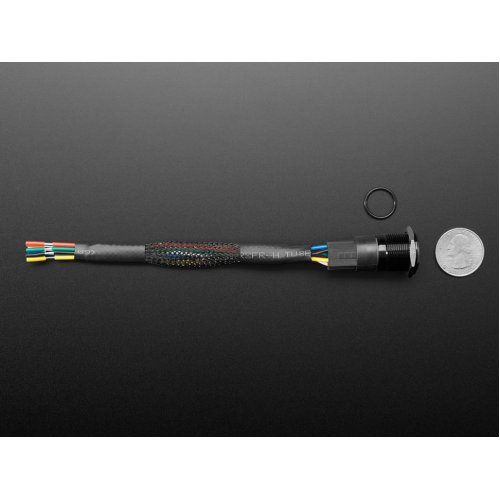

This pushbutton has both normally-open and normally closed contacts, and unlike our other rugged metal pushbuttons, these come with a detachable 7-wire cable harness to make wiring easy.

The switch and LED are electrically separated, so to change the color, use a microcontroller to both read the contact pins and control the NeoPixel.

Documents:

Package Includes:

  • 1 x Adafruit 5235 ChromaTek 19mm Rugged Latching Metal Pushbutton with NeoPixel - 19-B-L-F1

Write a review

Please login or register to review

Adafruit 5235 ChromaTek 19mm Rugged Latching Metal Pushbutton with NeoPixel - 19-B-L-F1

  • Brand: Adafruit
  • Product Code:NR-Ada-5235-Pushbutton
  • Reward Points:25
  • Availability:Order now and get it in 20 days
  • रo 2,423.00

  • Price in reward points:2556

  • 55 or more रo 2,413.00
  • 100 or more रo 2,144.00
