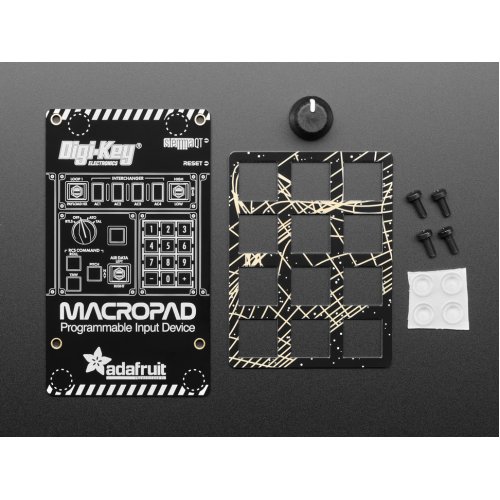

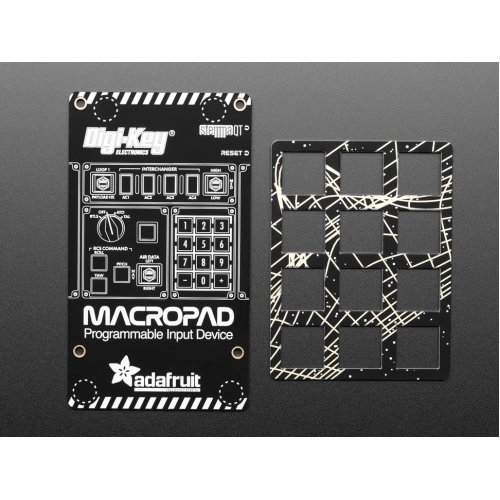

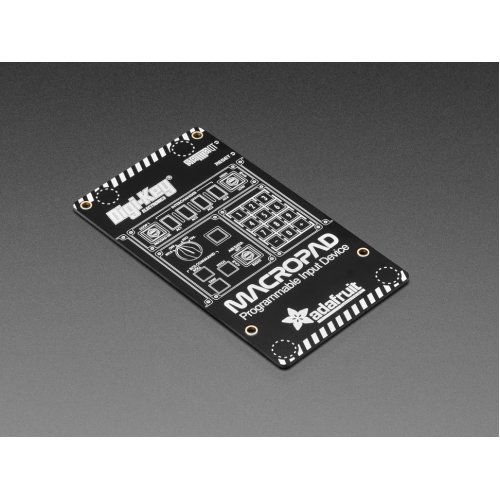

Use the included M3 screws to attach the bottom plate - it's symmetric so you can decide which side you'd like to have visible. Stick the rubber feet on the bottom to protect your desk from scratches. Fit the 12 keys you'd like to install into the keyplate, they'll snap in solidly and let you plug in all the keys at once. Finally, fit the D-shaft knob onto the encoder.

Lookin' good and ready to keeb!

Specifications:

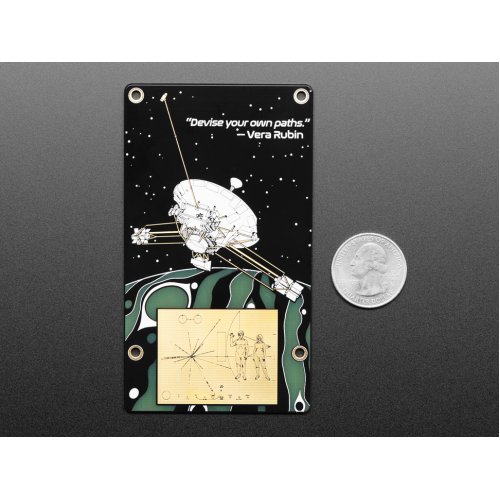

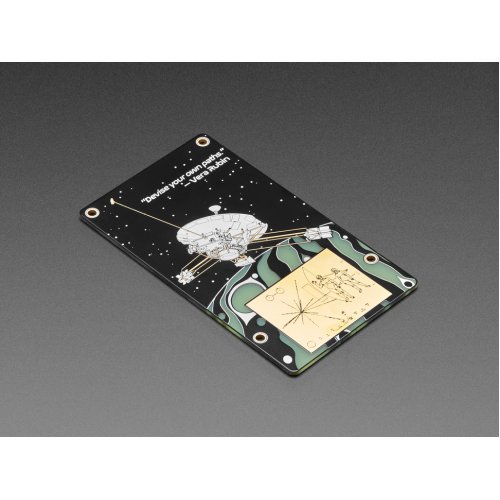

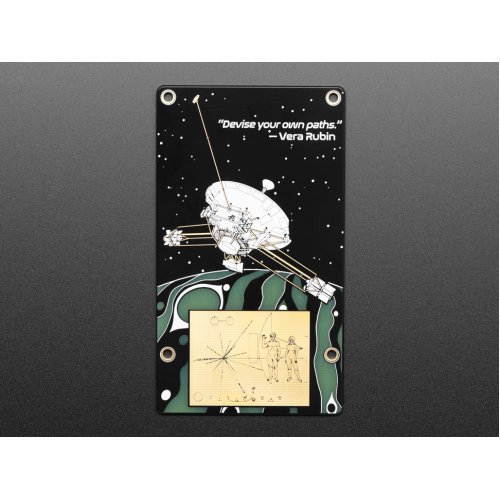

       Revision History: As of July 28th, 2021, we're shipping with updated silkscreens that features the Digi-Key logo (thanks to their support of ADABOX 019) and we've also turned the back gold plate into a Voyager Etched panel for extra space-ness! Product is otherwise the same

  • MacroPad dimensions : 104mm x 59.5mm x 1.5mm
  • 3x4 Grid Dimensions : 78.6mm x 59.7mm x 1.5mm

Package Includes:

Write a review

Please login or register to review

Adafruit 5103 MacroPad RP2040 Enclosure + Hardware Add-on Pack

  • Brand: Adafruit
  • Product Code:Ada-MacroPad-Enclosure
  • Reward Points:5
  • Availability:In Stock
  • रo 534.00

  • Price in reward points:564

  • 50 or more रo 468.00
  • 285 or more रo 466.00
