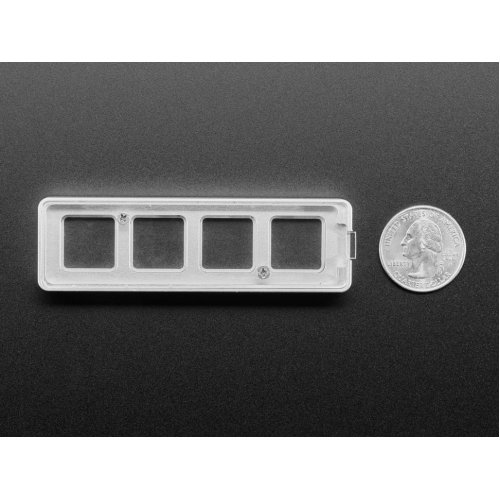

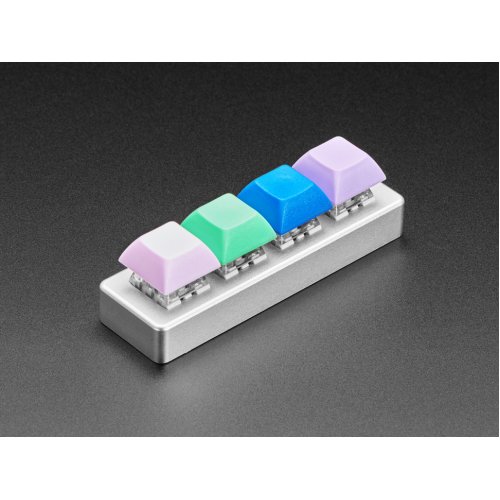

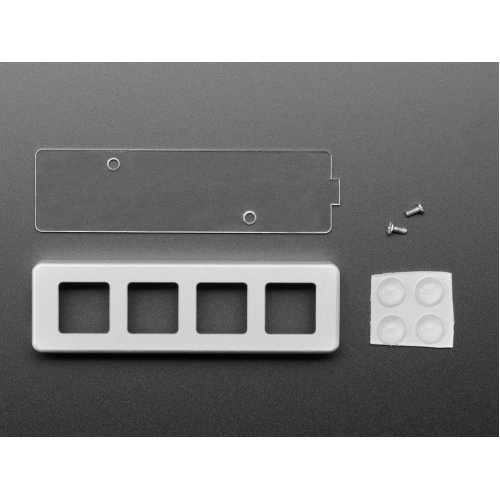

For all the DIY keebfans in the house here is a super sleek and sturdy 4-Key Aluminum Keypad Shell in Silver, the perfect base to begin your custom keypad project. You provide the PCB in the housing and bolt it into this base. Makes for a prettier build with more protection than just layers of PCB or acrylic. While it's designed for a custom PCB, you could also just snap in 4 keys and 'free wire' them. Comes with one anodized silver aluminum enclosure and a clear acrylic bottom that screws on with two M2 bolts.

Designed for use with any "Cherry MX" keyswitches or compatibles, like Kailh or Gateron.

Note: This is just the keypad shell. Don't forget to grab some keycaps and switches.

Specifications:

• Product Specs:
• Keyholes: 14 mm x 14 mm
• Key spacing: 19 mm
• screw type: M2
• screw length: 4 mm
• Inner dimensions for pcb:
• length: 80 mm
• width: 21.5 mm
• height: 5 mm
• screw receptacle diameter: 3 mm
• screw receptacle height: 3.5 mm
• distance from screw receptacle center to end (length): 21 mm
• distance from screw receptacle center to end (width): 3.5 mm
• End connector dimensions:
• outer length: 8 mm
• outer height: 4 mm
• inner length: 11.75 mm
• inner height (from inner bottom to top of outer connector opening height): 1 mm
• inner width: 3 mm

Warranty: 30 days

• Warranty will not apply if Product fails or is damaged after delivery to you due to accident, abuse or misuse.

Package Includes:

• 1 x Adafruit 5073 Four Key Silver Aluminum Keypad Shell Enclosure - MX Compatible Switches
