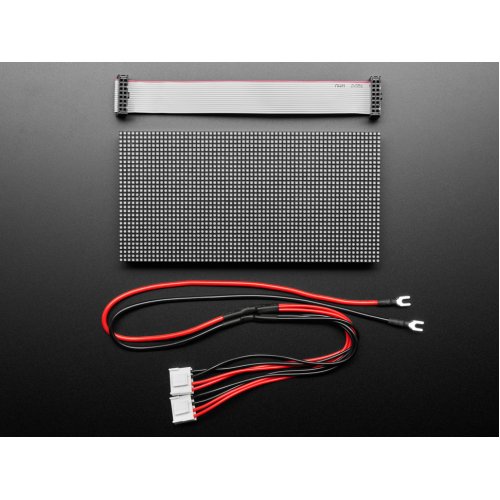

Bring a little bit of Times Square into your home with this sweet 64 x 32 square RGB LED matrix panel. These panels are normally used to make video walls.

This version is the 2.5mm pitch 64x32 RGB LED Matrix. Please note you cannot use an Arduino UNO to drive this size, it's way too big! Use an Arduino Mega, Raspberry Pi, BBB or other device that can handle displaying to RGB matrices and has plenty of RAM.

This is a lot like our 3mm pitch 64x32 RGB LED matrix panel, but the LEDs are eeeven closer, at a tight 2.5mm (P2.5) pitch. It's made to look good indoors, even with a wide-angle view (160 degrees), and look great in ambient light. If you are looking for a wider pitch for a farther view distance, check out our 6mm pitch 64x32 RGB LED Matrix or our 5mm pitch 64x32 RGB LED Matrix.

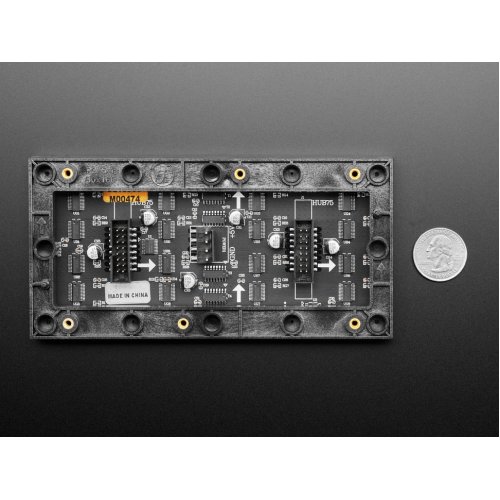

This matrix has 2048 bright RGB LEDs arranged in a 64x32 grid on the front. On the back, there is a PCB with two IDC connectors (one input, one output: in theory you can chain these together) and 12 16-bit latches that allow you to drive the display with a 1:16 scan rate.

These displays are technically 'chainable' - connect one output to the next input - but our Arduino example code does not support this (yet). It requires a high-speed processor and more RAM than the Arduino has!

These panels require 13 digital pins (6-bit data, 7-bit control) and a good 5V supply, up to 4A per panel. We suggest our 4A regulated 5V adapter and then connecting a 2.1mm jack.
