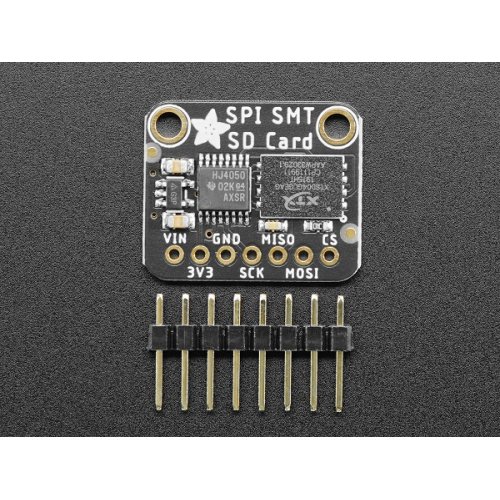

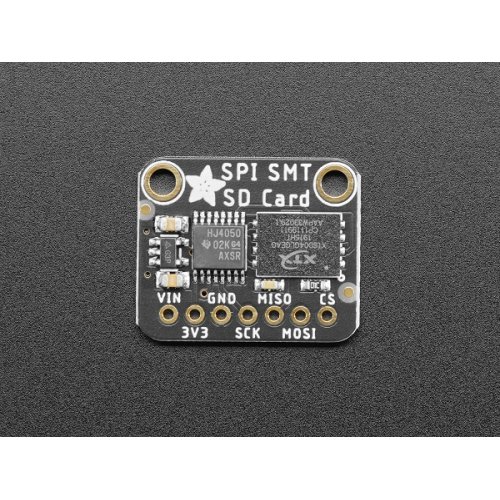

This breakout is for a fascinating chip - it looks like an SPI Flash storage chip but its really an SD card, in an SMT chip format. What that means is that you wire up like an SD card breakout, and use the SD card libraries you already have for your microcontroller.

For some use cases, such as data logging in a high-vibration device where you don't want the SD card to come loose, or for when you need to reduce size, or when the microcontroller provides a USB mass storage interface, this chip could very useful.

Specifications:

Capacity: 4Gbit (512MByte)
Operation Conditions Temperature Range: Ta = -30 to +85 degrees centigrade
Storage Conditions Temperature Range: Tstg = -40 to +85 degrees centigrade
Support up to 50Mhz clock frequency
Built-in HW ECC Engine and highly reliable NAND management mechanism
Write speed up to class 8

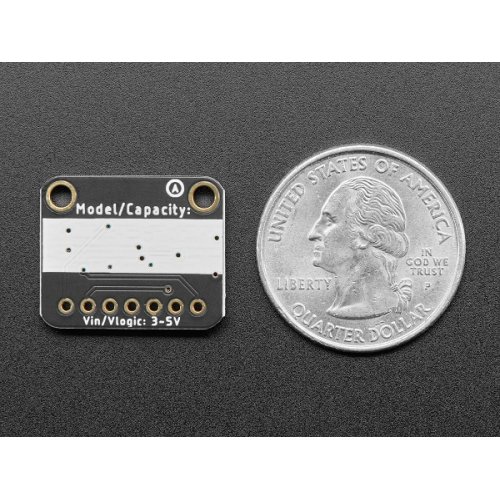

Product Dimensions: 21.4mm x 17.7mm x 2.9mm / 0.8" x 0.7" x 0.1"

Warranty: 30 days

Warranty will not apply if Product fails or is damaged after delivery to you due to accident, abuse or misuse.

Package Includes:

1 x Adafruit 4899 SPI Flash SD Card - XTSD 512 MB

Adafruit 4899 SPI Flash SD Card - XTSD 512 MB

Brand: Adafruit
Product Code:Ada-4899-SPI-XTSD
Reward Points:10
Availability:In Stock

रo 1,025.00
Price in reward points:1082
50 or more रo 897.00
150 or more रo 893.00

Qty

0 reviews / Write a review
