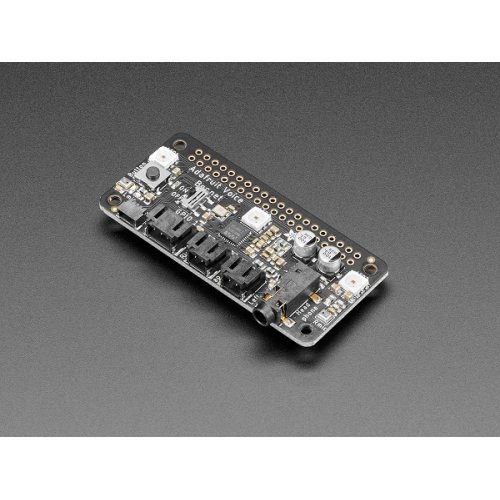

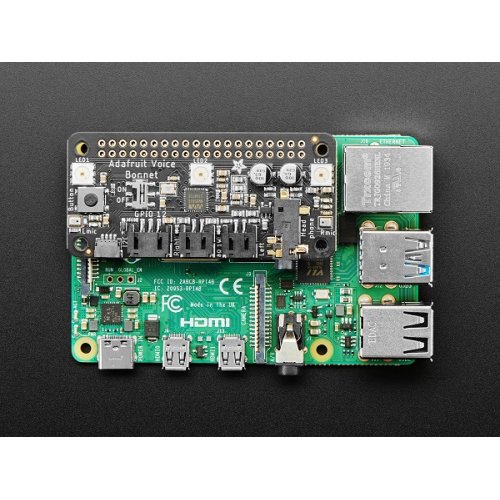

Your Raspberry Pi computer is like an electronic brain - and with the Adafruit Voice Bonnet you can give it a mouth and ears as well! Featuring two microphones and two 1 Watt speaker outputs using a high quality I2S codec, this Pi add-on will work with any Raspberry Pi with a 2x20 connector - from the Pi Zero up to the Pi 4 and beyond.
The on-board WM8960 codec uses I2S digital audio for great quality recording and playback - so it sounds a lot better than the headphone jack on the Pi . We put ferrite beads and filter capacitors on every input and output to get the best possible performance, and all at a great price.

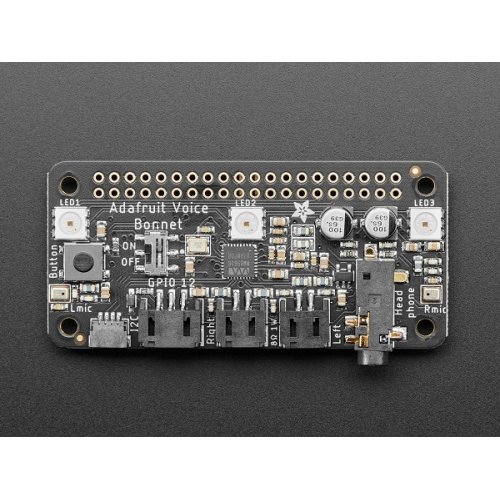

With the extra space on the PCB we also added some bonus extras
- Push button - Use to change modes, activate the voice assistant, anything you like!
- Three DotStar RGB LEDs - add LED feedback or make a rainbow light show
- STEMMA QT connector
- 3 Pin JST STEMMA connector
Specifications:
- Product Dimensions: 65.2mm x 33.3mm x 11.0mm / 2.6" x 1.3" x 0.4"
- Product Weight: 6.0g / 0.2oz
Package Includes:
- 1 x Adafruit Voice Bonnet for Raspberry Pi
Adafruit 4757 Voice Bonnet for Raspberry Pi
- Brand: Adafruit
- Product Code:Ada-4757-Bonnet
- Reward Points:27
- Availability:In Stock
-
रo 2,693.00
- Price in reward points:2693
-
- 50 or more रo 2,357.00
- 60 or more रo 2,347.00
