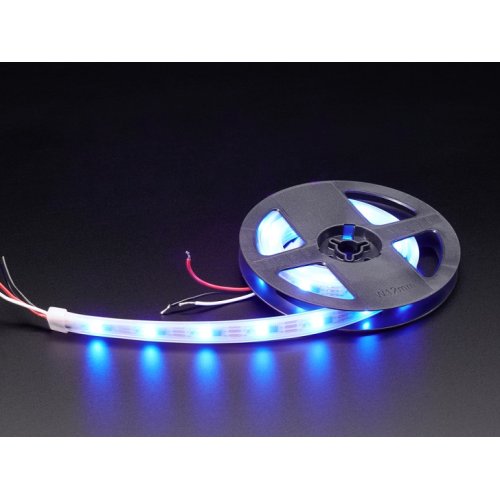

What new iteration of NeoPixel strip is this? Roll out the black light and disco ball! It's an Adafruit NeoPixel Ultraviolet Strip with 32 LEDs per meter! Each order comes as a single one meter long strip. If you order multiple meters, you'll get that many individual 1 meter pieces.

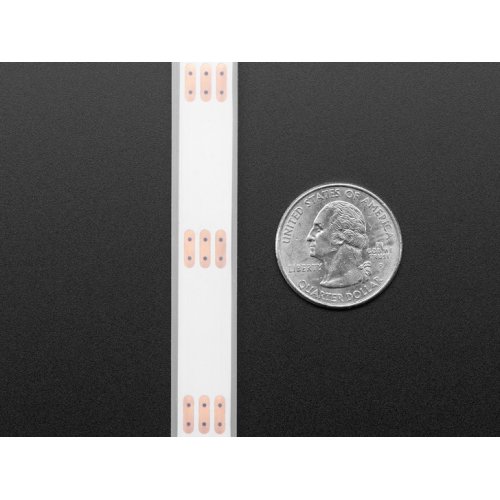

The strip is made of flexible PCB material, and comes with a weatherproof sheathing. You can cut this stuff pretty easily with wire cutters. There are cut-lines every 3cm (1 LED each). Solder to the 0.1" copper pads, and you're good to go.

Comes with a 2-pin JST SM connector on each end.

To wire up these strips we suggest picking up some JST SM plug and receptacle cables. Please note, we try hard to get consistent wiring between batch of strip but we can't guarantee it. Please double check which side is the input and which is the output by looking at the strip for the directional arrows and pin labeling.

You can use these with any 'NeoPixel' or WS2812 driver (FastLED, etc). The R, G and B channels translate to the three individual UV diodes. So we recommend you pretty much just set all three channels to the same value, ranging from (0, 0, 0) to (255, 255, 255) to change the brightness of the three UV LEDs inside each 5mm x 5mm package.

Documents:

Datasheet

Package Includes:

1 x Adafruit 3851 NeoPixel UV LED Strip with 32 LED/m - White PCB - 1M

Adafruit 3851 NeoPixel UV LED Strip with 32 LED/m - White PCB - 1M

Brand: Adafruit
Product Code:Ada-3851-NeoPixel
Reward Points:28
Availability:In Stock

रo 2,693.00
Price in reward points:2841
50 or more रo 2,357.00
60 or more रo 2,347.00

Qty

0 reviews / Write a review
