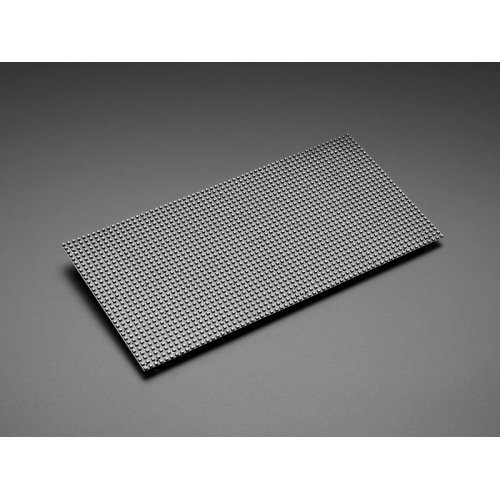

This Adafruit 3826 / 3803 Flexible RGB LED Matrix panel is just like rigid 64x32 style ones, but without the plastic supports. This matrix has a thin, bendable PCB backing that can be gently bent and curved around surfaces.

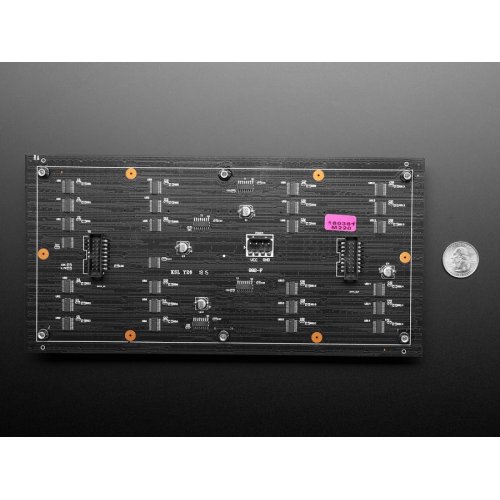

This matrix has 2048 bright RGB LEDs arranged in a 64x32 grid on the front. On the back there are two IDC connectors and 12 16-bit latches that allow you to drive the display with a 1:16 scan rate.
Specifications:
-
Adafruit - 3826 : 4mm
- Product Dimensions: 255.0mm x 128.0mm x 12.5mm / 10.0" x 5.0" x 0.5"
- Product Weight: 69.7g
-
Adafruit - 3803 : 5mm
- LED Pitch: 5mm
- Voltage: 5V
- LED size: 2.1x2.1mm
- MBI5124 Driver ICs
- Compatible with M3 mounting screws
- For indoor use only
- IDC Cable Length; ~170mm
- Power Cable: ~500mm
- Product Dimensions: 320.0mm x 160.0mm x 13.0mm / 12.6" x 6.3" x 0.5"
- Product Weight: 93.0g
Note:
- The back color of the matrix may vary
- Compatible with M3 mounting screws (for Adafruit 3826)
- There may be reworked pixels with flux. We do not guarantee perfectly pristine panels (for Adafruit 3826)
- This product may come with one or two power connections
Package Includes:
- 1 x single 64x32 RGB panel
- 1 x IDC cable
- 1 x plug in power cable
- 1 x mounting screws (only for Adafruit 3826)
Adafruit 3826 / 3803 Flexible RGB LED Matrix - 64x32
- Brand: Adafruit
- Product Code:Ada-3826-3803-LED-Matrix
- Reward Points:51
- Availability:In Stock
-
रo 4,851.00
- Price in reward points:5118
-
- 30 or more रo 4,831.00
- 50 or more रo 4,228.00
