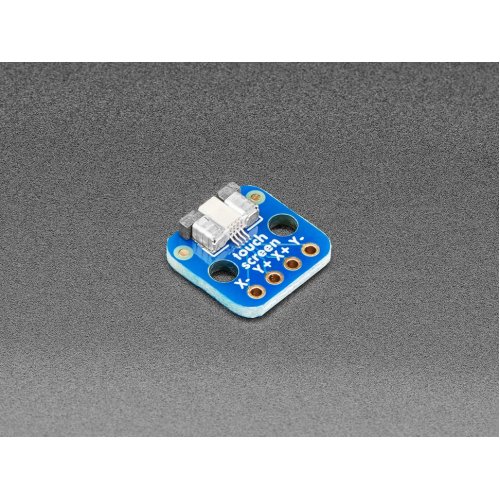

If you've got a resistive touch screen that you'd like to use, you'll need this breakout! It has a fine pitch (0.5mm) connector soldered onto it and it's broken out into the 4 resistive wires of the panel.

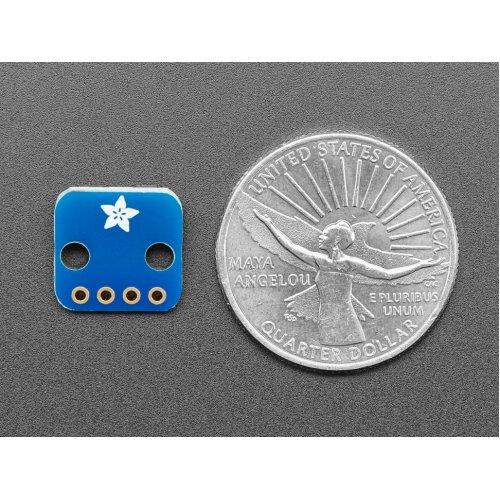

A petite 0.5"x0.5" (12.5mm x 12.5mm) with two mounting holes as well, that you can use for strain relief.

Check out our great example Arduino library code that shows how to get readings, debounce, and read the pressure from any touch screen (so you can detect when it's being touched and how hard) The code is not complex and is easily ported to other microcontrollers.

Technical Details:

Revision History:

As of December 2, 2022 – we've updated this PCB with Adafruit Pinguin to make a lovely and legible silkscreen - you may get the new PCB or the older version with vector fonts - both are identical other than the fancy silkscreen.

Dimensions:

• Length: 12.97mm/0.5in

• Width: 12.97mm/0.5in
• Height: 3.81mm/0.15in

Documentations:

• Fritzing object available in the Adafruit Fritzing Library

• EagleCAD PCB files available on GitHub

• Connector datasheet

Package Includes:

• 1 x Adafruit 334 Touch screen breakout board (0.5mm FPC)
