The NeoPixel is 'split', one half is the RGB you know and love, the other half is a white LED with a yellow phosphor. Unlit, it resembles an egg yolk. Lit up these are insanely bright (like ow my eye hurts) and can be controlled with 8-bit PWM per channel (8 x 4 channels = 32-bit color overall). Great for adding lots of colorful + white dots to your project!

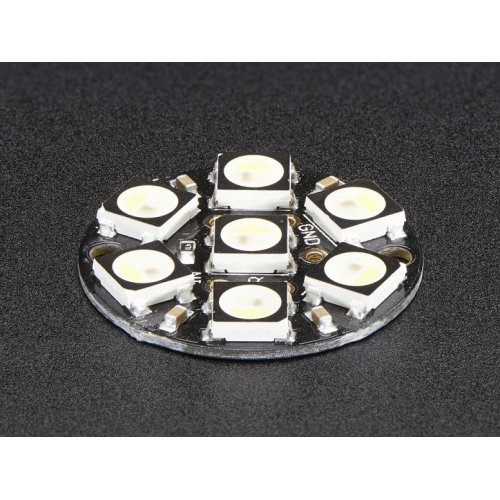

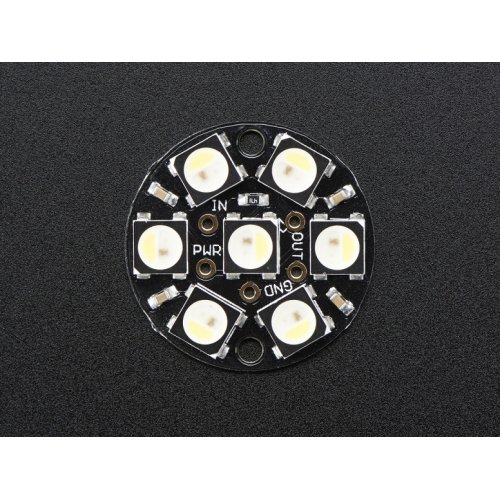

We fit seven of our tiny 5050 (5mm x 5mm) smart RGBW LEDs onto a beautiful, round PCB with mounting holes and a chainable design to create what we think is our most elegant (and evening-wear appropriate) NeoPixel board yet. Use only one microcontroller pin to control as many as you can chain together! Each LED is addressable as the driver chip is inside the LED. Each one has ~18mA constant current drive so the color will be very consistent even if the voltage varies, and no external choke resistors are required making the design slim. Power the whole thing with 5VDC (4-7V works) and you're ready to rock.
Documents:
Warranty : 30 Days
Package Includes:
- 1 x NeoPixel Jewel
Adafruit 2860/2859/2858 NeoPixel Jewel - 7 x 5050 RGBW LED with Integrated Drivers
- Brand: Adafruit
- Product Code:Ada-NeoPixel-Jewel
- Reward Points:8
- Availability:In Stock
-
रo 750.00
- Price in reward points:791
-
- 50 or more रo 657.00
- 200 or more रo 654.00
