• These Panels are waterproof, scratch resistant, and UV resistant. With a high efficiency monocrystalline cell, they output 6V at 180 mA via 3.5mm x 1.1mm DC jack connector. The substrate is an aluminum / plastic composite, specifically designed to be durable and lightweight. They can easily stand up to typical outdoor use including being dropped and leaned on. They're very high quality and are perfect for outdoor projects.

    These also come with 4 plastic mounting screws which makes it easy to attach the panel, even to fabric!

    To connect, we suggest a 3.5mm OD/1.1mm ID DC jack, or you can use handy 2.1mm adapter cable which will turn it into a standard 5.5mm/2.1mm DC plug

    We have a range of solar panels to choose from: Medium 6V 2WLarge 6V 3.4WHuge 6V 5.6W, and Colossal 6V 9W!

    Check out the GitHub page for technical drawings or Voltaic Systems' DIY blog page for inspiration!

  • TECHNICAL DETAILS

    Features

    • Waterproof (IP67)
    • UV resistant (10+ year life)
    • Durable and lightweight
    • High efficiency monocrystalline cells: 19%
    • Embedded screws for easy mounting

    Size and Weight

    • 3.5" x 4.4" x 0.2" (89mm x 113mm x 5mm)
    • 2.4 oz / 67g

    Output

    • Open Circuit Voltage: 7.7V
    • Peak Voltage: 6.5V
    • Peak Current: 180mA
    • Peak Power: 1.2W
    • Power Tolerance: +/-10%
    • For maximum power output, orient the panel towards the sun

    Construction

    • Urethane coating
    • 3mm aluminum-plastic composite substrate

    Mounting

    • Four embedded screws: 4-40 thread, 0.18" long [0.46cm]

    Output Cable

    • Cable Length: 10.2" (26cm)
    • Cable Color: Red PU Coated
    • Plug: Waterproof Male 3.5x1.1mm

    Warranty

    • 2 year warranty on solar panels
    • For more warranty information, see the warranty guide

    Product Dimensions: 113.0mm x 89.0mm x 5.0mm / 4.4" x 3.5" x 0.2"

    Product Weight: 67.0g / 2.4oz



Write a review

Please login or register to review

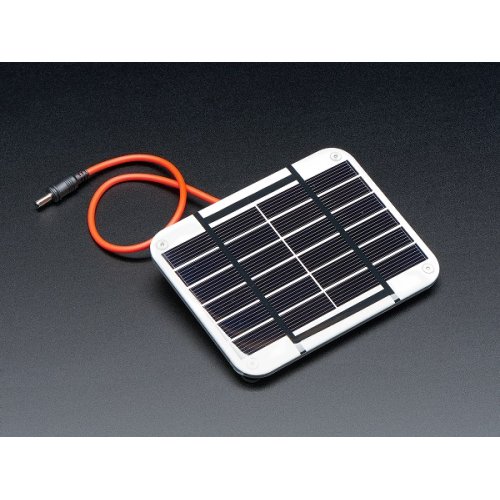

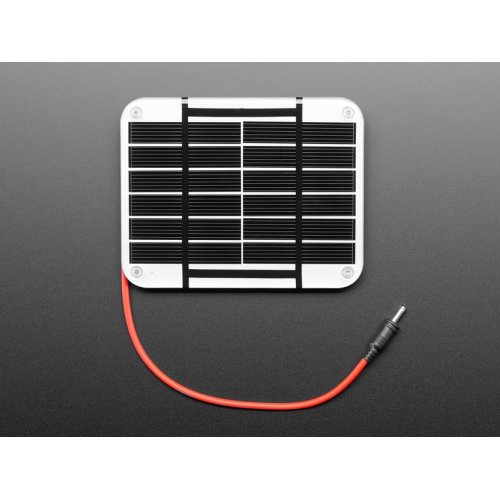

Adafruit 3809 Small 6V 1W Solar Panel - Silver

  • Product Code:Ada-Small-6V-1W-Solar-Panel
  • Reward Points:28
  • Availability:In Stock
  • रo 2,691.00

  • Price in reward points:2839

  • 50 or more रo 2,680.00
