USB Compatible Cable For In-Circuit Configuration And Programming Of All Xilinx Devices.

Overview

The Platform Cable USB a USB compatible cable for in-circuit configuration and programming of all Xilinx devices.

Performance

• Utilizing CY7C68013A+FPGA new hardware solution, compatible with the original XILINX Platform Cable USB and Platform Cable USB II
• Programs all Xilinx devices, including FPGAs / CPLDs / ISP Configuration PROMs
• Supports JTAG, Slave-Serial and SPI programming, to config all Xilinx devices
• Interfaces to devices operating at 5V / 3.3V / 2.5V / 1.8V / 1.5V
• Optional target clock frequency, supports XILINX software automatic frequency adjustment
• Firmware auto upgrade, it's possible to support more new released software and devices
• Anti-static and multi-layers signal isolation, to protect the target and the programmer itself
• Comes with adapter board and multi cables for easily connecting with official development board or other circuit boards

Supported software

• Xilinx ISE
• iMPACT
• ChipScope
• Vivado

Supported devices

• Xilinx FPGA devices: UltraScale / 7 series / Zynq / Kintex / Virtex / Artix / Spartan, etc.
• Xilinx CPLD devices: XC9500 / XC9500XL / XC9500XV / CoolRunner XPLA3 / CoolRunner-II, etc.
• Xilinx PROM devices: Platform Flash XCF00S / XCF00P / XL, etc.

LED Status

• Red: USB connected
• Yellow: USB connected, and Vref (the target board) is powered

How to Connect

Connects to PC

• Wiki

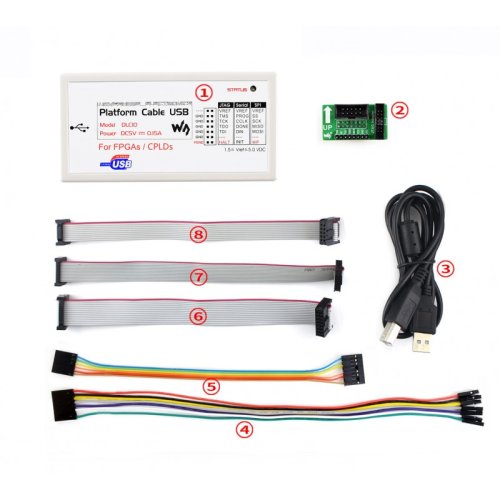

Package Includes :

• 1 x Platform Cable USB main unit
• 1 x JTAG adapter
• 1 x USB cable
• 1 x 8-pin header to 7-pin separated cable
• 1 x 8-pin header to 6-pin header cable
• 1 x 14-pin (2.54mm pitch) JTAG cable
• 1 x 14-pin (2mm pitch) JTAG cable
• 1 x 10-pin (2.54mm pitch) JTAG cable
