ISEEVY H.264 HDMI Video Encoder

H.264 HDMI Video Encoder IPTV Encoder RTMP Live Encoder is a professional HD audio & video encoding device with powerful functionality. It support H.264/MPEG-4 encoding, 4 streaming data, and equipped with 1 HDMI channel input support H.264 high/main/baseline profiles video code format and AAC/MP3 audio code format.

From any HDMI input source, it generates H.264/MPEG-4 encoding streams compliant with SRT/RTMP/RTMPS/RTSP/UDP/HTTP/RTP/HLS/FLV/TS/Multicast/Unicast/ONVIF protocols. Its high initegration and cost-effective design make this device widely applied in IPTV, live stream, broadcast, video conference, remote education, network video record….

Features:

• Max 1080P 60fps video encoding
• H.264 high/main/baseline profile video code
• AAC/MP3 audio compression
• SRT/RTMP/RTMPS/RTSP/UDP/HTTP/RTP/HLS/FLV/TS/Multicast/Unicast/ONVIF protocols
• 4 streams can transmit with different protocols
• 0.16~12Mbps bit rate adjustable
• Low Power consumption, less than 5W
• Low network delay, less than 200ms

Market Coverage

1. IPTV
2. Digital Signage
3. Video Conference
4.  Replace HD Video Capture Card
5. Hotel TV system
6. Live Broadcast
7. Teaching/Campus Broadcast
8. Recording System
9. NVR(Net Video Recorder)

Have been compatible with most of streaming platforms, you can choose any of the popular streaming platforms to go live at any time you like ,such as Ustream, Livestream, Facebook Live, and YouTube Live or even build your own using WOWZA Streaming Server.

The encoder can support multi-stream, up max to dual streams at same time, you can push multi-platform in the meantime.

System Connection

HDMI video encoder connection IPTV encoder application

Specifications:

Video

• Video Input: 1 channel HDMI input, support HDCP
• Resolution: Up max to 1920*1080
• Frame Rate: 60fps
• Video Encoding: H.264 High/Main/Baseline Profile
• Code Bit Rate: 0.16Mbps~12Mbps
• Bit Rate Control: CBR/VBR
• GOP Type: IBBP
• Video Advanced Pretreatment: De-interlacing, Noise Reduction, Sharpening

Audio

• Audio Encoding: AAC,MP3
• Sampling Rate: 32K/48K/64K/96K/128K/160K/192K/256K
• Sampling Accuracy: 24 bits
• Audio Bit Rate: 64Kb/s~384Kb/s

System

• RJ45: 1000 Base-T Ethernet interface
• Protocol : SRT, HTTP, UDP, RTP, RTSP, RTMP, RTMPS, FLV, HLS, TS, Multicast, Unicast, ONVIF protocol
• Configuration Interface: WEB operation interface
• Upgrading: Can be upgraded by Internet

Others

• Dimension (W*L*H): 170*130*30mm
• Temperature: 0~45℃(work), -20~80℃(storage)
• Power: 12V/DC 1A
• Consumption: 5W

Package Includes:

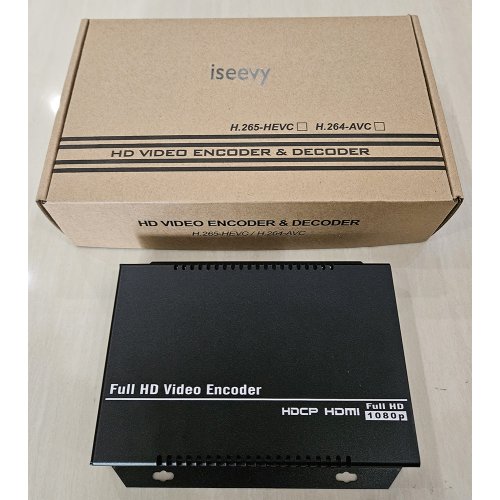

• 1 x ISEEVY H.264 HDMI Encoder
