- 8-inch/10.1-inch IPS screen with a hardware resolution of 1280 x 800.
- 10-point capacitive touch, with tempered glass panel, hardness up to 6H.
- Adopting optical bonding touch technology, the display effect is better.
- Supports Raspberry Pi OS / Ubuntu / Kali and Retropie when used with Raspberry Pi.
- Supports Windows 11 / 10 / 8.1 / 8 / 7 when used as a computer monitor.
- Support multi-language OSD menu (can be used for power control, adjusting brightness/contrast, etc.)
- Support HDMI audio output, onboard 3.5mm headphone jack, and 4PIN speaker jack.
- Size:8/10.1
- Resolution:1280×800
- Display Interface:HDMI
- Display Panel:IPS
- Viewing Angle:178°
- Touch Type:Capacitive
- Touch Points:10-Point
- Touch Port:USB Type-C
- Touch Panel:Toughened Glass
- OSD Menu:Brightness/Contrast
- Audio Output1:3.5mm Jack
- Audio Output2:4PIN Header
- Touch Panel Tech:Optical Bonding
- Weight: 0.406 kg/0.538 kg

- Raspberry Pi
- Supports Raspberry Pi OS, 10-point touch, driver free
- Supports Ubuntu / Kali / WIN10 IoT, single point touch, driver free
- Supports Retropie, driver free
- Jetson Nano
- Supports Ubuntu, single point touch, driver free
- PC
- Supports Windows 11 / 10 / 8.1 / 8 / 7, 10-point touch, driver free

- up to 10-point touch, depending on the operating system
- up to 6H hardness toughened glass panel
- Optical Bonding, display well and dustproof


- 1 x 8DP-CAPLCD/10.1DP-CAPLC
- 1 x HDMI flat cable ~1m
- 1 x USB-A to USB-C cable ~1m
- 1 x Button board
- 1 x Button board cable
- 1 x USB to Type-C adapter (B)
- 1 x USB to Type-C adapter (C)
- 1 x HDMI to Micro HDMI adapter
- 1 x HDMI adapter
- 1 x Screwspack

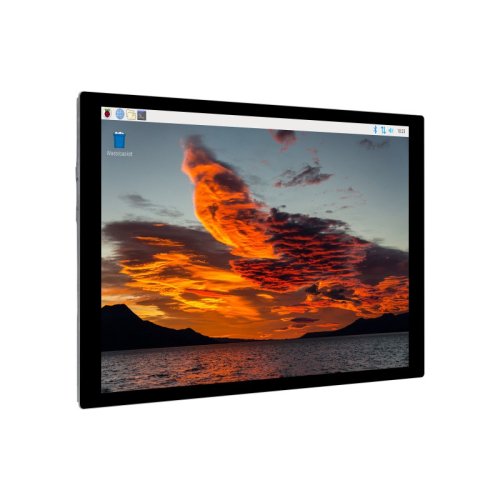

Waveshare 23741 / 23739 8inch/10.1inch Capacitive Touch Display, Optical Bonding Toughened Glass Panel, 1280×800, IPS, HDMI Interface
- Brand: Waveshare Electronics
- Product Code:WaveS-Capacitive-Touch-Display
- Reward Points:76
- Availability:In Stock
- रo 7,618.00
-
रo 6,399.00
- Price in reward points:7618
-
- 2 or more रo 7,557.00
- 4 or more रo 7,496.00
- 10 or more रo 7,435.00
- 20 or more रo 7,374.00
