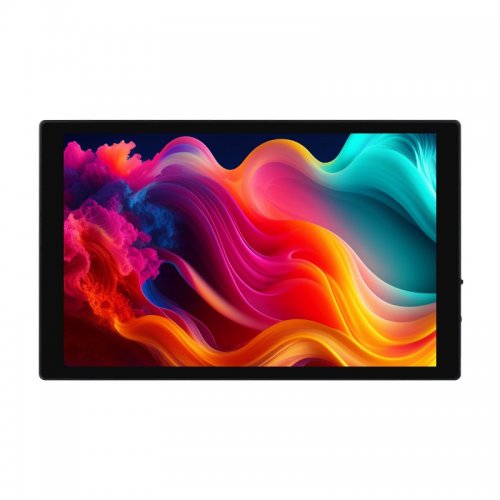

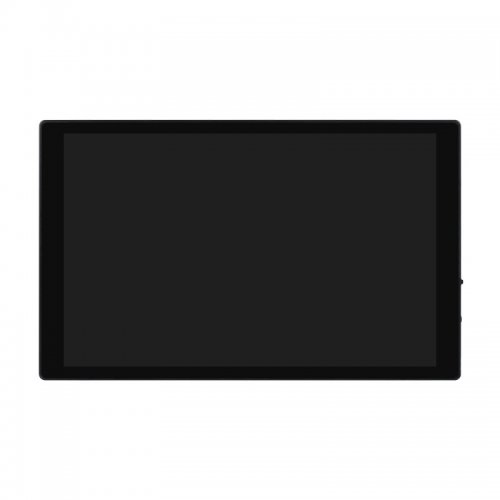

- 8-inch wide-color gamut IPS panel, 1280 x 800 hardware resolution.
- Supports standard HDMI and full-featured Type-C display signals
- 10-point capacitive touch, toughened glass panel with 6H hardness.
- Adopts optical bonding technique for better display.
- Supports Raspberry Pi OS / Ubuntu / Kali and Retropie when used with Raspberry Pi.
- Supports Windows 11 / 10 / 8.1 / 8 / 7 when used as a computer monitor.
- Multi-language OSD menu support (for power control, adjusting brightness/contrast, etc.)
- Supports HDMI/Type-C audio output, onboard 3.5mm headphone jack, and 4PIN speaker jack.
Specifications:
Item | Description | Unit | |||
Model | 8HP-CAPLCD Monitor | / | |||
Size | 8 | Inch | |||
Viewing Angle | 178 | Deg | |||
Resolution | 1280 x 800 | Pixels | |||
Overall Dimension | 196.00(H) × 121.00(V) × 11.6(D) | mm | |||
Display Dimension | 114.66(H) × 184.16(V) | mm | |||
Display Area | 107.64(H) × 172.22(V) | mm | |||
Pixel Pitch | 0.13455(H) x 0.13455(V) | mm | |||
Color Gamut | 82% | NTSC | |||
Max. Brightness | 300 | cd/m² | |||
Contrast | 1200:01:00 | / | |||
Backlight Adjustment | OSD or DDC/CI | / | |||
Refresh Rate | 60 | Hz | |||
Display Interface | Standard HDMI port or full-feature Type-C connector | / | |||
Power Port | 5V Type-C | / | |||
Power Consumption | 4 | Watt | |||
Weight | 623 | g | |||
Electrical Parameters | |||||
Parameter | Min. Value | Standard Value | Max. Value | Unit | Note |
Input Voltage | 4.75 | 5 | 5.25 | V | Note 1 |
Input Current | 750 | 800 | TBD | mA | Note 2 |
Operating Temperature | 0 | 25 | 60 | ℃ | Note 3 |
Storage Temperature | -10 | 25 | 70 | ℃ | Note 3 |
- Note 1: Input voltage exceeding the maximum value or improper operation may cause permanent damage to the device.
- Note 2: The input current should be ≥750mA, otherwise it will lead to start-up failure or abnormal display, and a long time in an abnormal state may cause permanent damage to the device.
- Note 3: Please do not put the display in a high temperature and high humidity storage environment for a long time, the display needs to work within the limit value, otherwise it will be possible to damage the display.
Device & System Support

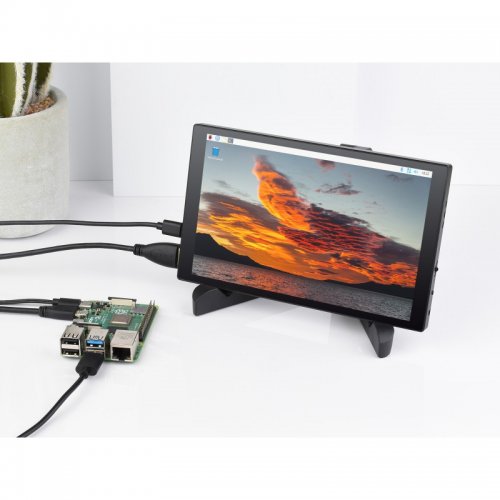

- Raspberry Pi
- Supports Raspberry Pi OS, 10-point touch, driver free
- Supports Ubuntu / Kali/ WIN10 IoT, single point touch, driver free
- Supports Retropie, driver free
- Supports all versions of Raspberry Pi
- Jetson Nano
- Supports Ubuntu, single point touch, driver free
- VisionFive2
- Supports Debian, single point touch, driver free
- PC
- Supports Windows 11 / 10 / 8.1 / 8 / 7, 10-point touch, driver free
- Smartphone
- Huawei, Samsung, OPPO, LG...(wired projection)
IPS Display Panel
- Excellent Display Performance With 178° Wide Viewing Angle
Wide Color Gamut LED Technology
- Wider Color Gamut, More Pure Chroma
- Color Gamut Of This Display Is Up To NTSC 82%, Chroma Increases 58.3%, Makes The Color More Pure, More Vivid
Capacitive 10-Point Touch
- up to 10-point touch, depending on the operating system
- up to 6H hardness toughened glass panel
- Optical Bonding, display well and dustproof
- Supports DDC/CI Brightness Adjustment
Full-Featured Type-C Interface
- Audio And Video Transmission In One Connection, Plug And Play,
- Instantly Zoom In The Smartphone Screen
- (For Supported Mobile Phone Models, Please Contact Customer Service)
Computer Dual Screen For Collaborative Processing
- One Screen For Work, One Screen For Entertainment, Without Interfering With Each Other
Dual-Track Speaker
- Ferrite Hi-Fi Speaker, Larger Volume, Wider Sound Range, Better Sound Quality
Documentations:
Package Includes:
- 1 x 8HP-CAPLCD Monitor
- 1 x HDMI flat cable ~1m
- 1 x HDMI to Micro HDMI Adapter ~1m
- 1 x USB-A to USB-C cable ~1m
- 1 x USB-C to USB-C cable

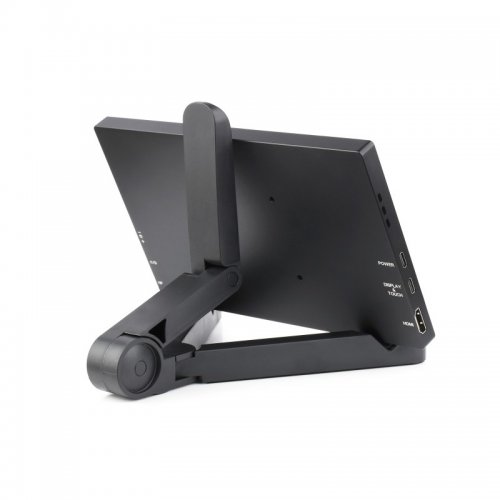

- 1 x Triangular stand
Waveshare 24483 8inch Capacitive Touch Display, Wide Color Gamut, 1280×800, Optical Bonding Toughened Glass Panel, HDMI/Type-C Display Interface
- Brand: Waveshare Electronics
- Product Code:NR-WaveS-8inch-Capacitive-Touch-Display
- Reward Points:94
- Availability:In Stock
- रo 9,449.00
-
रo 7,937.00
- Price in reward points:9449
-
- 2 or more रo 9,374.00
- 3 or more रo 9,298.00
- 8 or more रo 9,222.00
- 10 or more रo 9,010.00
- 15 or more रo 8,936.00
