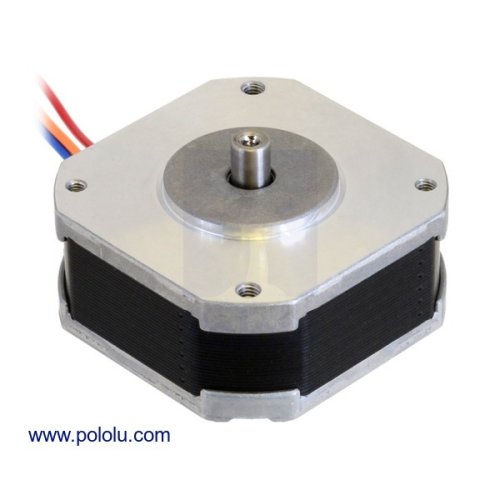

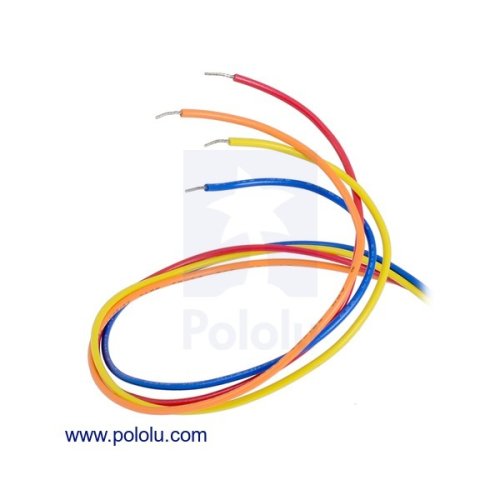

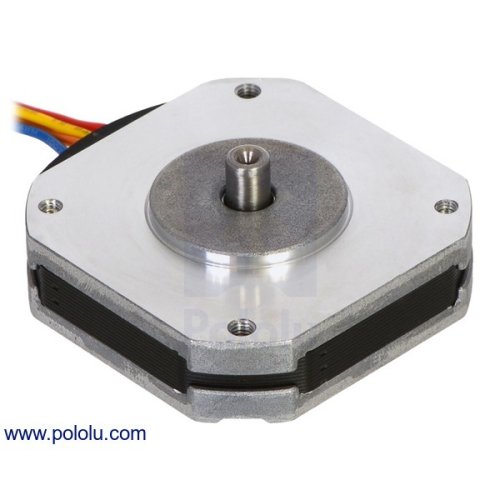

This pancake bipolar stepping motor from Sanyo has a 1.8° step angle (200 steps/revolution). Each phase draws 1 A at 3.5 V / 5.4V, allowing for a holding torque of 850 g-cm (12 oz-in) / 1.9 kg-cm (26 oz-in). The motor has four color-coded wires terminated with bare leads: red and yellow connect to one coil; orange and blue connect to the other. It can be controlled by a pair of suitable H-bridges.

Specifications:

Applications:

Printers
CNC machines
3D printer/prototyping machines (e.g. RepRap)
Laser cutters
Pick and place machines
Linear actuators
Hard drives

Documents:

Warranty:

Warranty will not apply if Product fails or is damaged after delivery to you due to accident, abuse or misuse.

Package Includes:

1 x Pololu 2298 / 2296 NEMA 17 Sanyo Pancake Stepper Motor: Bipolar, 200 Steps/Rev

Motor Specifications
Type	NEMA 17 Sanyo Pancake Stepper Motor: Bipolar
Torque	2298-850 g-cm (12 oz-in), 2296-1.9 kg-cm (26 oz-in)
Step Size	1.8° step angle
Shaft Diameter	5mm
Steps per revolution	200
Electrical Specifications
Maximum Operating Voltage	2298-3.5V, 2296-5.4V
Resistance	2298-3.5 Ω per coil, 2296-5.4 Ω per coil
Inductance	2298-1.2 mH per coil, 2296-2.9 mH per coil
Physical Attributes
Weight	2298-70g, 2296-140g
Dimensions	2298-42 mm square × 11.6 mm, not including the shaft (NEMA 17), 2296-42 mm square × 18.6 mm, not including the shaft (NEMA 17)
Length	Lead Length-30 cm (12″)
