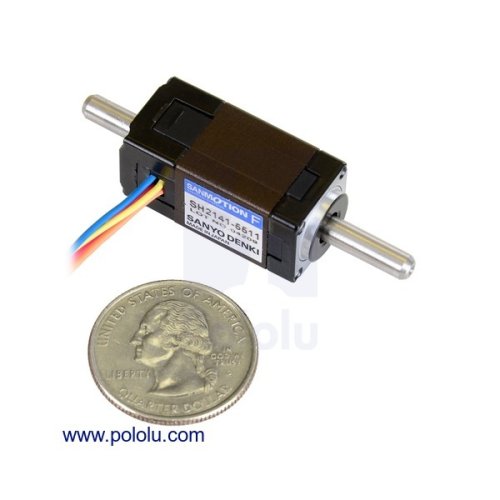

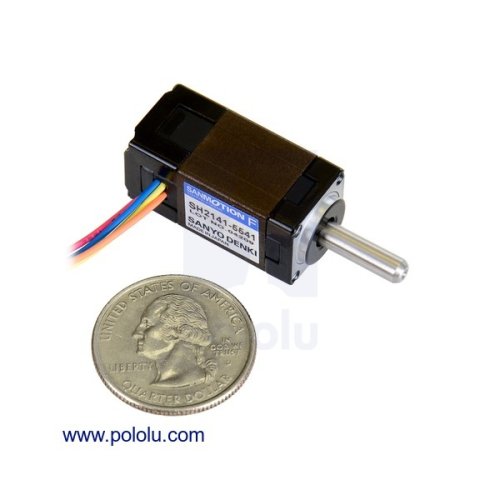

This tiny bipolar stepping motor from Sanyo has a 1.8° step angle (200 steps/revolution) and is available with a single shaft or double shaft. Each phase draws 300 mA at 6.3 V, allowing for a holding torque of 66 g-cm (0.92 oz-in). The motor has four color-coded wires terminated with bare leads: red and yellow connect to one coil; orange and blue connect to the other. It can be controlled by a pair of suitable H-bridges (one for each coil).

Specifications:

Size: 14 mm square × 30 mm, not including the shaft
Weight: 27 g (single shaft) or 28 g (double shaft)
Shaft diameter: 4 mm
Steps per revolution: 200
Current rating: 300 mA per coil
Voltage rating: 6.3 V
Resistance: 21 Ω per coil
Holding torque: 66 g-cm (0.92 oz-in)
Inductance: 4.2 mH per coil
Lead length: 30 cm (12″)
Output shaft supported by two ball bearings

Applications:

Printers
CNC machines
3D printer/prototyping machines (e.g. RepRap)
Laser cutters
Pick and place machines
Linear actuators
Hard drives

Documents:

Datasheet

Warranty:

Warranty will not apply if Product fails or is damaged after delivery to you due to accident, abuse or misuse.

Package Includes:

1 x Pololu 2294 / 2295 Sanyo Miniature Stepper Motor: Bipolar, 200 Steps/Rev

Motor Specifications
Type	Miniature Stepper Motor: Bipolar
Torque	66 g-cm (0.92 oz-in)
Shaft Diameter	4 mm
Steps per revolution	200
Electrical Specifications
Maximum Operating Voltage	6.3V
Maximum Operating Current	300 mA per coil
Resistance	21 Ω per coil
Inductance	4.2 mH per coil
Physical Attributes
Weight	27 g (single shaft) or 28 g (double shaft)
Length	Lead Length-30 cm (12″)
Additional Information
Warranty

Pololu 2294 / 2295 Sanyo Miniature Stepper Motor: Bipolar, 200 Steps/Rev

Brand: Pololu
Product Code:Pololu-2294-95-Stepper-Motor
Reward Points:141
Availability:In Stock

रo 14,021.00
Price in reward points:14134
2 or more रo 13,908.00
4 or more रo 13,795.00
10 or more रo 13,682.00

Available Options

Motor Type

8) Non-Extended Motor shaft

9) Extended Motor shaft
