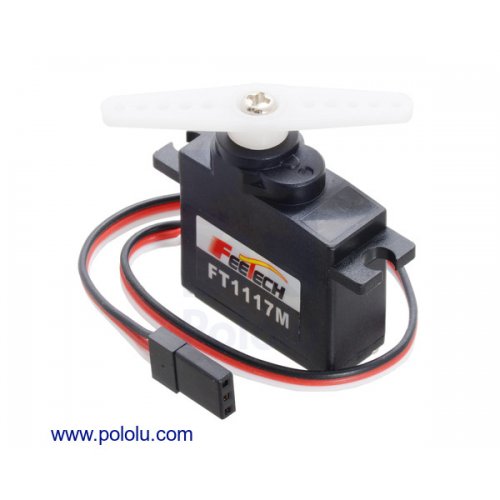

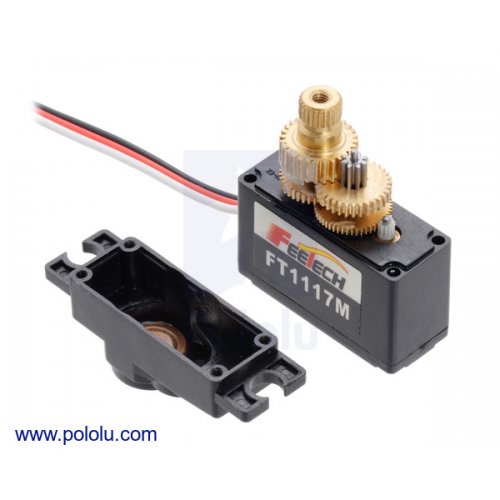

The FT1117M is a miniature-sized servo from FEETECH with the same output spline as standard servos, making it compatible with standard-size servo horns. The pinion gear is plastic, but the rest of the gear train consists of all metal gears, allowing this servo to deliver the kind of speed and torque typically associated with larger servos.

The FT1117M works with standard RC servo pulses, offering position control over an approximate 120° operating angle for servo pulses between 900 µs to 2100 µs. As with most servos, the pulse range can be expanded to achieve an expanded operating angle, but the limits of this are not specified by FEETECH.

Specifications:

• Digital?: N
• Speed @ 6V: 0.11 sec/60°
• Stall torque @ 6V: 3.5 kg·cm
• Speed @ 4.8V: 0.13 sec/60°
• Stall torque @ 4.8V: 3 kg·cm

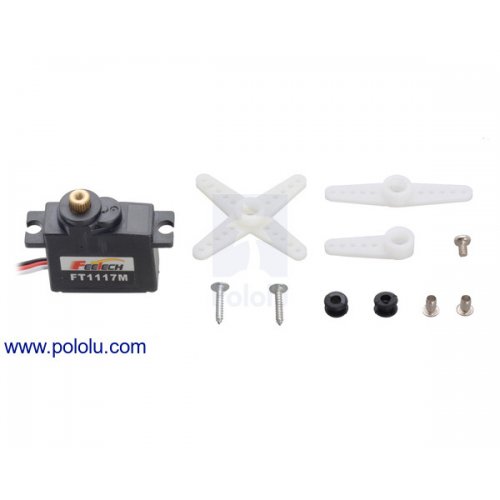

• Hardware included?: Y
• Lead length: 7 in

Documents:

• Datasheet

Warranty:

• Warranty will not apply if Product fails or is damaged after delivery to you due to accident, abuse or misuse.

Package Includes:

• 1 x Pololu 3423 FEETECH Mini Servo FT1117M
